Additional settings as well as features and what you need to know about the RFC 4072S
108580_en_02 PHOENIX CONTACT 165 / 272

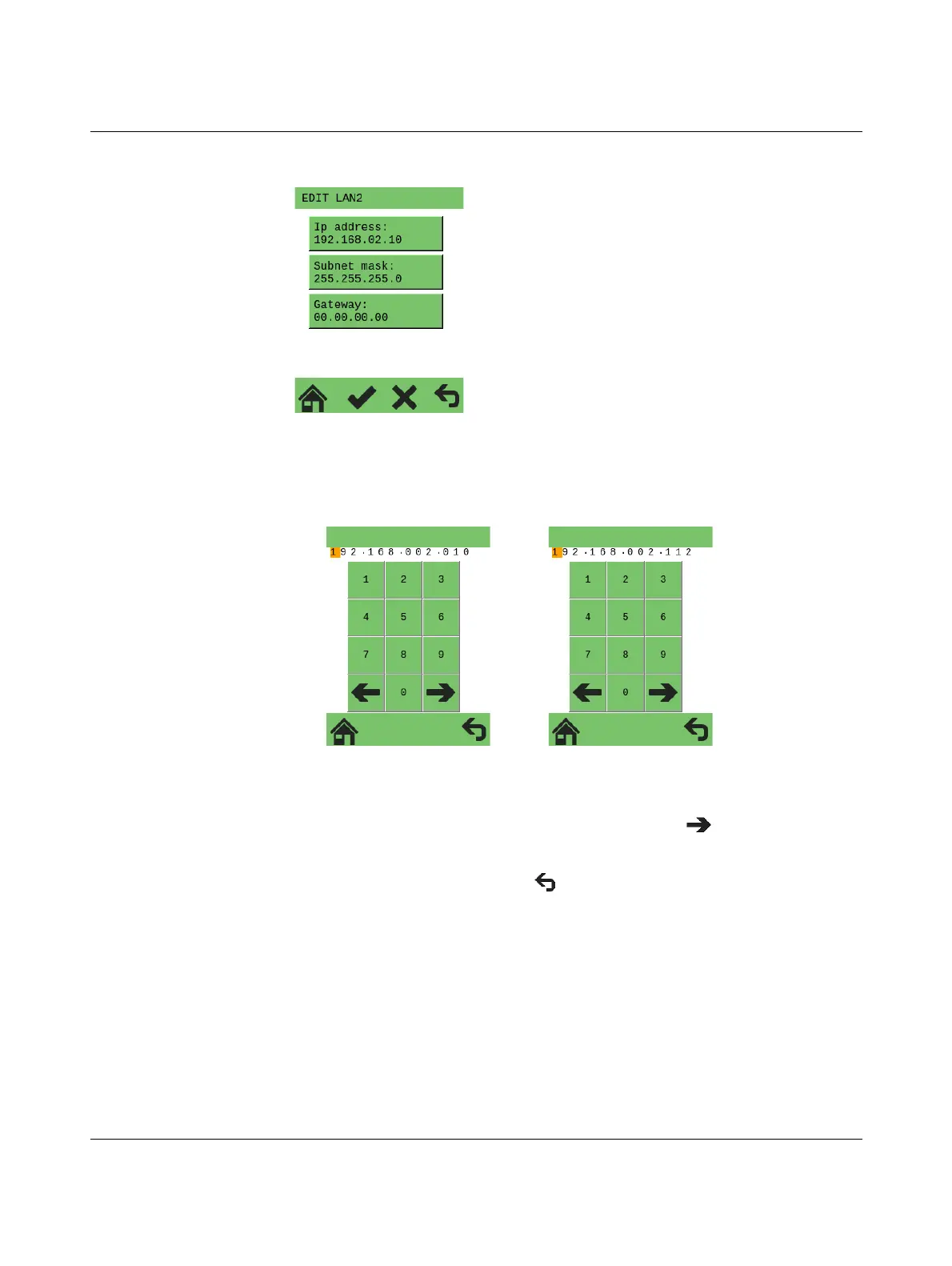

The following menu shows the default IP-settings of the LAN2 interface:
Figure 7-3 “CONFIG DETAILS, … EDIT LAN2” menu: default settings
• Select the “IP address: …” menu item.
The following menu appears (A):
Figure 7-4 “CONFIG DETAILS, … EDIT LAN2” menu: edit LAN2 IP address
• Set the IP address “192.168.2.112” shown in Figure 7-4 (B).
• Change the number position in the IP address by tapping .
• Select the corresponding numbers by tapping on the numbers.
• Exit the entry window by tapping .
