LIFEPAK 20/20e Defibrillator/Monitor Replacement Procedures

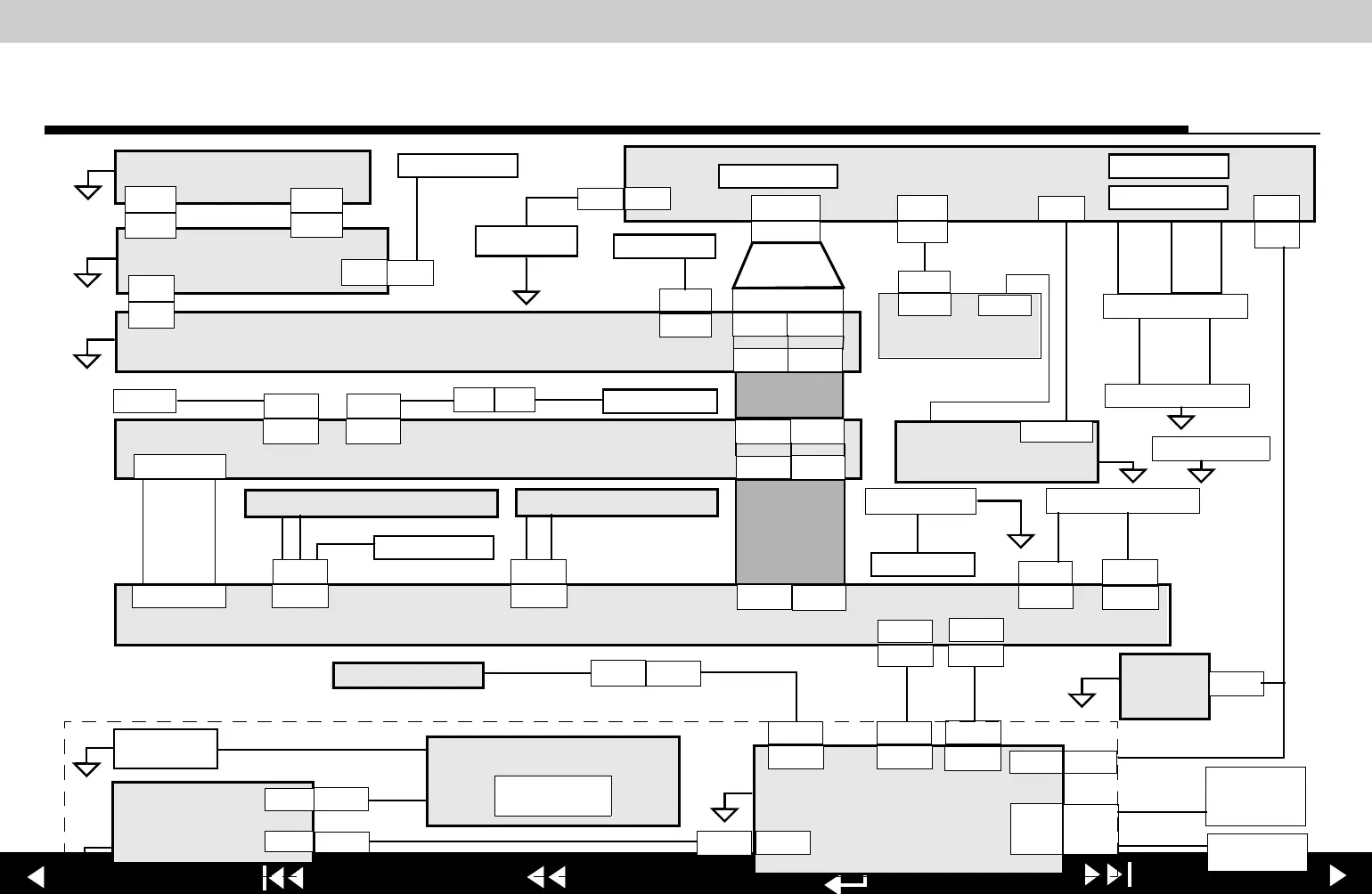

Interconnect Diagram
A08 Backlight
Inverter PCB
A10 SpO2 PCB
A06 OEM PCB
A02 Patient Parameter PCB
A01 System PCB
A04 Therapy PCB
A19 EMI Line Filter
A03 Power Module
A13 Energy Capacitor
A14 Inductor/Resistor
A12
Printer
A11 LCD Display PCB
W08
LP20e
W09
W10
LP20e
W11
W14
W01
W23
W24
W22
W21
W20
W15
W17
W18
UI Flex
W06
W03
W25
W02
W19
W12
W04
W05
A09 AC Power
Supply
A05 User Interface PCB
A07 Battery
J03
J52
J01
J53
P24
J24
J54
P54
J32
P32
J31
J37
J36
J34
P34
P37
P23
J23
J21 J22
P31
P21
J01
J02
J02
J01
J11
J12
J01
P01P02
J02
J15
J03
J08
P08
P05
J05
P06
P07
IrDA
P03
ECG
8-Pin
Conn.
J21
J22
P14
J14
P13
J13
J17
P17
P16
J16
J45
J47
P47
P45
J50
P50
P85
J85
J01
P61
P62
J02
J46
AC Power
P49
P41
P51
P70
P74
PCB Shield
Display Bracket
Printer Shroud
J81 Therapy
Power Bracket
Heatsink
PCB Bracket
Cap Discharge
J80
Gnd Stud
J48
RS-232
J49
Sync in
ECG out
W13
LP20e
J2
CN101
Speaker
J83 SpO2
Speed Dial
J82 ECG
J33 Test
J39 Test
J38 Test
W07
J1
J51
J41
J49
9-20
