LIFEPAK 20/20e Defibrillator/Monitor Replacement Procedures
Front Case

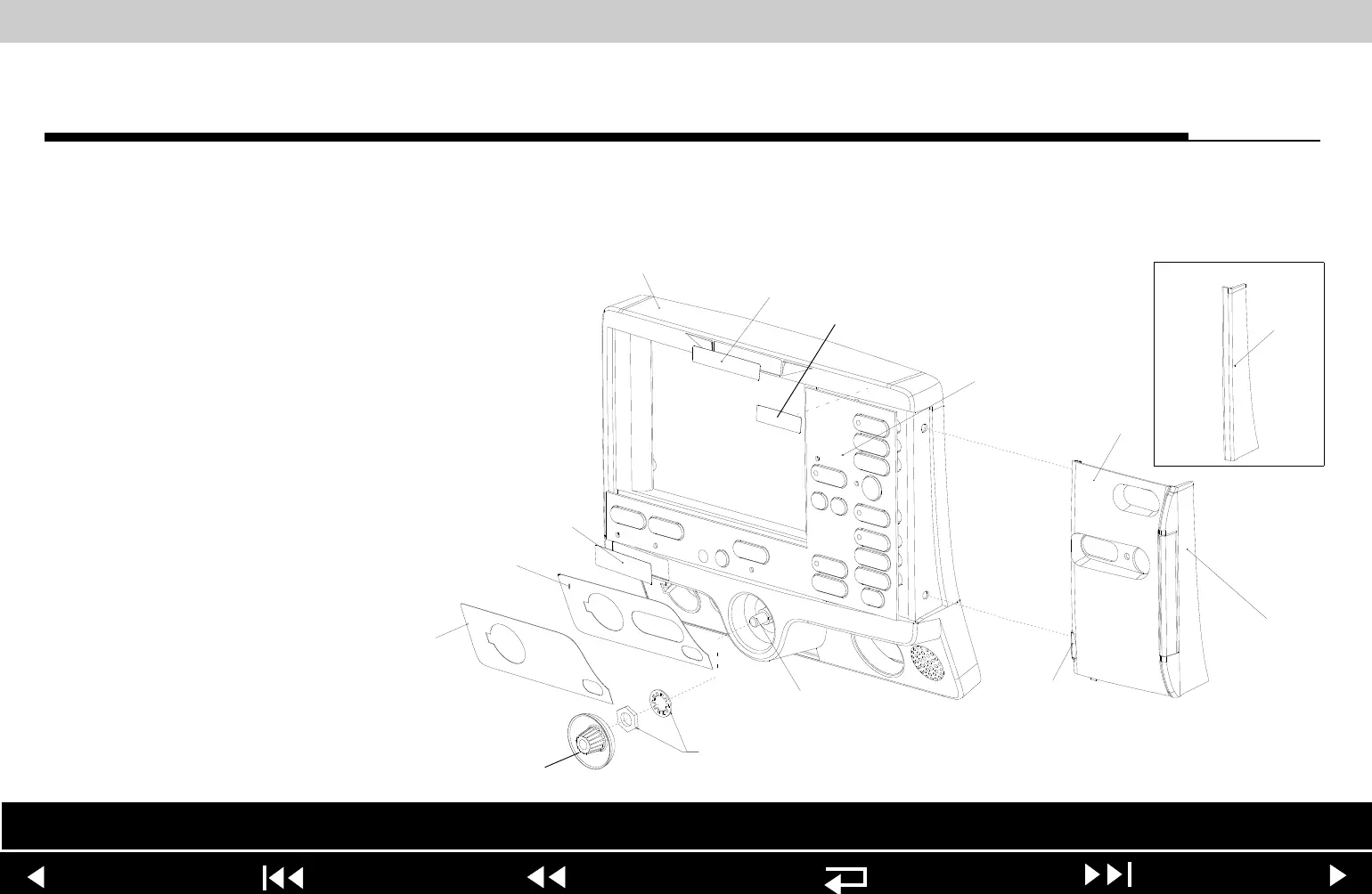

Assembly Diagram
(Front View)
Parts A05–W18 Parts 9–47 Parts 161–284 Rear View Main Assemblies
9
12-D
A15
W04
17
12-B
12-C
37
199
23
Hardware supplied
with item W04
19
without door option
Front Case Removal (9)
Front Case Installation (9)
AED Door Replacement
(199)
W04 Speed Dial Assembly
Removal
W04 Speed Dial Assembly
Installation
A15 Elastomer Keypad
Removal
A15 Elastomer Keypad
Installation
12-B
no SpO2
w/ SpO2
284
9-25
