LIFEPAK 20/20e Defibrillator/Monitor Replacement Procedures
Front Case (continued)
W02 Speaker Assembly
Installation
To install the W02 Speaker Assembly:

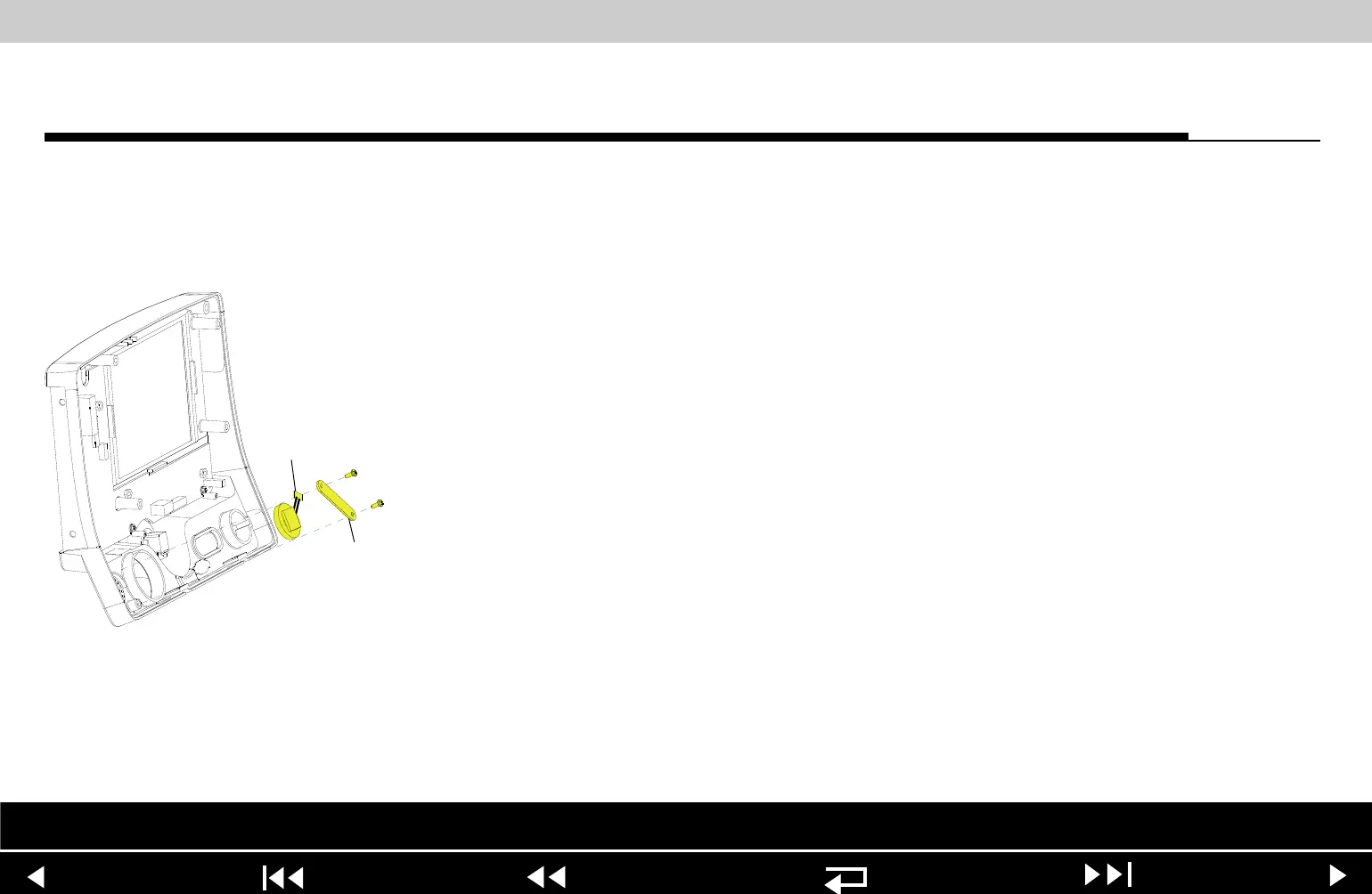

1. Fit the W02 Speaker Assembly into the front case and position the cable at
the 2:00 position.
2. Place the speaker mounting bracket (41) over the foam spacer and install
two new 4-40  0.312 screws (173); torque to 6.8 in-lb.
3. Connect the speaker cable to the W25 Speaker Harness Extension Cable
connector.
4. Complete the process by Installing the front case.
