LIFEPAK 20/20e Defibrillator/Monitor Replacement Procedures
Front Case (continued)
W18 UI Flex Cable
Installation
To install the W18 UI Flex Cable:
1. With the front case pulled slightly forward and away from the boardstack
assembly, connect the W18 UI Flex Cable to the A05 UI PCB at J31.
Note: Avoid bending the W18 UI Flex Cable during installation. Excessive
bending can damage wires and connectors.
2. Carefully connect the W18 UI Flex Cable to the A02 PP PCB at J21 and J22,
ensuring that the pins connect with the connectors evenly to avoid possible
pin damage.

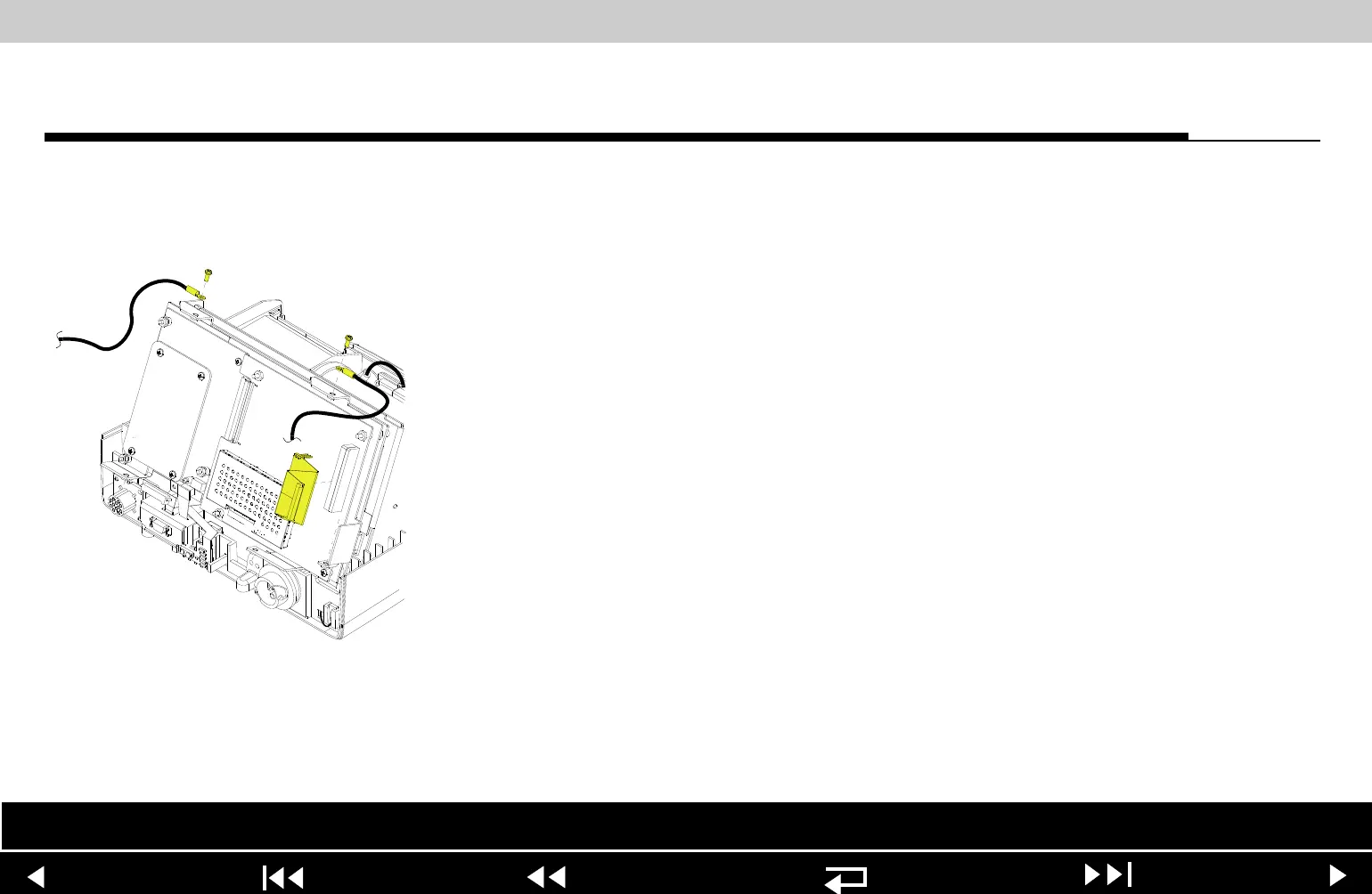

3. Connect the two grounding straps (219) by connecting the top of the front
case to the system shield, using the two screws (173); torque to 6.8 in-lb.
Note: Observe the positioning of the grounding harnesses. If they are
not reinstalled at the correct angles, the front case will not join with the rest of
the device correctly.
4. Reassemble the top case.
Parts List Interconnect Front Case View Rear View Main Assemblies
9-41
