LIFEPAK 20/20e Defibrillator/Monitor Replacement Procedures
Final Assembly (continued)

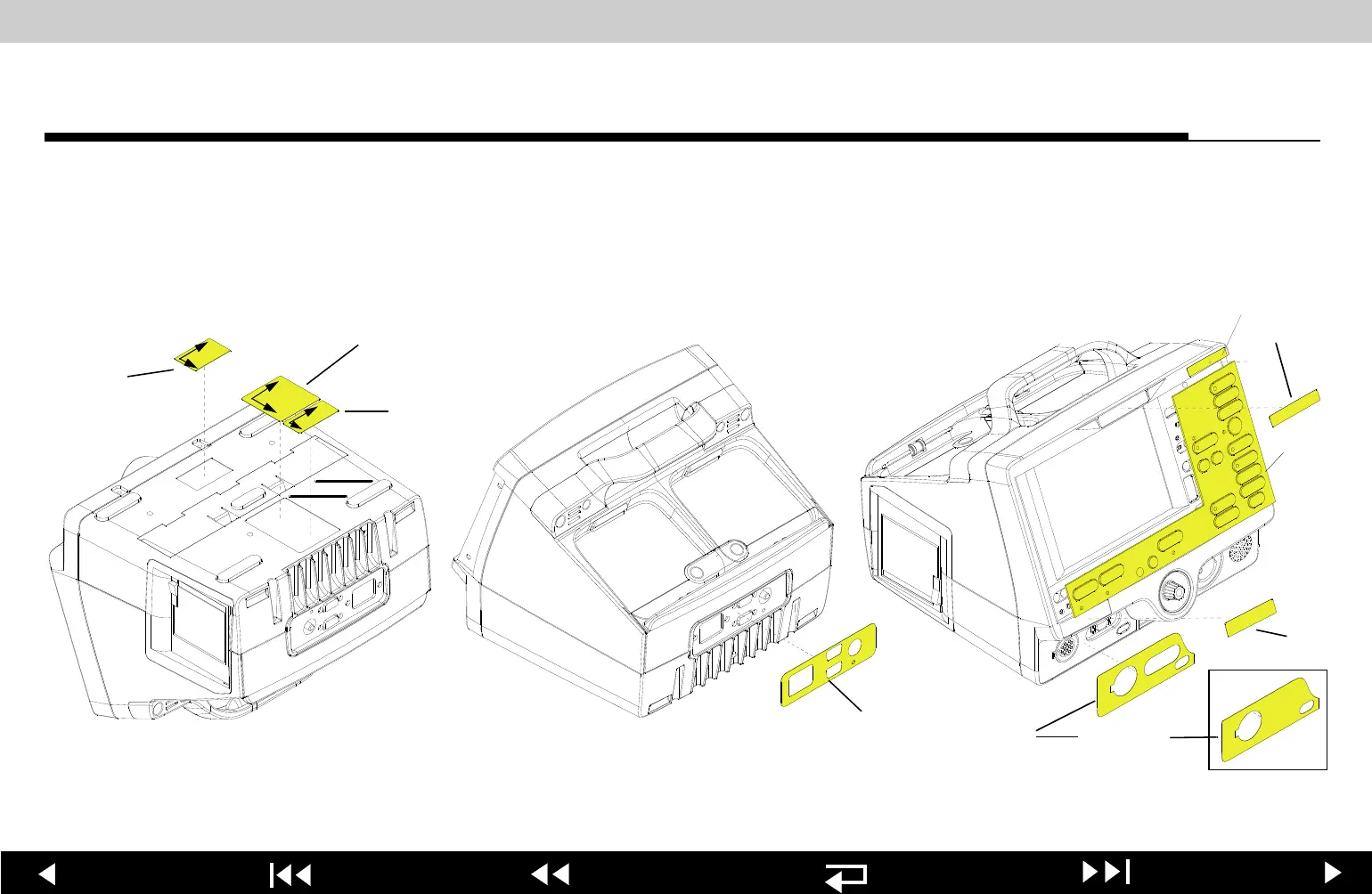

Label Placement
Diagrams
Refer to the parts list for label description.
12-E
183
12-F
12-A
12-B
12-C
12-D
Bottom view Rear view Front view
(No SpO2)
284
A15
9-153
