LIFEPAK 20/20e Defibrillator/Monitor Replacement Procedures
Bottom Case (continued)
W01 Therapy
Connector Removal
Note: The following assemblies must be removed before beginning this
disassembly:
– A07 Battery
– Top case
– Front case
– Boardstack

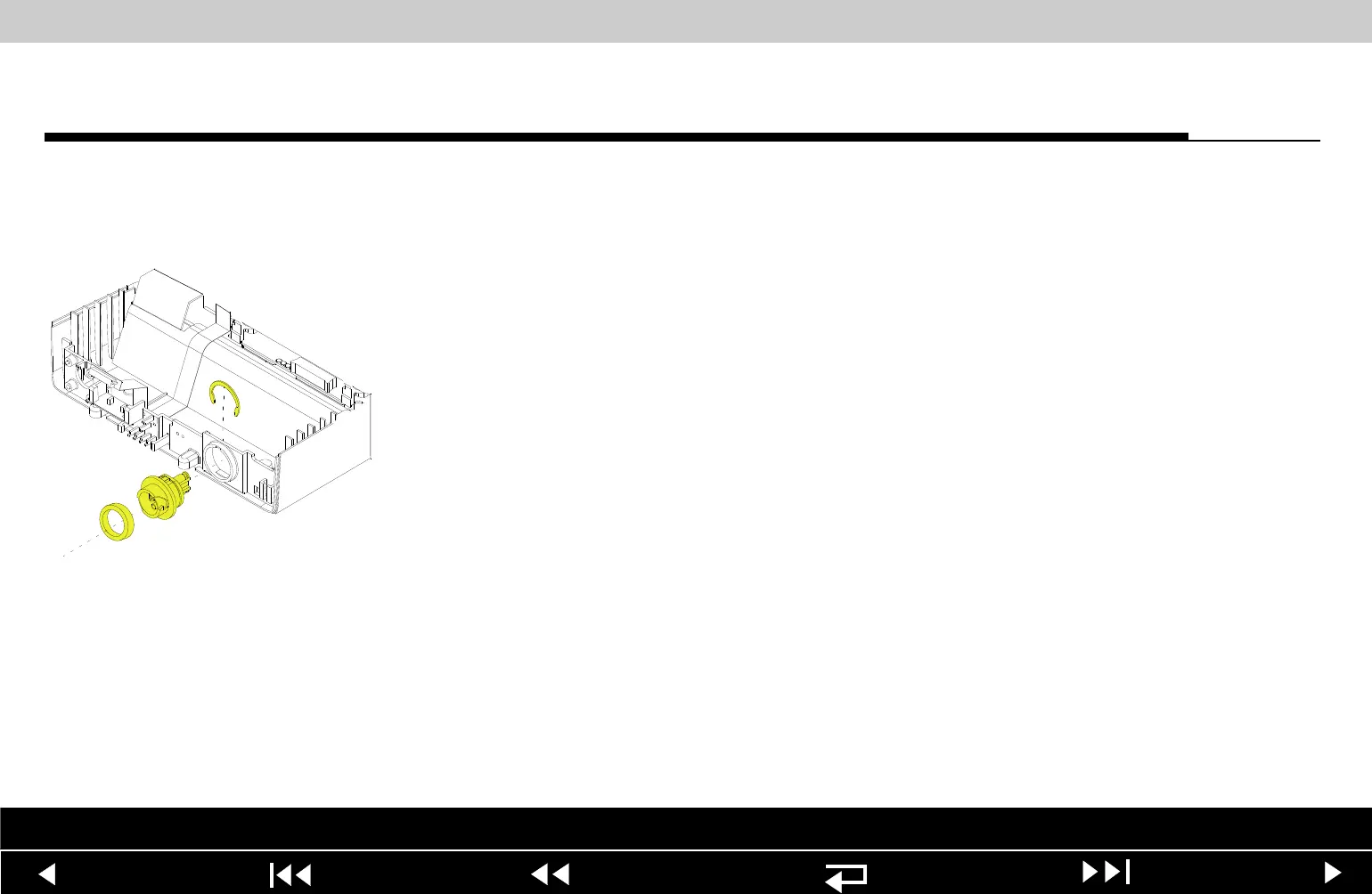

To remove the W01 Therapy Connector Assembly:
1. Remove the Therapy Connector Seal (268) from the W01 Therapy
Connector.
2. Remove the retaining ring (111) from the back of the W01 Therapy
Connector.
3. From outside the case, remove the therapy connector from the bottom case
and feed the therapy cable through the connector hole.
