LIFEPAK 20/20e Defibrillator/Monitor Replacement Procedures
Front Case (continued)
W04 Speed Dial
Assembly Removal
Note: Remove the following assemblies before beginning this disassembly:
– Top case
– Front case

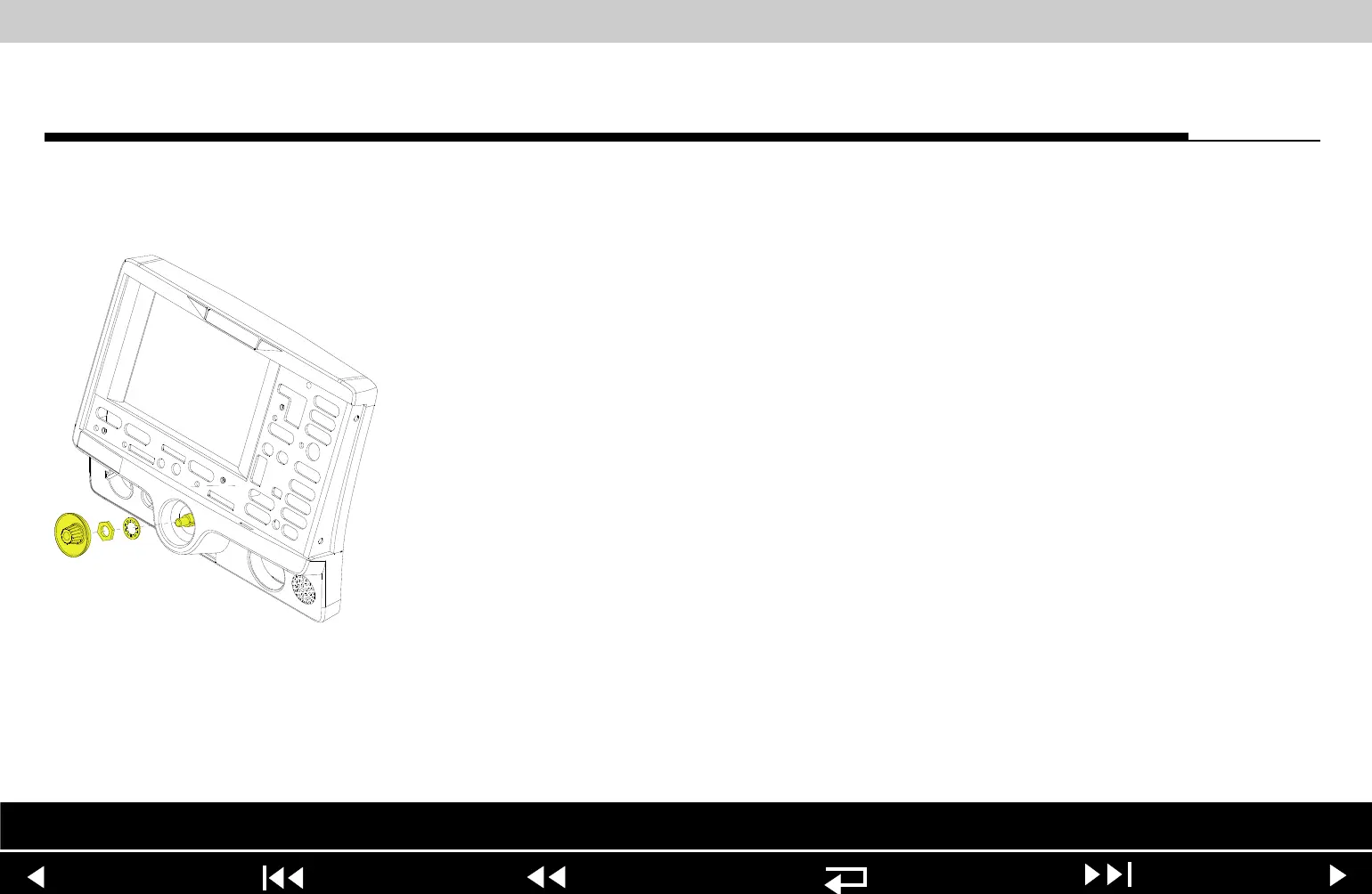

To remove the W04 Speed Dial Assembly:
1. Disconnect the W04 Speed Dial connector from the A05 UI PCB at J32.
2. Turn the front case over and remove the Speed Dial knob (17).
3. Loosen and remove the nut from the Speed Dial axle.
4. Remove the washer from the Speed Dial axle.
5. From inside the case, pull the W04 Speed Dial Assembly out of the front
case.
6. Remove the grounding harness (250) from the Speed Dial axle.
Parts List Interconnect Front Case View Rear View Main Assemblies
9-57
