LIFEPAK 20/20e Defibrillator/Monitor Replacement Procedures
Bottom Case (continued)
W25 Speaker Harness
Extension Cable
Removal
Note: The following assemblies must be removed before beginning this
disassembly:
– A07 Battery
– Top case
– Front case
– Boardstack
Note: To remove the W25 Speaker Harness Extension Cable:
1. Disconnect the W25 Speaker Harness Extension Cable from the W02
Speaker Assembly (part of front case removal).
2. Disconnect the other end of the W25 Speaker Harness Extension Cable
from the A01 System PCB at J5 (part of boardstack removal).

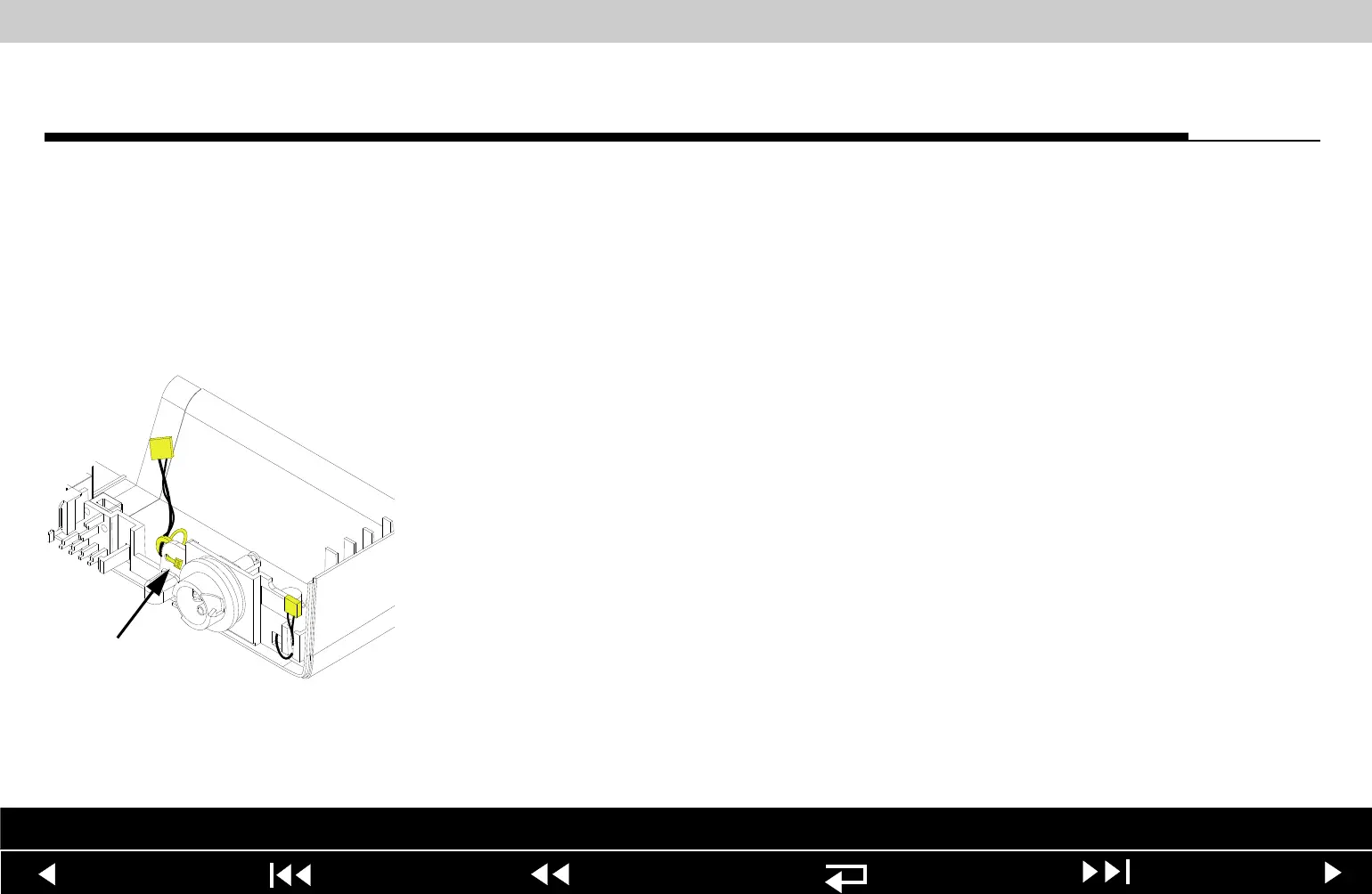

3. Cut the cable tie retainer (229) securing the ferrite ring to the bottom case.
4. Remove the connector from the holder and feed the W25 Speaker Harness
Extension Cable under the W01 Therapy Connector Assembly. Remove the
cable from the bottom case.
Parts List Interconnect Diagram Module View Connectors View Main Assemblies
