LIFEPAK 20/20e Defibrillator/Monitor Replacement Procedures
Bottom Case (continued)
W06 ECG Connector
Removal
Note: The following assemblies must be removed before beginning this
disassembly:
– A07 Battery
– Top case
– Front case
– Boardstack

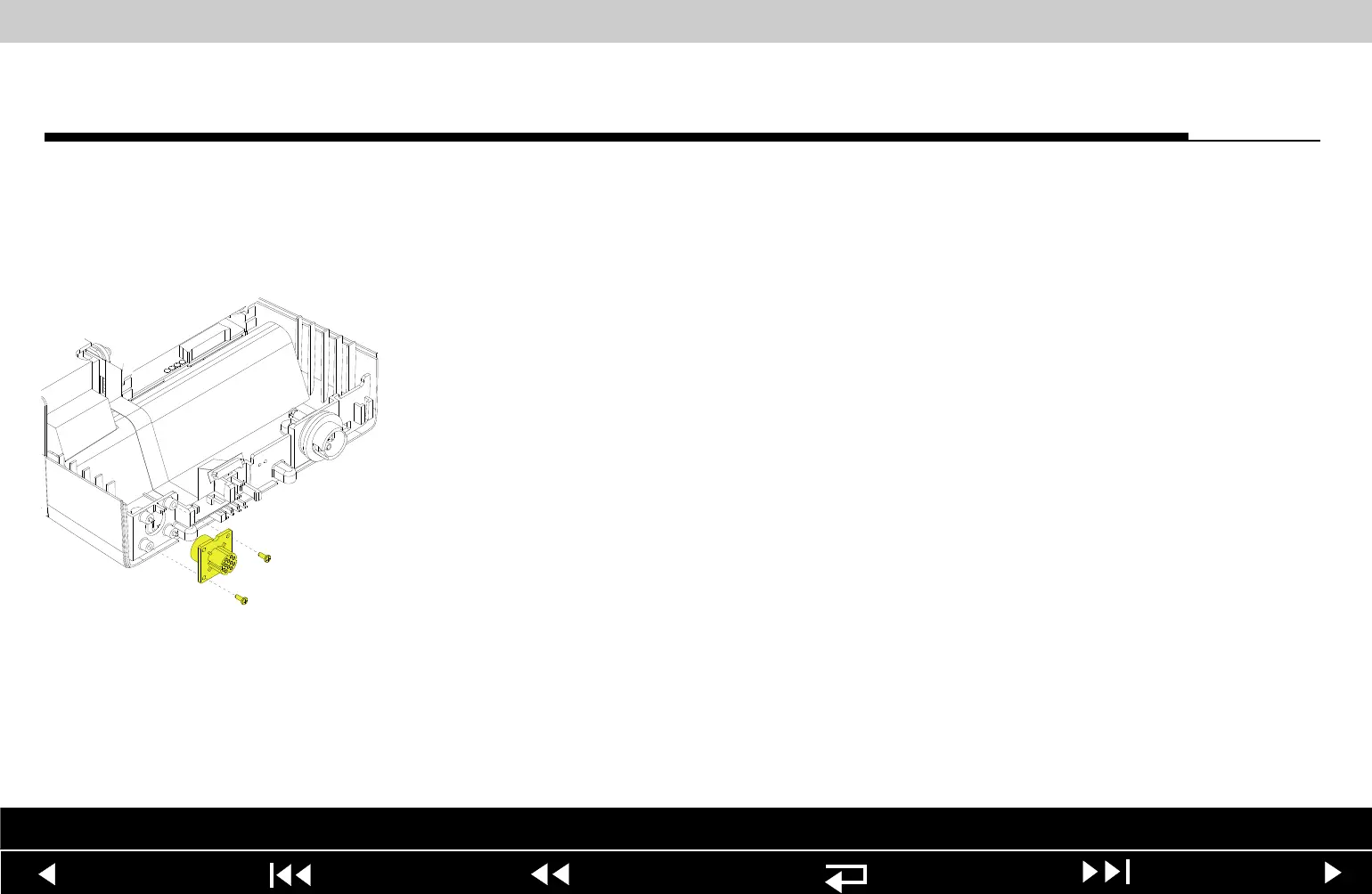

To remove the W06 ECG Connector:
1. Remove and discard the two 4-400.312 screws (173) from the W06 ECG
Connector located on the bottom case assembly.
2. From outside the case, remove the W06 ECG Connector from the bottom
case and feed the ECG cable through the connector hole.
