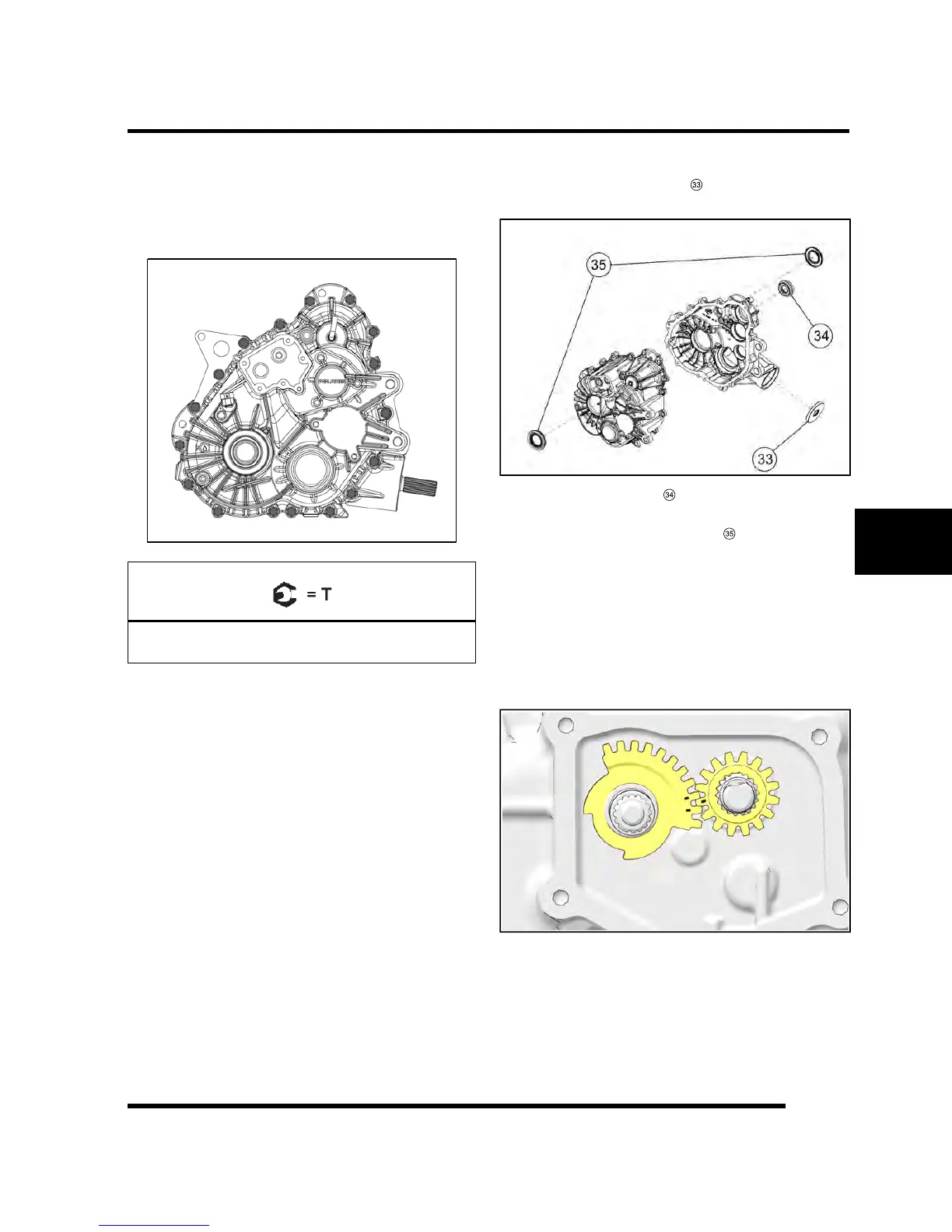

23.Apply a continuous bead of Crankcase 3 Bond
Sealant (PN 2871557) to left-hand transmission
mating surface.
24.Install the transmission case cover and retaining
bolts. Torque bolts to specification.
Transmission Case Bolts:
20 ft-lbs (27 Nm)
25.Install new seals into the transmission case halves.
• The snorkel shaft seal
, should be pressed in
until it seats against the housing counter-bore.
• The input shaft seal
, should be pressed in until it
seats flush with the housing.
• The rear output shaft seals
, can be installed
using a standard bushing installation tool. Seals
should be installed just past the case lead-in
chamfer (0.070" or 1.8 mm from outer face of
bore).
26.Thoroughly clean the shift shaft housing.
27.Install the sector gear (16T) onto the shift drum shaft.
Install the shift shaft assembly and sector gear (11T)
into the bushing pocket on the left side. Align the
timing marks on the gears as shown.
28.Install the spacer and then the detent star onto the
shift drum shaft. Be sure to install the detent star with
the raised edge facing outward and skip-tooth
aligned.
