STEERING ASSEMBLY (NON-EPS)

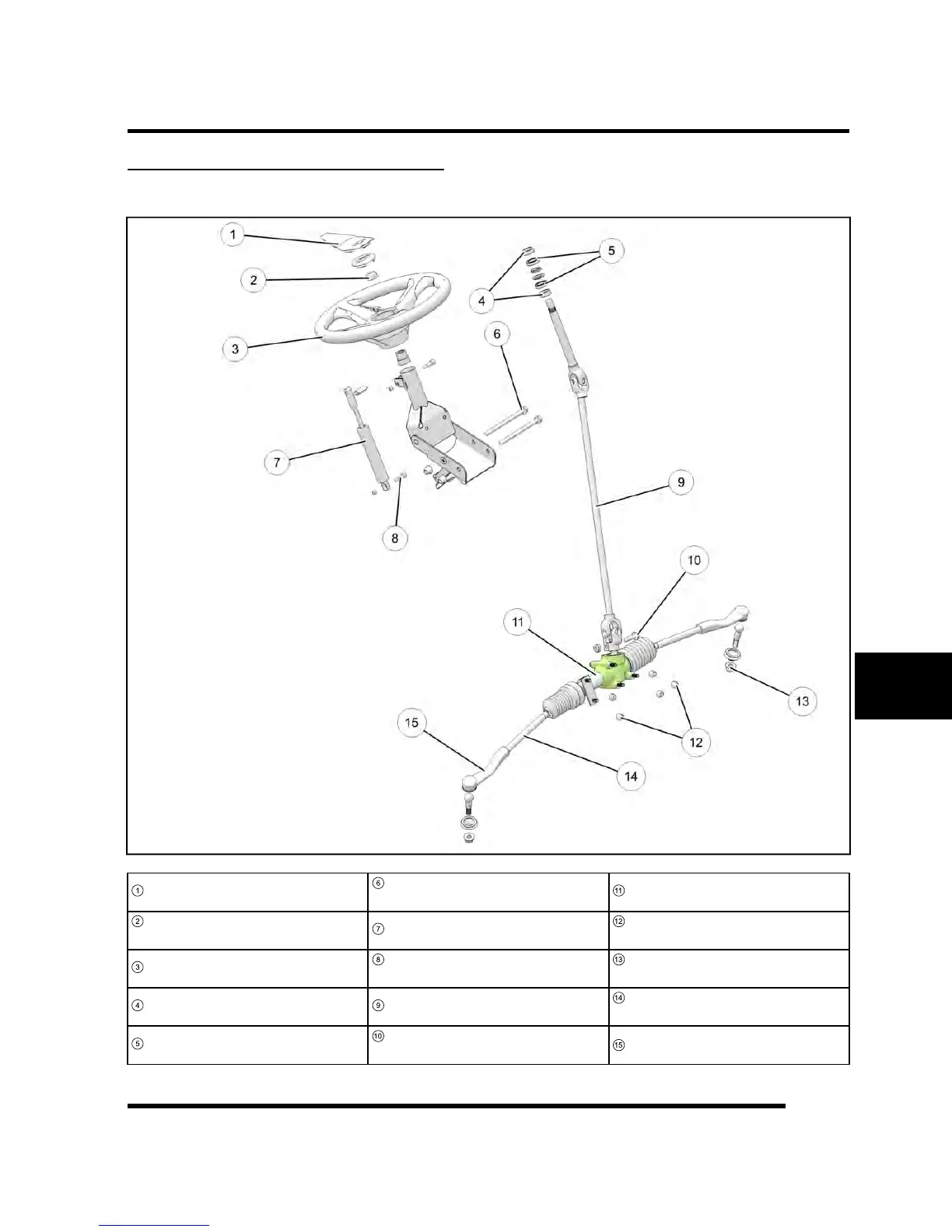

Steering Assembly View
1
Steering Wheel Cover
6
Steering Pivot Fasteners
40 ft-lb (54 Nm)
11
Steering Rack
2
Steering Wheel Nut
65 ft-lbs (88 Nm)
7
Tilt Steering Shock
12
Rack Mounting Fasteners
16 ft-lbs (22 Nm)
3
Steering Wheel
8
Tilt Shock Fasteners
7 ft-lb (10 Nm)
13
Tie Rod End Nuts
30 ft-lbs (41 Nm) + 90°
4
Bushing
9
Steering Shaft
14
Tie Rod Jam Nut
14 ft-lbs (19 Nm)
5
Bearing
10
Shaft to Rack Fasteners
48 ft-lb (65 Nm)
15
Tie Rod End
