8.36
9925723 R01 - 2015 RZR 900 Service Manual
© Copyright 2014 Polaris Industries Inc.

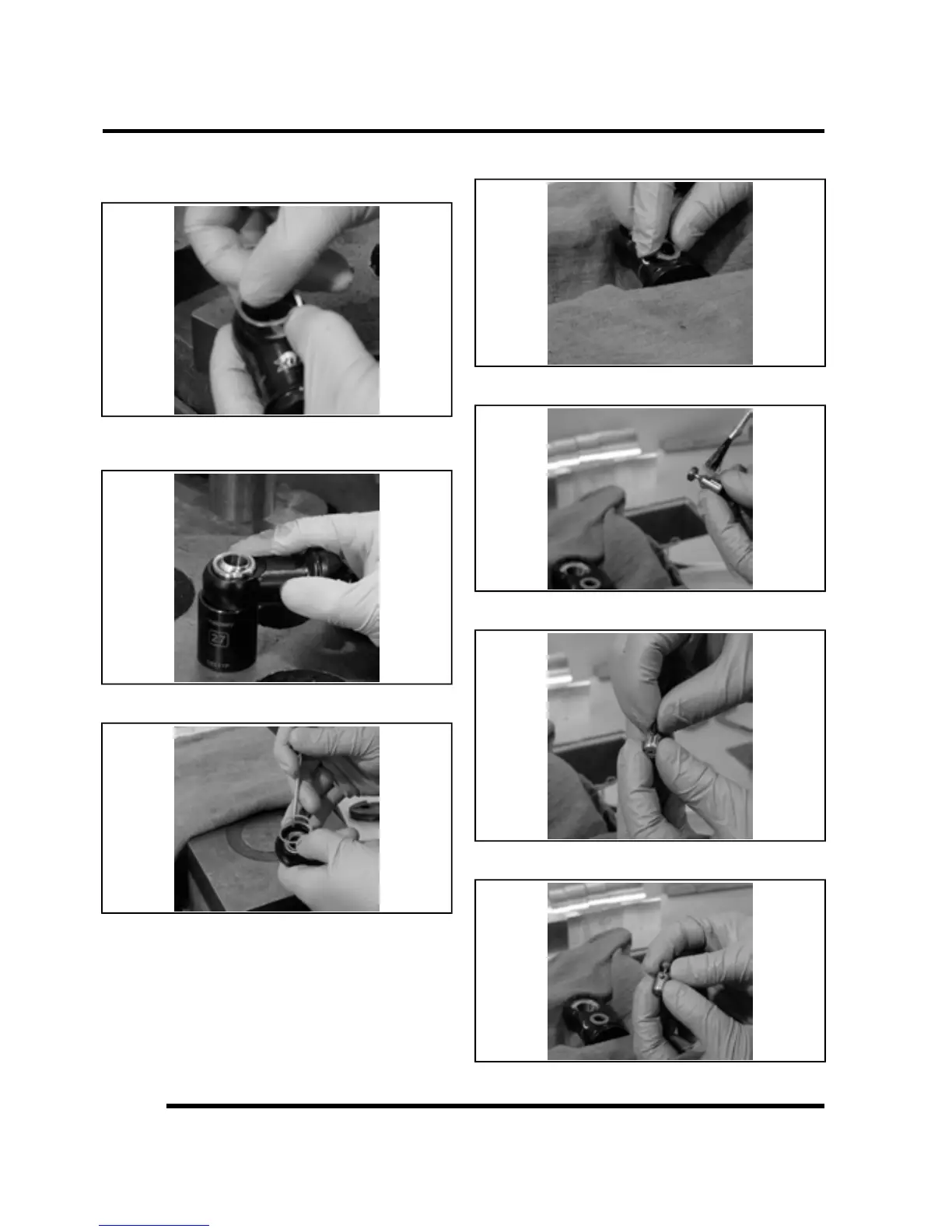

FOX Shock Assembly
1. Install one retaining ring in the eyelet.
2. Press bearing into the eyelet using Bearing Press
(803-00-569).
3. Install second retaining ring.
4. Install Dust Plug.
5. Apply shock oil to rebound adjuster.
6. Insert spring.
7. Put the steel ball on the spring with a dab of shock oil.
STEERING / SUSPENSION
