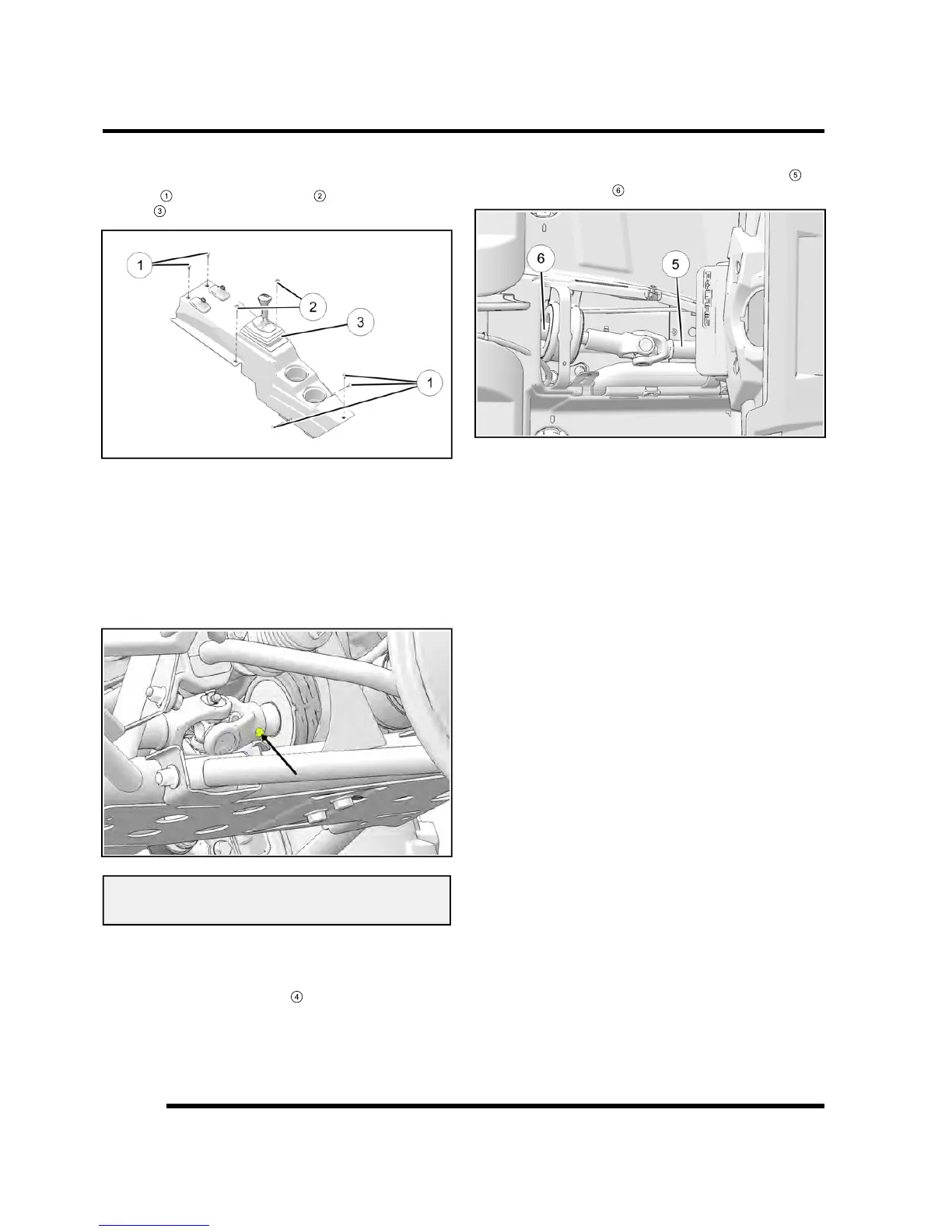

Prop Shaft Removal
1. Remove the center console by removing the five push
rivets
1
, two T-40 Torx screws
2
and push the shifter
boot
3
through the console.
2. Safely lift and secure the vehicle.
3. Remove the right side front wheel.
4. Draw a paint line on the front prop shaft yoke to the
front gearcase input shaft to ease alignment on
installation.
5. Locate the prop shaft roll pin and use the Roll Pin
Removal Tool (PN 2872608) to remove the roll pin.
Discard the roll pin.
Roll Pin Removal Tool:
2872608
6. Draw a paint line (if none are present) between the
front prop shaft yoke and the splines on the rear prop
shaft for proper alignment on installation.
7. Remove the two fasteners
4
retaining the prop shaft
support bearing to the frame.
8. While moving the prop shaft support bearing
assembly rearward, slide the front prop shaft
5
off
the rear prop shaft
6
and remove it from the vehicle.
NOTE: If difficulty is encountered removing the
front prop shaft, first remove the front prop shaft
off the splines of the front gearcase.
9. Remove the support bearing rubber bushing by
pulling it off the rear prop shaft bearing.
10.Pull the rear prop shaft towards the front of the
vehicle to disengage it from the splines on the
transmission snorkel shaft.
11. Remove the rear prop shaft out the left rear of the
vehicle.
