DRIVEN CLUTCH SERVICE (EBS)

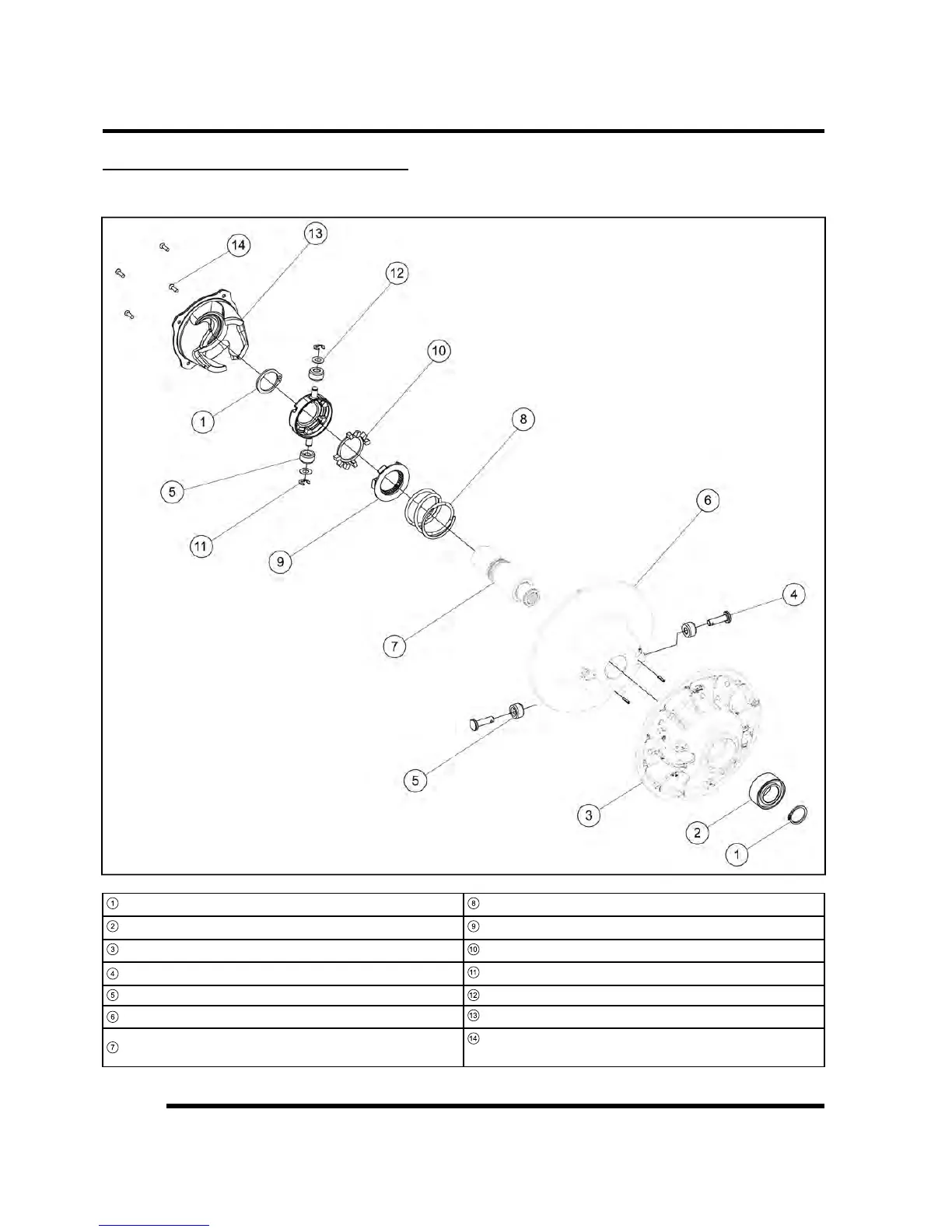

Assembly View
1
Snap Ring
8
Spring
2
Bearing
9
Spider Insert
3
Stationary Sheave
10
Spider Dampener
4
Pin
11
E-Clip
5
Roller
12
Washer
6
Moveable Sheave
13
Helix (Cam)
7
Clutch Shaft
14
Helix Screws
48 in-lb (5 Nm)
PVT SYSTEM
