11.32
9925723 R01 - 2015 RZR 900 Service Manual
© Copyright 2014 Polaris Industries Inc.

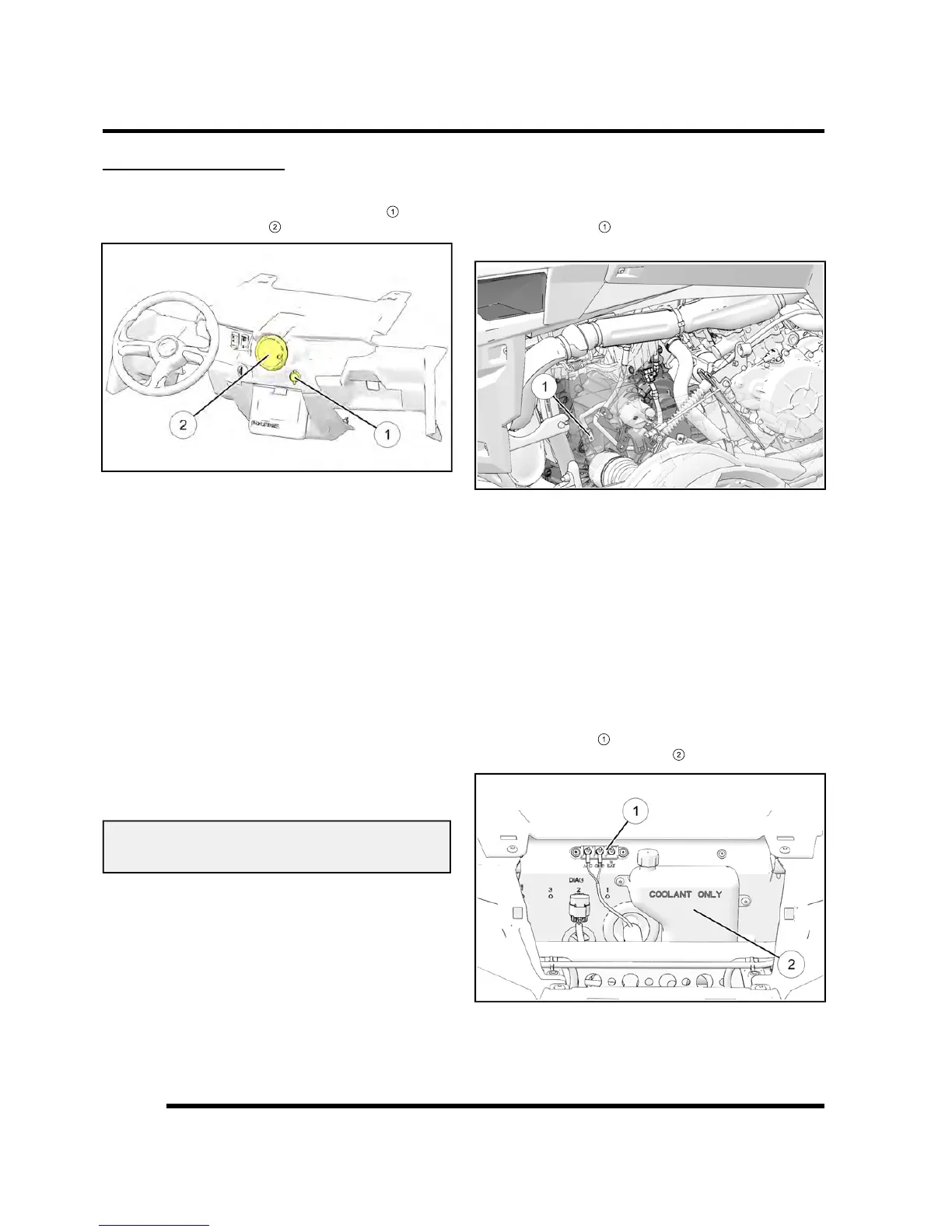

MISC. ELECTRICAL
12v Receptacle
This vehicle is equipped with a 12v receptacle
.
AWD Coil
Operation Overview
• When the key switch is “ON”, 12 VDC power is
present at the hub coil.
• When the AWD switch is “ON”, and if the criteria is
met, the Engine Controller provides a ground path
(brown/white wire). When this occurs the AWD
icon should display in the instrument cluster.
• The AWD system must be grounded to operate.
Diagnosing System Failures
• Verify the AWD switch is functional and that a
minimum of 11 volts is present at the hub coil.
• Verify the AWD hub coil is functional. Test the
AWD hub coil using an ohmmeter. See
specifications below:
AWD Hub Coil Resistance:
24ΩΩ± 5%
• Verify the wiring harness, wiring, connectors,
connector pins and grounds are undamaged,
clean and connect properly.
• Verify continuity of wire connections with a known
good volt/ohm meter.
NOTE: Verify all wires and wiring connections
have been tested properly with a known good
volt/ohm meter before suspecting a
component failure. 80% of all electrical issues
are caused by bad/failed connections and
grounds.
Speed Sensor
Speed Sensor Location
The speed sensor
is located on the RH side of the
transmission, accessed through the rear RH wheel well.
Speed Sensor Testing
1. Disconnect the three wire harness from the speed
sensor and remove the sensor from the transmission.
2. Connect the wires from the Static Timing Light
Harness (2871745) to the sensor 3 pin connector
using the Hall Sensor Probe Harness (2460761).
3. Pass a screwdriver back and forth in front of the
sensor tip.
4. Be sure connections are good and 9V battery is in
good condition. If the light flashes, the sensor is good.
Terminal Block
The terminal block
