3. If the resistance is correct:
• Test the main harness circuit between the sensor
connector terminals and the corresponding pin
terminals at the ECU (see wiring diagram).
• Check the sensor mounting, air gap, flywheel
encoder ring for damage or runout, and flywheel
key. Inspect CPS and flywheel encoder ring for
damage (see Chapter 4 – CPS Replacement,
page 4.27.
4. If the resistance is incorrect, follow the CPS
Replacement, page 4.27 procedure.
CPS Replacement

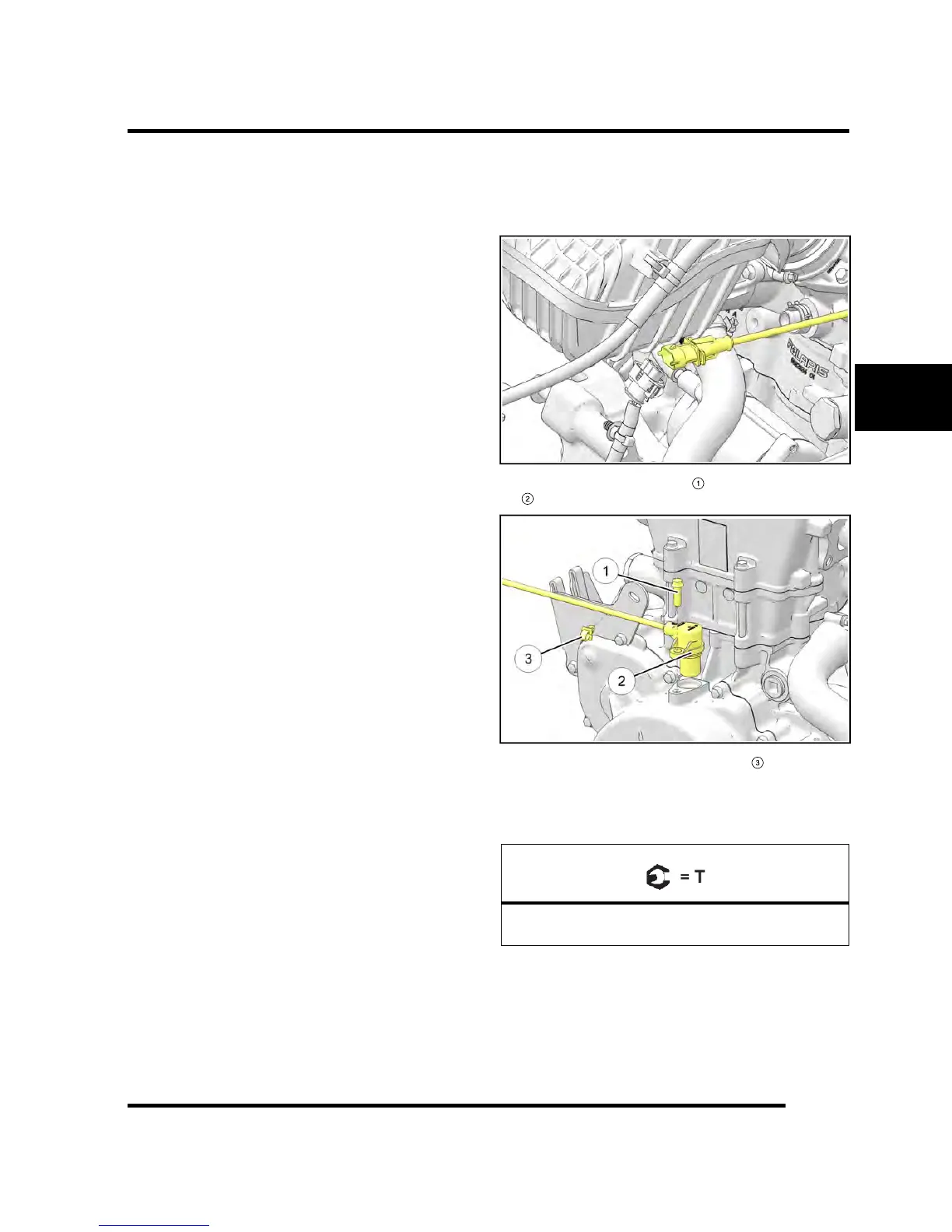

1. Access the CPS harness from the right rear side of
the vehicle.
2. Disconnect the CPS harness connector.
3. Remove CPS retaining bolt
1
and remove the sensor
2
from the stator cover.
4. Remove CPS wire lead from wire clip
3
.
5. Install new sensor using a light coating of oil on the
O-ring to aid installation.
6. Torque CPS retaining bolt to specification.
CPS Retaining Bolt:
9 ft-lb (12 Nm)
7. Route CPS wire lead through wire clip and reconnect
CPS harness connector.
