3.62

9925723 R01 - 2015 RZR 900 Service Manual

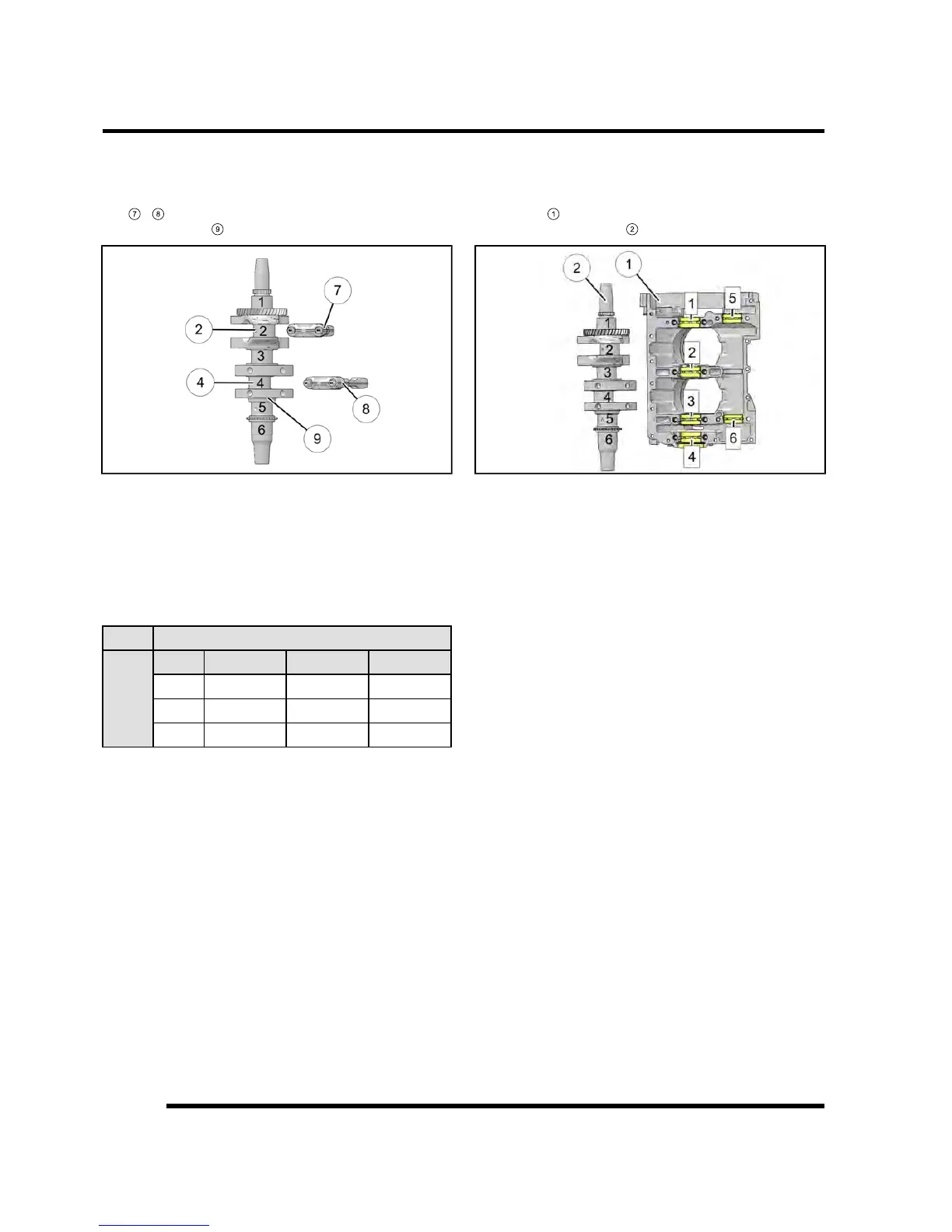

Connecting Rod Bearing Selection

In order to select the proper bearing for the connecting

rods, you must reference the number on each connecting

rod

and match that up with the rod journal letters

on the crankshaft

In this example, you would use the number 2 as the

connecting rod code. You would use letters G and G as

the crankshaft codes (crank journals 2 and 4).

Based off the bearing selection chart, you would use:

Green bearing for each connecting rod

Bearing Selection Chart – Rod Bearings

CRANKSHAFT

Rod

Code B G Y

1 Blue Blue Green

2 Blue Green Yellow

3 Green Yellow Yellow

Crankshaft Main Bearing Selection

In order to select the proper main bearings for the

crankshaft, you must reference the six numbers on the

crankcase

and match that up with the main journal

letters on the crankshaft

In this example, you would use the number 2 as the

crankcase codes (case journals 1, 2, 3, 4). You would

use letters G, Y, G, Y as the crankshaft codes (crank

journals 1, 3, 5 and 6).

Based off the bearing selection chart, you would use:

Green bearing for Main #1

Yellow bearing for Main #2

Green bearing for Main #3

Yellow bearing for Main #4

ENGINE / COOLING SYSTEM
