Polaris 2015 RZR 900 Service Manual

8
8.13
9925723 R01 - 2015 RZR 900 Service Manual
© Copyright 2014 Polaris Industries Inc.

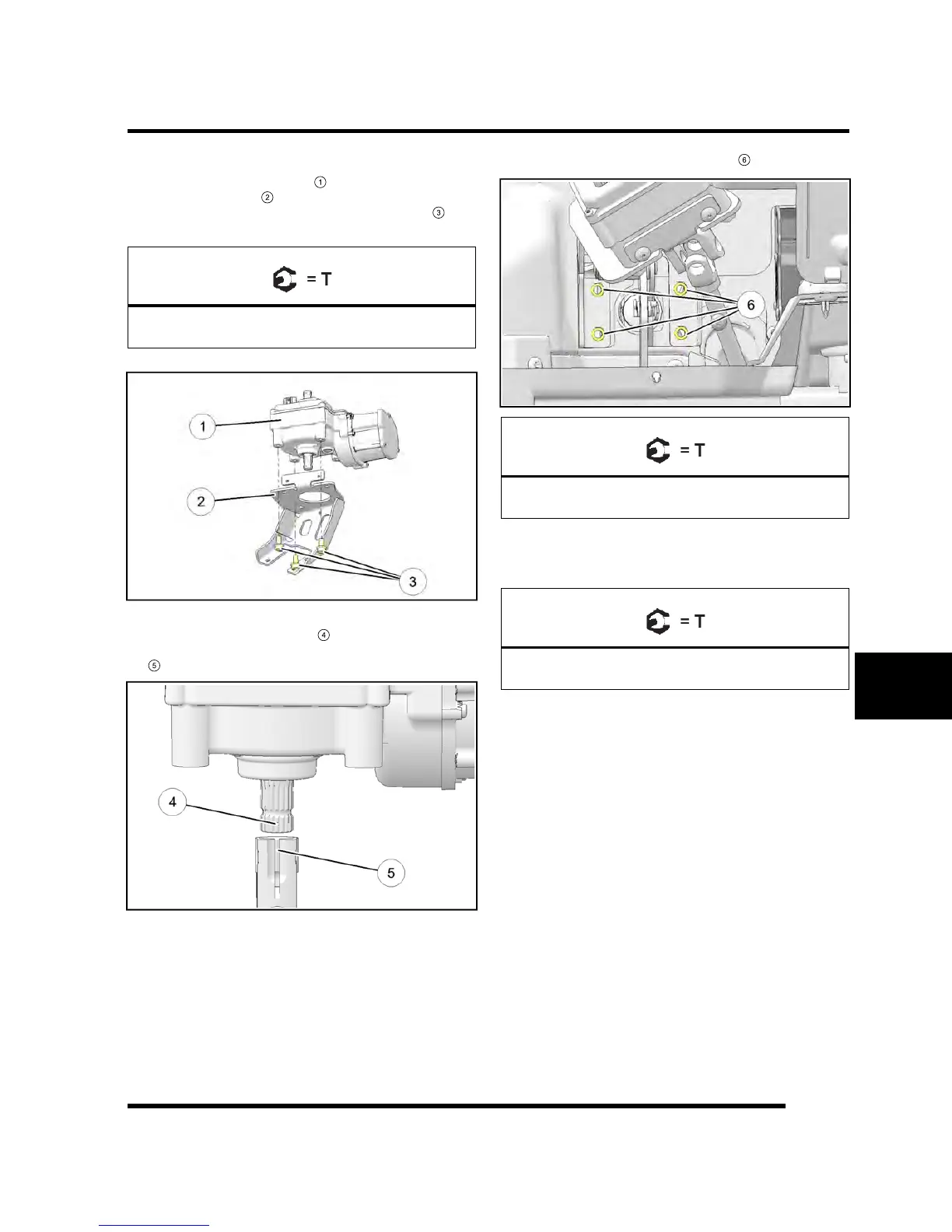

Power Steering Unit Installation
1. If the power steering unit
1
was removed from the
mount bracket
2
, reinstall it prior to vehicle
installation. Torque the mounting bolts
3
to
specification.
Power Steering Unit Mounting Bolts:
30 ft-lb (41 Nm)
2. Install the power steering unit into the vehicle and
align the skip-tooth spline
4
on the power steering
stub shaft with the opening in the lower steering shaft
5
.
3. Place the power steering mount bracket over the top
of the brake pedal mount studs and finger tighten the
four nuts.
4. Torque the four mount bracket nuts
6
to specification.
Power Steering Unit Mount Bracket Nuts:
16 ft-lb (22 Nm)
5. Position the lower steering shaft on the power
steering unit stub shaft and install the pinch bolt.
Torque to specification.
Lower Steering Shaft to EPS Unit Pinch Bolt:
15 ft-lbs (20 Nm)
6. See Chapter 8 – Upper Steering Shaft Installation,
page 8.14 to complete the installation procedure.
STEERING / SUSPENSION
