DRIVEN CLUTCH SERVICE (NON-EBS)

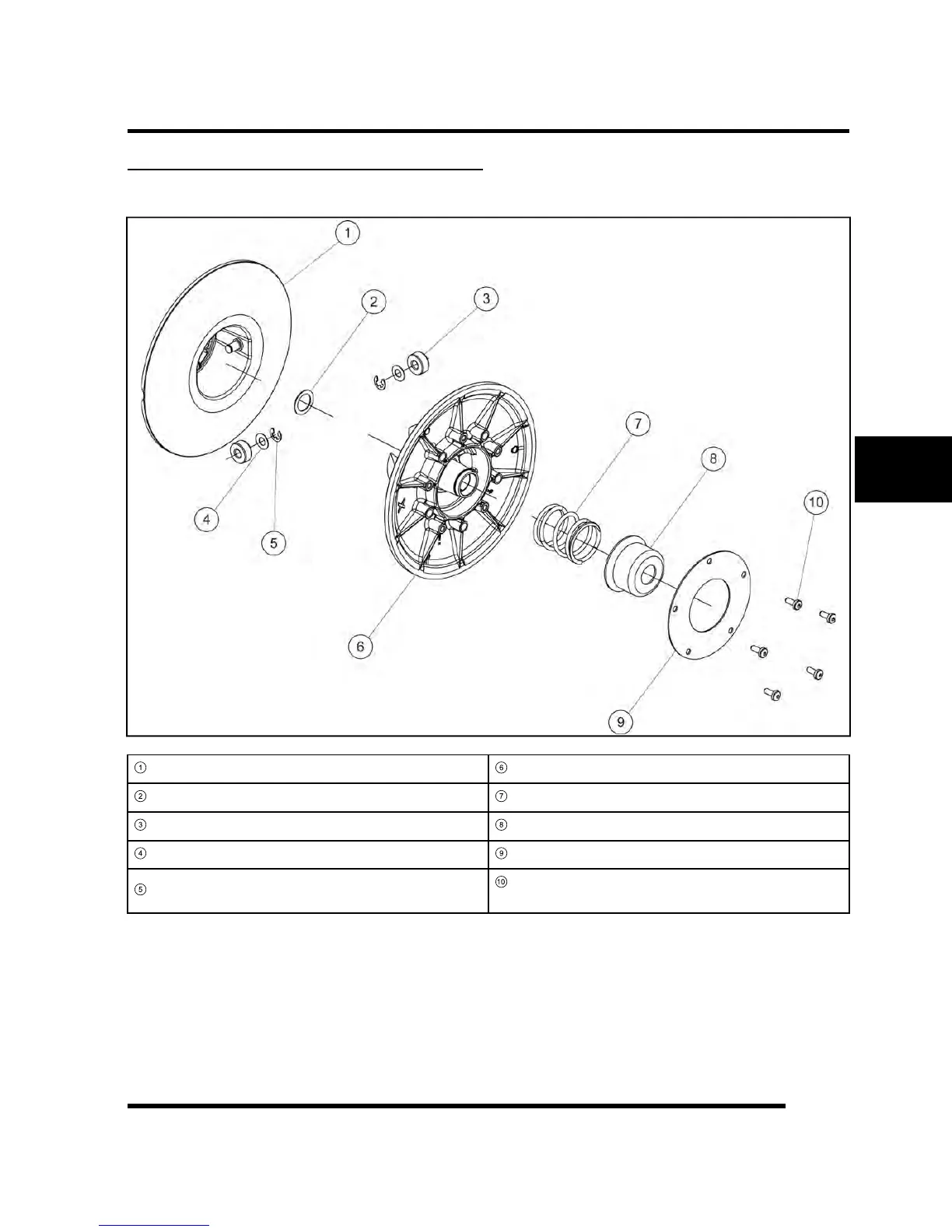

Driven Clutch Assembly View (non-EBS)
1
Stationary Sheave
6
Moveable Sheave
2
Thrust Washer
7
Spring
3
Roller
8
Spring Cup
4
Washer
9
Retaining Ring
5
E-clip
10
Torx Screw
12 ft-lb (16 Nm)
PVT SYSTEM
