7
7.21
9925723 R01 - 2015 RZR 900 Service Manual
© Copyright 2014 Polaris Industries Inc.

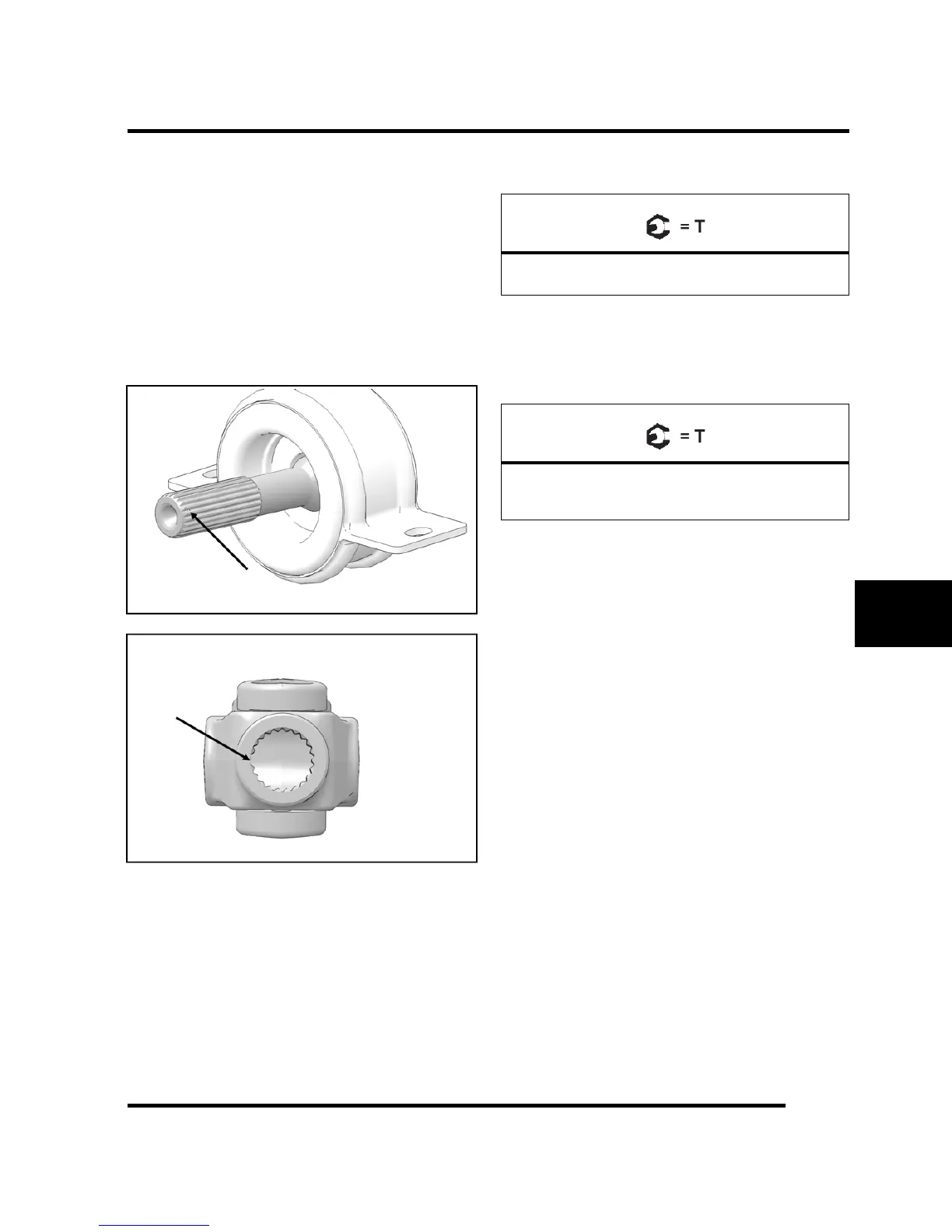

Prop Shaft Installation
1. Lubricate the transmission snorkel shaft splines with
Polaris All Purpose Grease.
2. Install the rear prop shaft through the left rear of the
vehicle and install the shaft onto the snorkel shaft
splines.
3. Lubricate the front and rear prop shaft mid joint with
Polaris All Purpose Grease.
4. Install the support bushing on the rear prop shaft
bearing.
5. Align the keyways on the front and rear prop shafts as
shown and slide them together.
NOTE: Paint marks are applied to the front and
rear prop shafts to aid in shaft alignment and
installation. Reference these marks during
installation.
6. Install and torque the support bearing fasteners to
specification.
Prop Shaft Support Bearing Fasteners:
33 ft-lb (45 Nm)
7. Align the front prop shaft paint mark with the front
gearcase input shaft mark so the holes align. Install a
new roll pin.
8. Install wheel and wheel nuts. Torque wheel nuts to
specification.
Wheel Lug Nuts:
Aluminum: 120 ft-lbs (163 Nm)
Steel: 60 ft-lb (81 Nm)
9. Install the center console.
FINAL DRIVE
