DIFFERENTIAL CIRCUIT (TURF MODELS ONLY)
Turf Solenoid (Turf Mode models only)

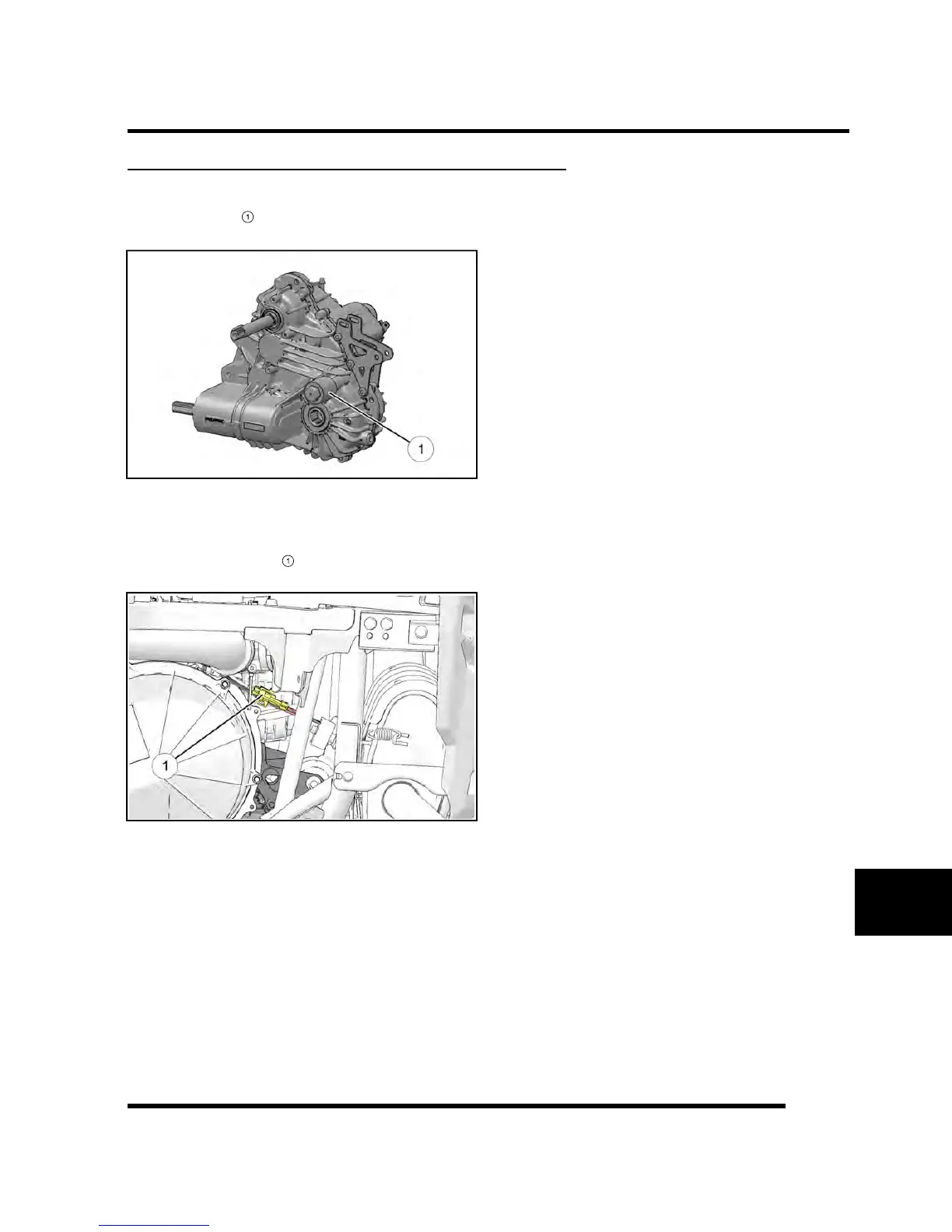

The Turf Solenoid
1
is located on the driver’s side of the
transmission, above the half shaft.
Turf Solenoid Driver (Turf Mode models
only)
The Turf Solenoid Driver
1
is located between the clutch
cover and the exhaust muffler.
ELECTRICAL
