5
5.11
9925723 R01 - 2015 RZR 900 Service Manual
© Copyright 2014 Polaris Industries Inc.
DRIVE CLUTCH SERVICE

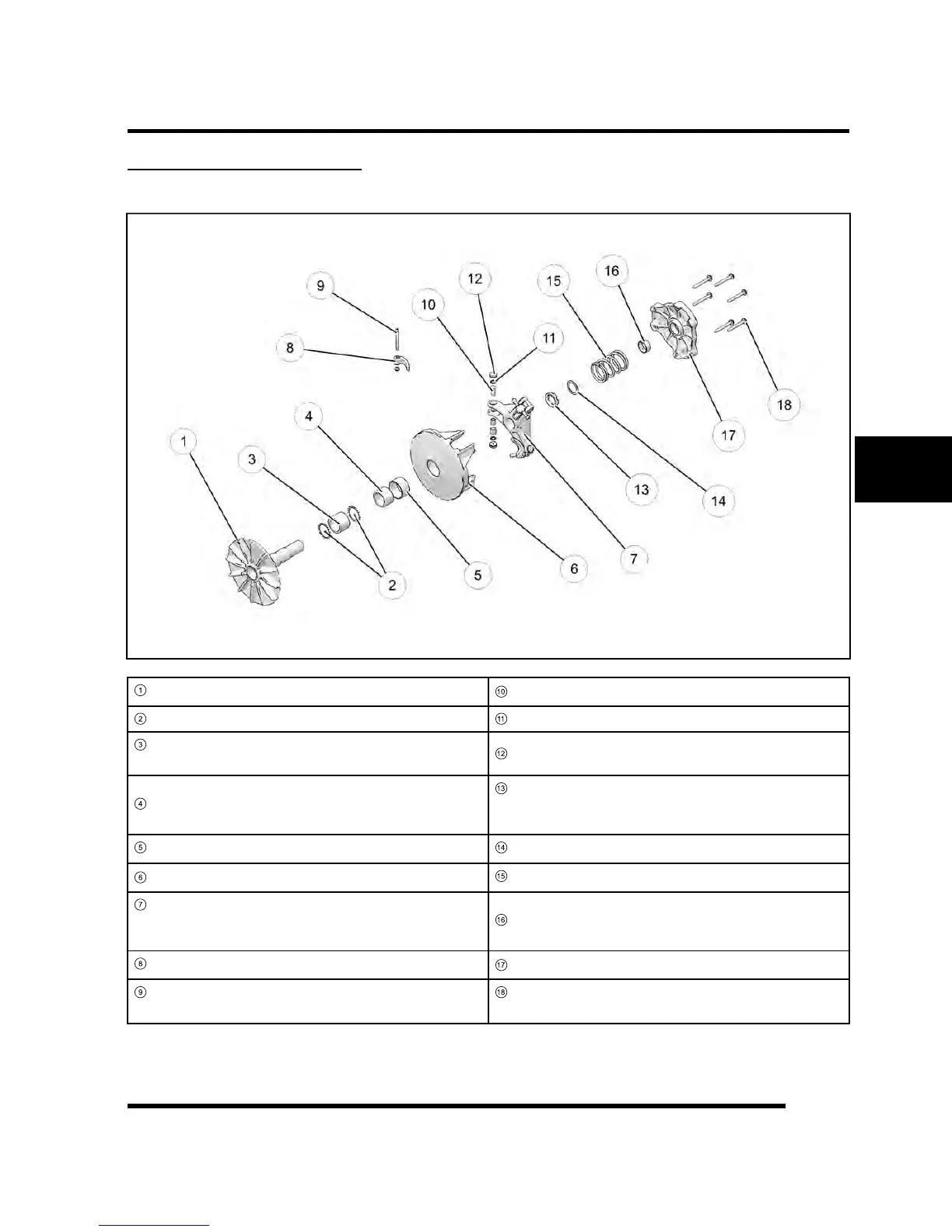

Drive Clutch Assembly View
1
Stationary Sheave
10
Pin
2
Washers
11
Washer
3
Needle Bearing (non-EBS models)
One Way Clutch (EBS models)
12
Button
4
Spacer
13
Jam Nut
250 ft-lb (339 Nm)
(Apply 0.1 mL Loctite® 620™)
5
Bushing
14
Limiter Spacer
6
Moveable Sheave
15
Clutch Spring
7
Spider
290 ft-lb (393 Nm)
(Apply 0.4 mL Loctite® 620™)
16
Cover Bushing
8
Shift Weight
17
Cover
9
Bolt
20 in-lb (2 Nm)
18
Cover Bolt
8 ft-lb (11 Nm)
PVT SYSTEM
