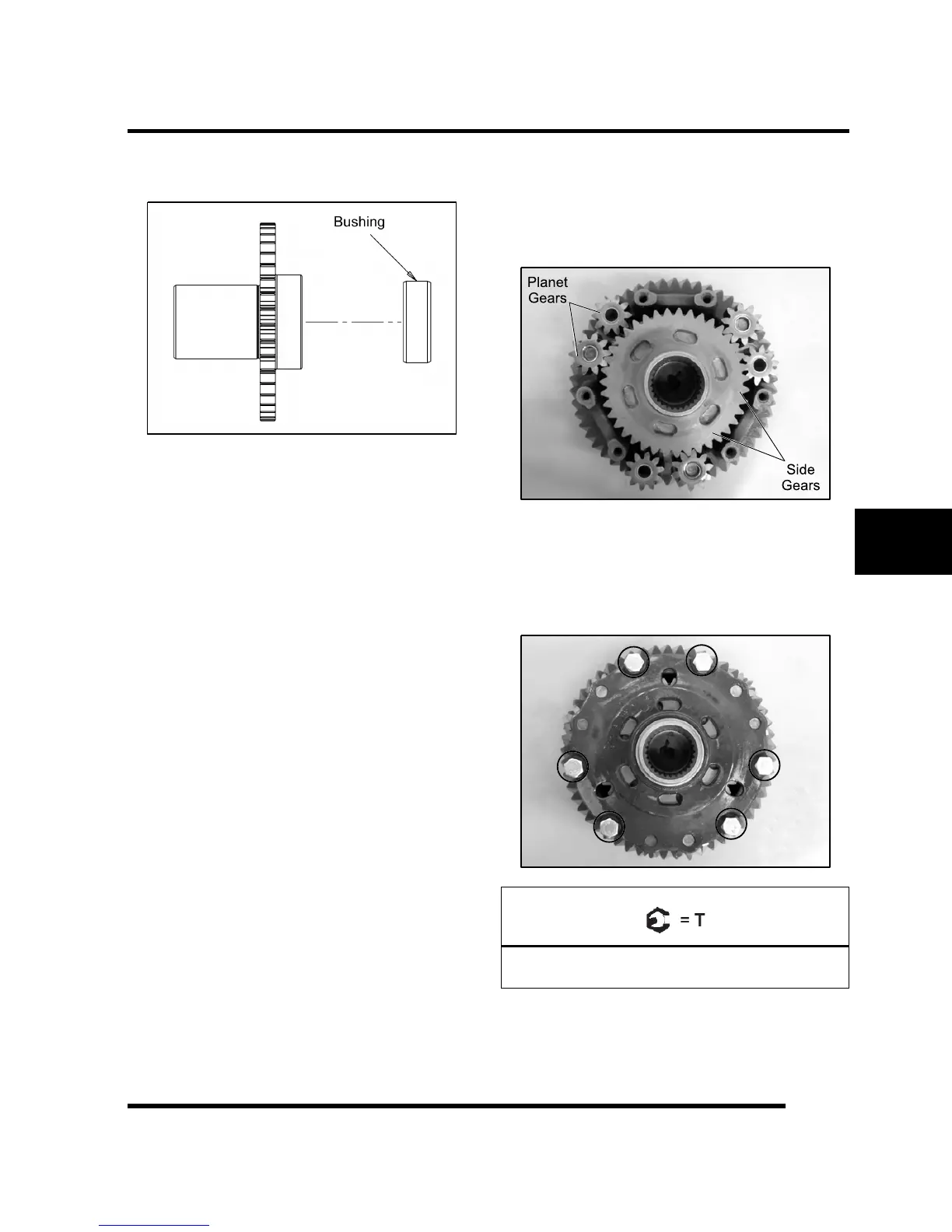

14. Press the new bushing into the side gear until it
bottoms out.
Planetary Differential Assembly (Turf Mode
Models Only)
1. Thoroughly clean the differential components.
2. Assemble the side gears and place them onto the
ring gear along with the six planet gears.
3. Align and install the differential cover using the
previously made scribe marks.
4. Apply Loctite® 2760™ to cover screws.
5. Install screws hand tight. Place assembly in soft jaw
vise and torque to specification.
Differential Cover Screws:
22 ft-lb (30 Nm)
