Polaris 2015 RZR 900 Service Manual

9
9.5
9925723 R01 - 2015 RZR 900 Service Manual
© Copyright 2014 Polaris Industries Inc.

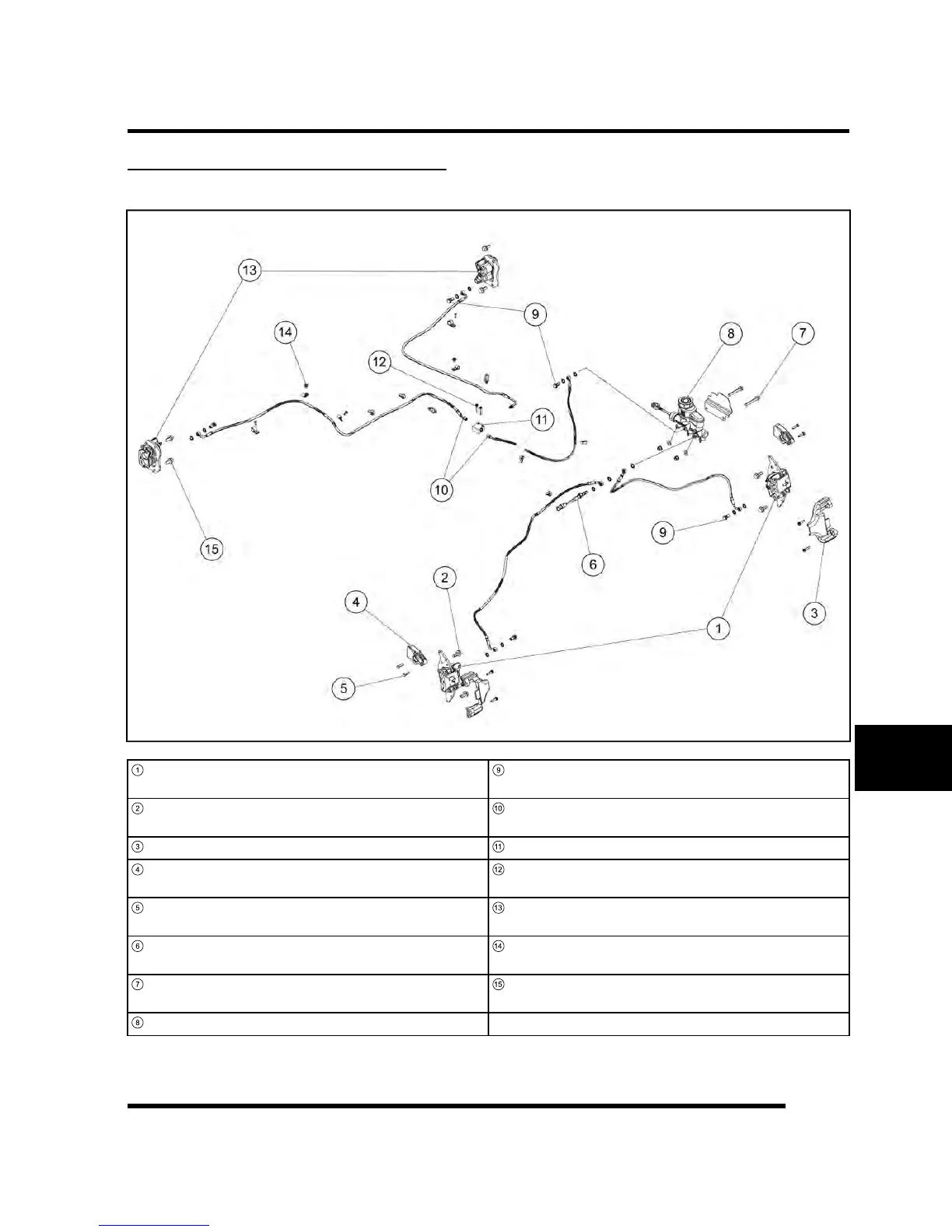

BRAKE SYSTEM ASSEMBLY VIEW
RZR 900
1
Front Caliper
9
Banjo Bolt
15 ft-lb (20 Nm)
2
Front Caliper Bolts
30 ft-lb (42 Nm)
10
Brake Fittings
15 ft-lb (20 Nm)
3
Caliper Mount / CV Shield
11
Junction Block
4
Brake Disc Scraper
12
Junction Block Bolts
35 in-lb (4 Nm)
5
Scraper Bolts
7 ft-lb (11 Nm)
13
Rear Caliper
6
Brake Switch
15 ft-lb (20 Nm)
14
Brake Line Retainers
35 in-lb (4 Nm)
7
Master Cylinder Mounting Fasteners
23 ft-lbs (31 Nm)
15
Rear Caliper Bolts
46 ft-lb (62 Nm)
8
Master Cylinder
BRAKE SYSTEM
