from the tank fitting
13.Lift the rear of the fuel tank up first. Carefully pull the
fuel tank out of the vehicle.

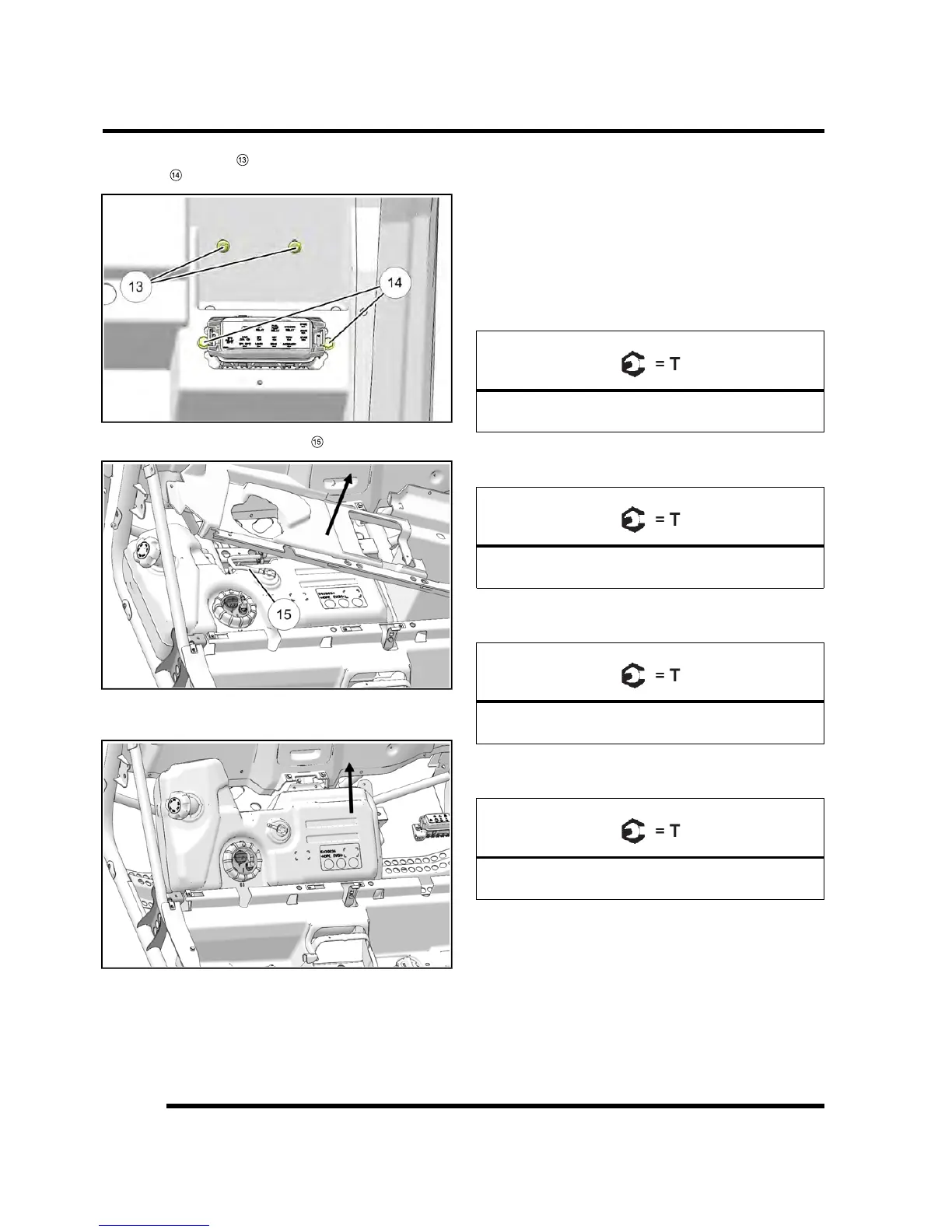

Fuel Tank Installation
1. Carefully install the fuel tank assembly. Install the
inner tank bracket with the fuel tank to ensure the
bracket is inserted properly into the lower fuel tank
mount.
2. Reinstall the fuel tank bracket and fasteners.
3. Install the vent line onto the tank fitting.
4. Reinstall the block-off panel. Secure with plastic
rivets and torque screws to specification.
Block-off Panel Screws:
8 ft-lb (11 Nm)
5. Install the seat base frame and torque fasteners to
specification.
Seat Base Frame Fasteners:
8 ft-lb (11 Nm)
6. Install regulator and fuse box to the block-off panel.
Torque fasteners to specification.
Regulator / Fuse Box Fasteners:
5 ft-lb (7 Nm)
7. Install fuel tank strap screw. Torque screw to
specification.
Fuel Tank Strap Screw:
8 ft-lbs (11 Nm)
8. Install center console and secure the shifter boot to
the console.
FUEL SYSTEM
