FRONT SUSPENSION

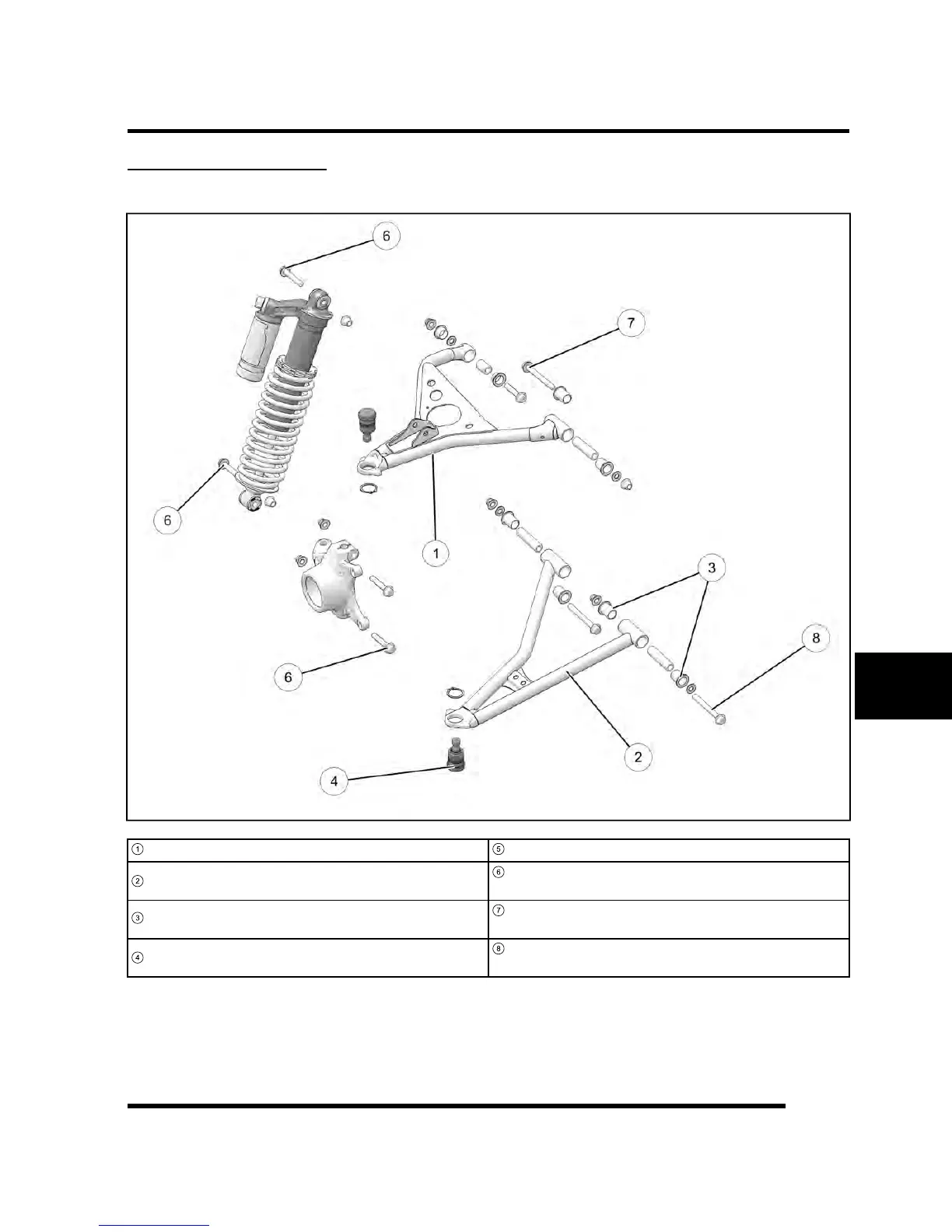

Front Suspension Assembly View
1
Upper A-arm
5
Shock Assembly
2
Lower A-arm
6
Shock Fasteners
42 ft-lb (57 Nm)
3
Bushings
7
Ball Joint Fasteners
42 ft-lb (57 Nm)
4
Ball Joint
8
Control Arm Bolt
42 ft-lb (57 Nm)
STEERING / SUSPENSION
