9925723 R01 - 2015 RZR 900 Service Manual
© Copyright 2014 Polaris Industries Inc.
WHEEL HUBS

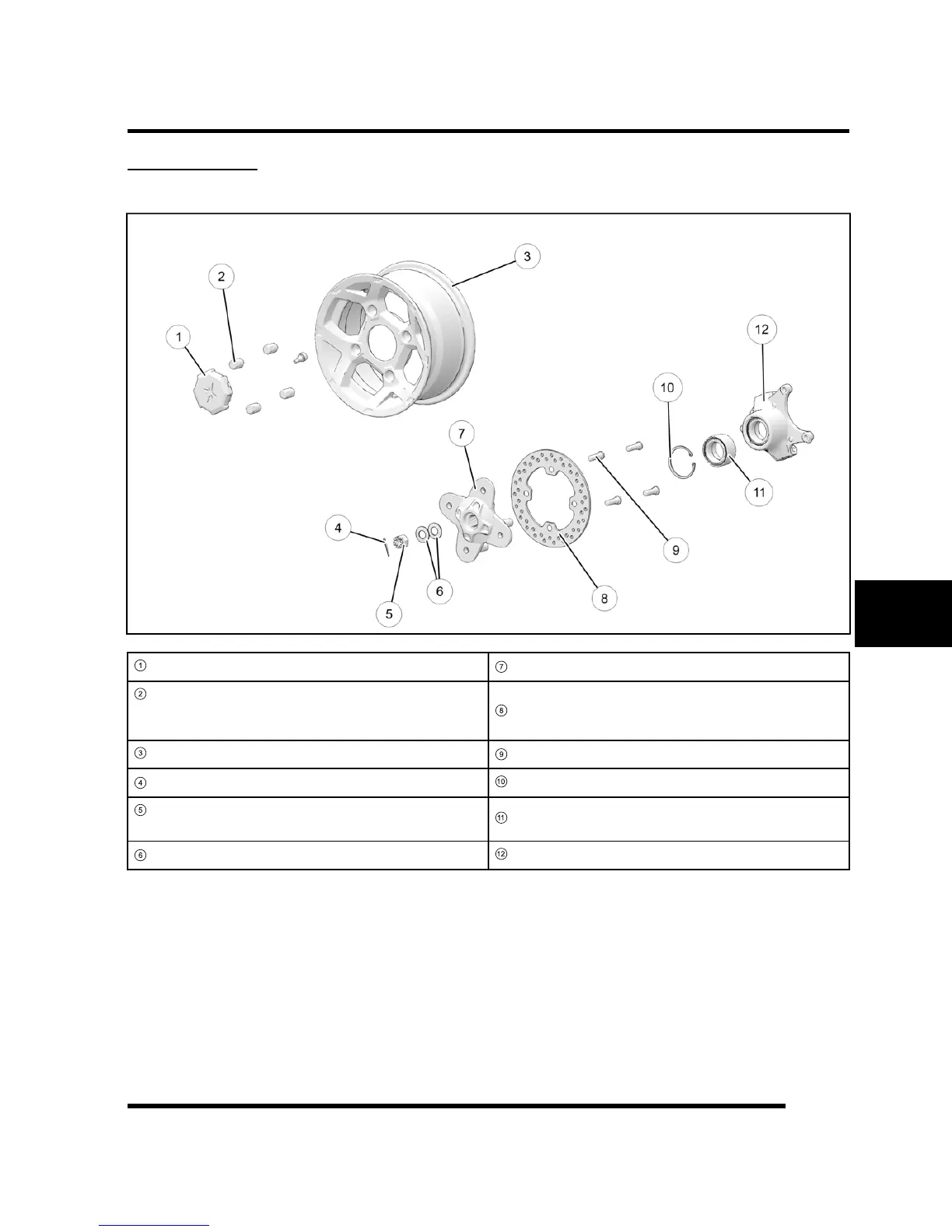

Front Hub Assembly View
1
Wheel Cap
7
Wheel Hub
2
Wheel Nuts
Aluminum: 120 ft-lbs (163 Nm)
Steel: 60 ft-lb (81 Nm)
8
Brake Disc
3
Front Rim (Aluminum shown)
9
Studs
4
Cotter Pin
10
Retaining Ring
5
Castle Nut
110 ft-lbs (149 Nm)
11
Sealed Bearing
6
Cone Washer
12
Bearing Carrier
