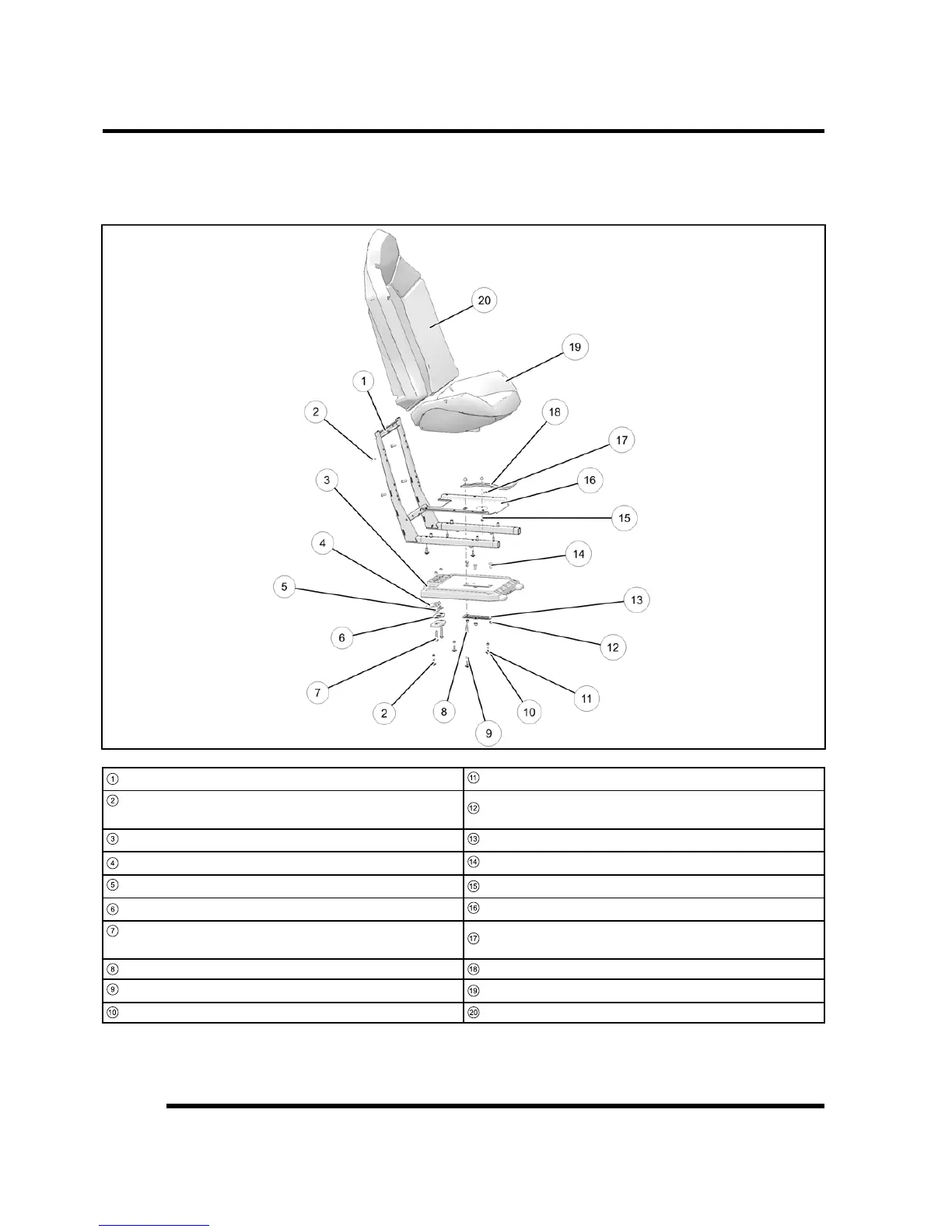

Seats
NOTE: ***Driver’s side shown. Passenger side will not have the seat slider.***
1
Seat Frame
11
Tube Spacer
2
Seat Mounting Screw
4 ft-lb (5 Nm)
12
Flange Nut Nylok
3
Seat Base Assembly Slider
13
Slider Adjustment Plate
4
Seat Latch Lever
14
Carriage Bolt
5
Spring Seat Latch
15
Shoulder Bolt
6
Plate Seat Latch
16
Seat Slider Mounting Plate
7
Seat Latch Screw
4 ft-lb (5 Nm)
17
Spring
8
Shoulder Belt
18
Seat Slider Lever
9
Spring Lock Washer
19
Seat Bottom
10
Flat Washer
20
Seat Back
