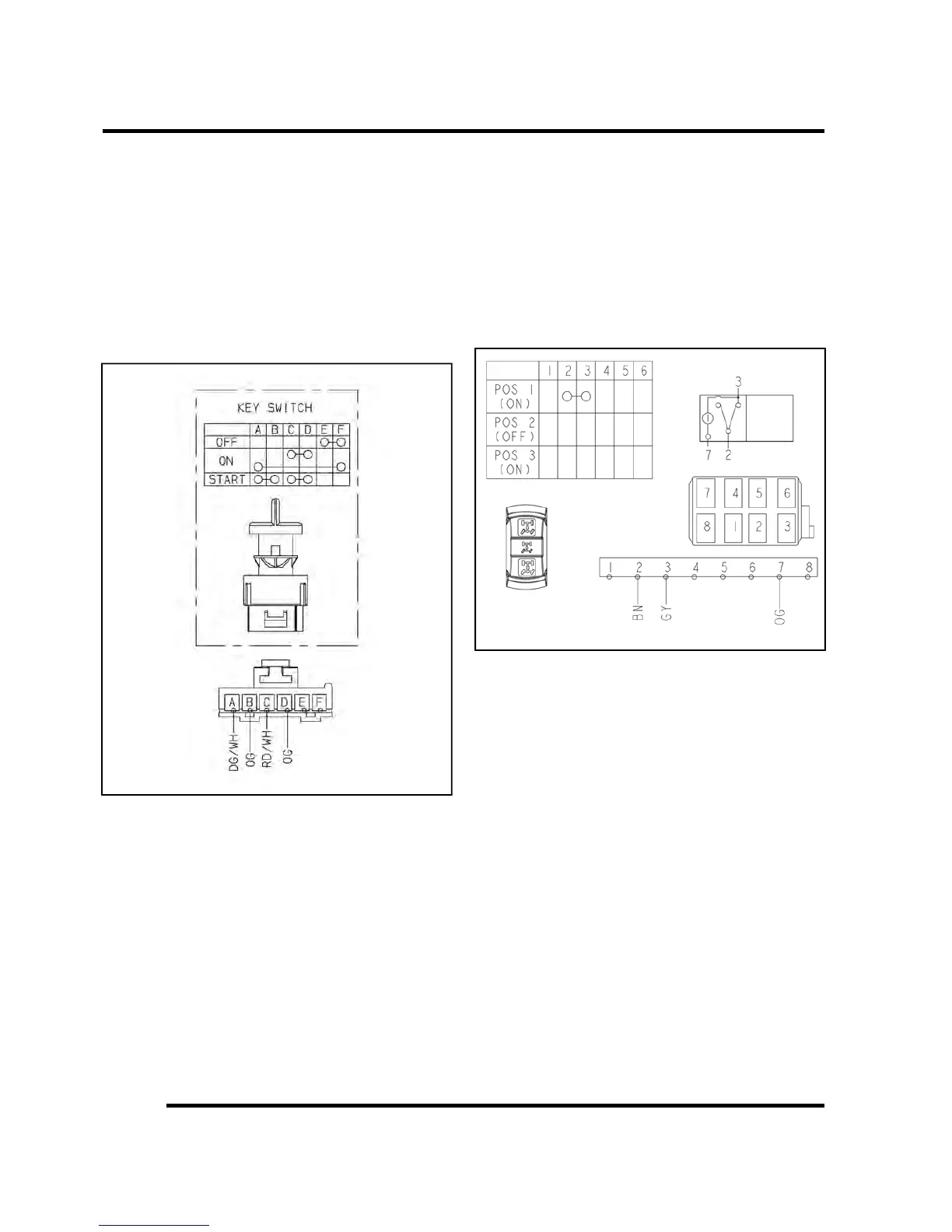

Ignition (Key) Switch

1. Disconnect the key switch harness by depressing the

connector lock and pulling on the connector. Do not

pull on the wiring.

2. Test between the 3 sets of outputs (OFF / ON /

START). If any of the tests fail, replace ignition

switch assembly.

• Turn the ignition key to ON. There should be

continuity between switch pins C and D.

• Turn the ignition key to START. There should be

continuity between switch pins A and B; C and D.

AWD / 2WD Switch (models without Turf)

1. Disconnect the AWD / 2WD switch harness by

depressing the connector locks and pulling on the

connector. Do not pull on the wiring.

2. Test between the 2 sets of outputs (AWD / 2WD). If

any of the tests fail, replace the switch assembly.

• Move the switch to AWD (ON). There should be

continuity between switch pins 2 and 3.

• Move the switch to 2WD (NONE / OFF). There

should be no continuity between any pins.
