STEERING ASSEMBLY (EPS)

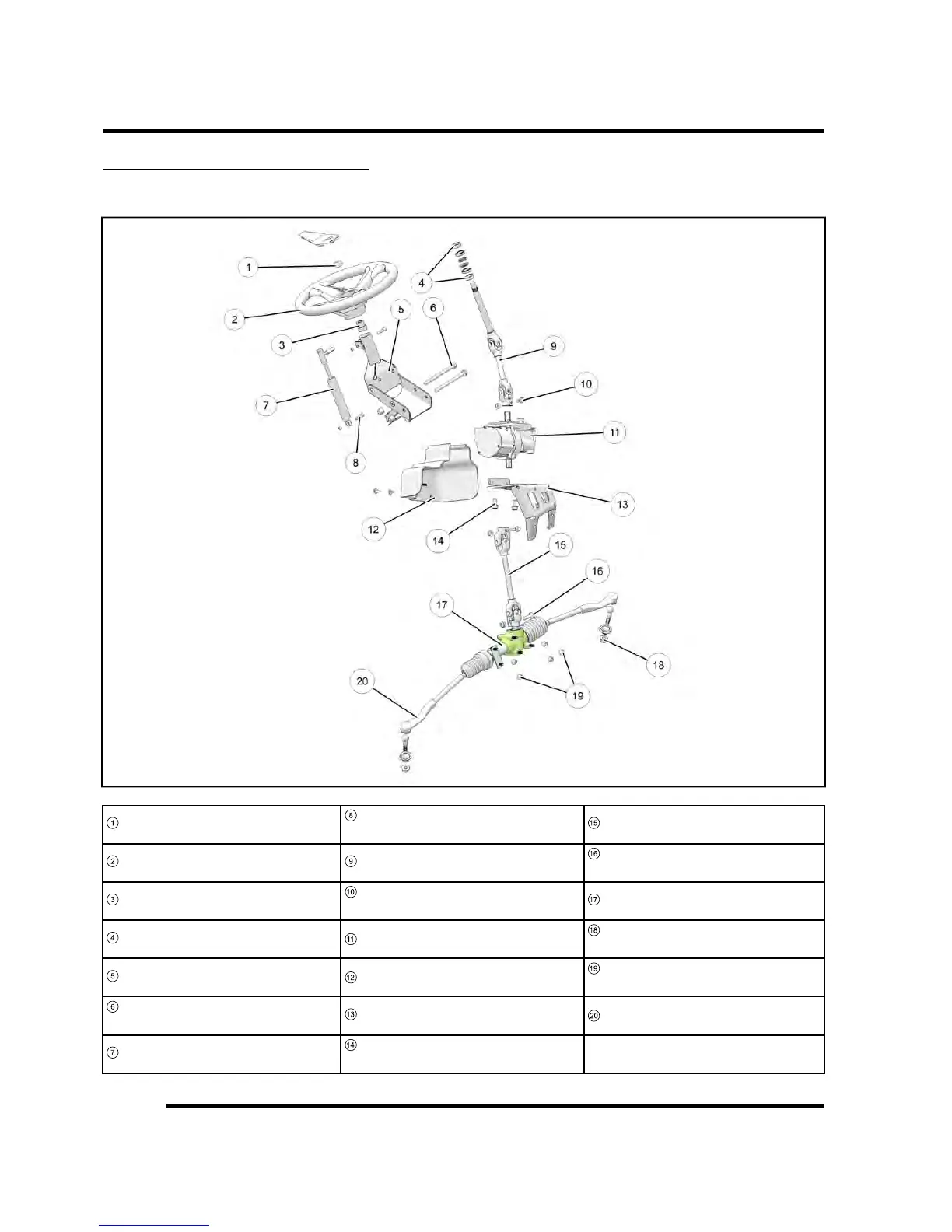

Steering Assembly View (EPS)
1
Steering Wheel Nut
8
Shock Fasteners
7 ft-lb (10 Nm)
15
Lower Steering Shaft
2
Steering Wheel
9
Upper Steering Shaft
16
Shaft to Rack Fastener
48 ft-lb (65 Nm)
3
Bushing
10
Shaft to EPS Fasteners
15 ft-lbs (20 Nm)
17
Steering Rack
4
Bearing
11
EPS
18
Tie Rod End Nut
30 ft-lbs (41 Nm) + 90°
5
Steering Pivot
12
EPS Cover
19
Rack Mounting Fasteners
16 ft-lbs (22 Nm)
6
Pivot Fasteners
40 ft-lb (54 Nm)
13
EPS Mounting Bracket
20
Tie Rod End
7
Tilt Locking Shock
14
Bracket Fasteners
30 ft-lb (41 Nm)
