11.10
9925723 R01 - 2015 RZR 900 Service Manual
© Copyright 2014 Polaris Industries Inc.

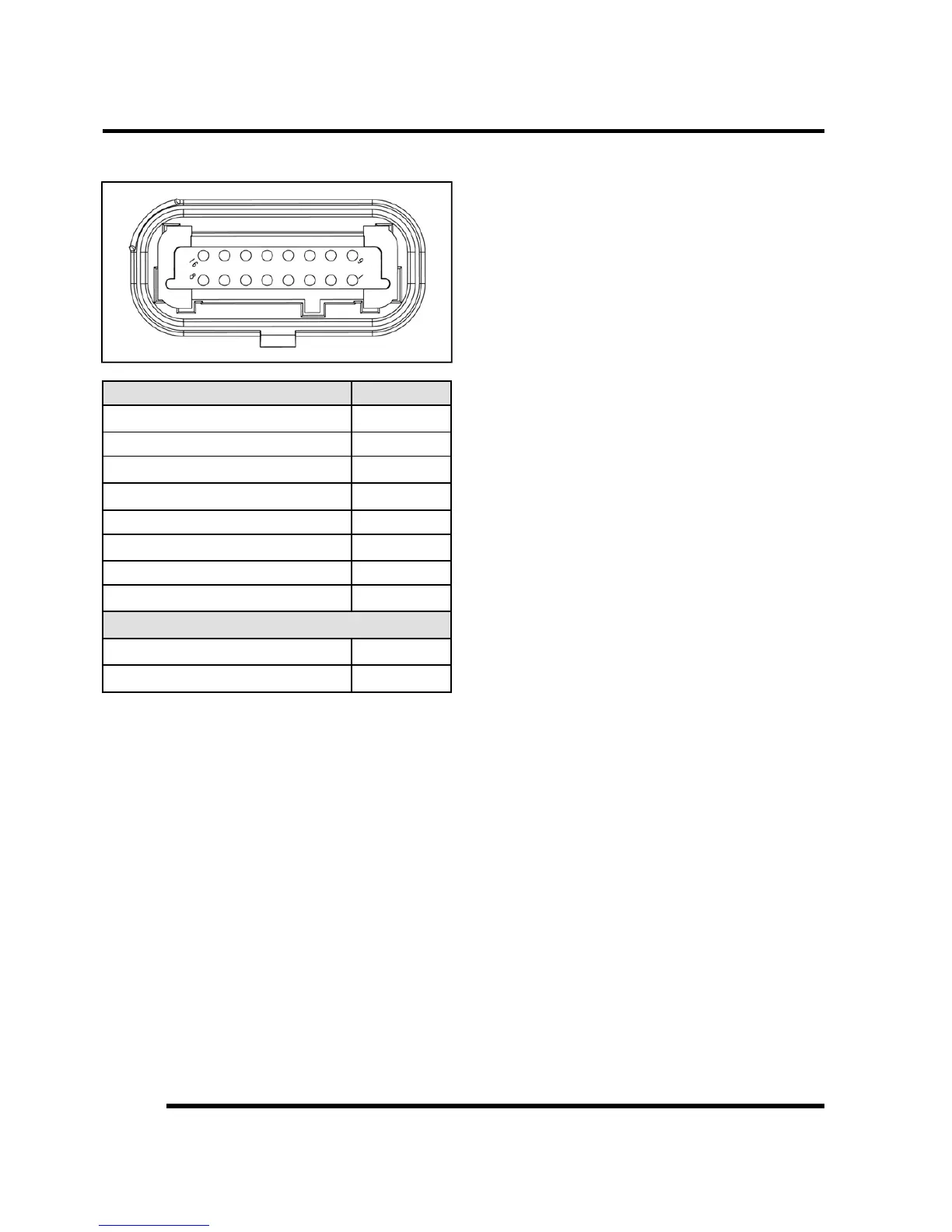

Instrument Cluster Pinouts
FUNCTION PIN
CAN High
1
CAN Low 2
Switched Power (Vdc)
3
Constant Power (Vdc)
4
Ground 5
High Beam Input
8
Fuel Level Sensor 11
Ambient Air Temperature
15
International Models Only
Turn Signal Input, LH
6
Turn Signal Input, RH
7
