Lower Steering Shaft Removal
1. Use the steering wheel to position the front wheels so
they point straight ahead.
2. Locate the lower steering shaft through the left front
wheel well. Mark the lower steering shaft, gear box
stub shaft and gear box to aid in installation.
3. Remove the power steering unit (see Chapter 8 –
Power Steering Unit Removal, page 8.10).

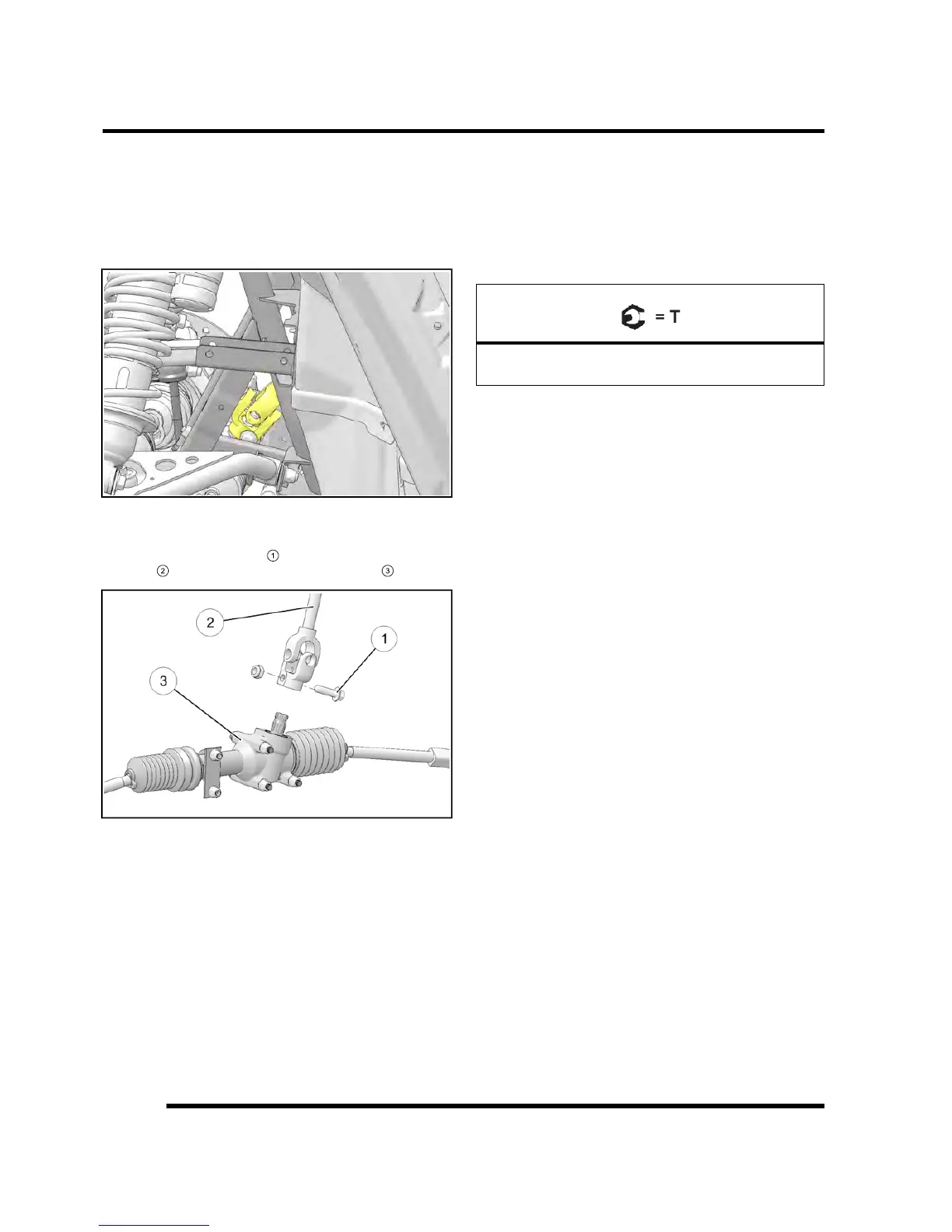

4. Remove the pinch bolt
1
retaining the lower steering
shaft
2
to the steering gear box assembly
3
.
5. Lift up on the shaft and remove it through the floor
panel.
Lower Steering Shaft Installation
1. Install the lower steering shaft onto the gear box and
align the marks made during step 2 of the “Lower
Steering Shaft Removal (EPS Models)” procedure.
2. Install the pinch bolt that retains the lower steering
shaft to the steering rack assembly and torque to
specification.
Lower Steering Shaft Pinch Bolt:
48 ft-lb (65 Nm)
3. Install the power steering unit and reassemble the
vehicle (see Chapter 8 – Power Steering Unit
Removal, page 8.10).
