2.32
9925723 R01 - 2015 RZR 900 Service Manual
© Copyright 2014 Polaris Industries Inc.
STEERING SYSTEM
Steering Inspection
The steering components should be checked periodically
for loose fasteners, worn tie rod ends, ball joints and
damage. Also check to make sure all cotter pins are in
place. If cotter pins are removed, they must be replaced.
Replace any worn or damaged steering components.
Steering should move freely through the entire range of
travel without binding. Check routing of all cables, hoses,
and wiring to be sure the steering mechanism is not
restricted or limited.
NOTE: Check front end alignment whenever
steering components are replaced.
WARNING
Due to the critical nature of the procedures outlined in
this chapter, Polaris recommends steering component
repair and adjustment be performed by an authorized
Polaris MSD certified technician.

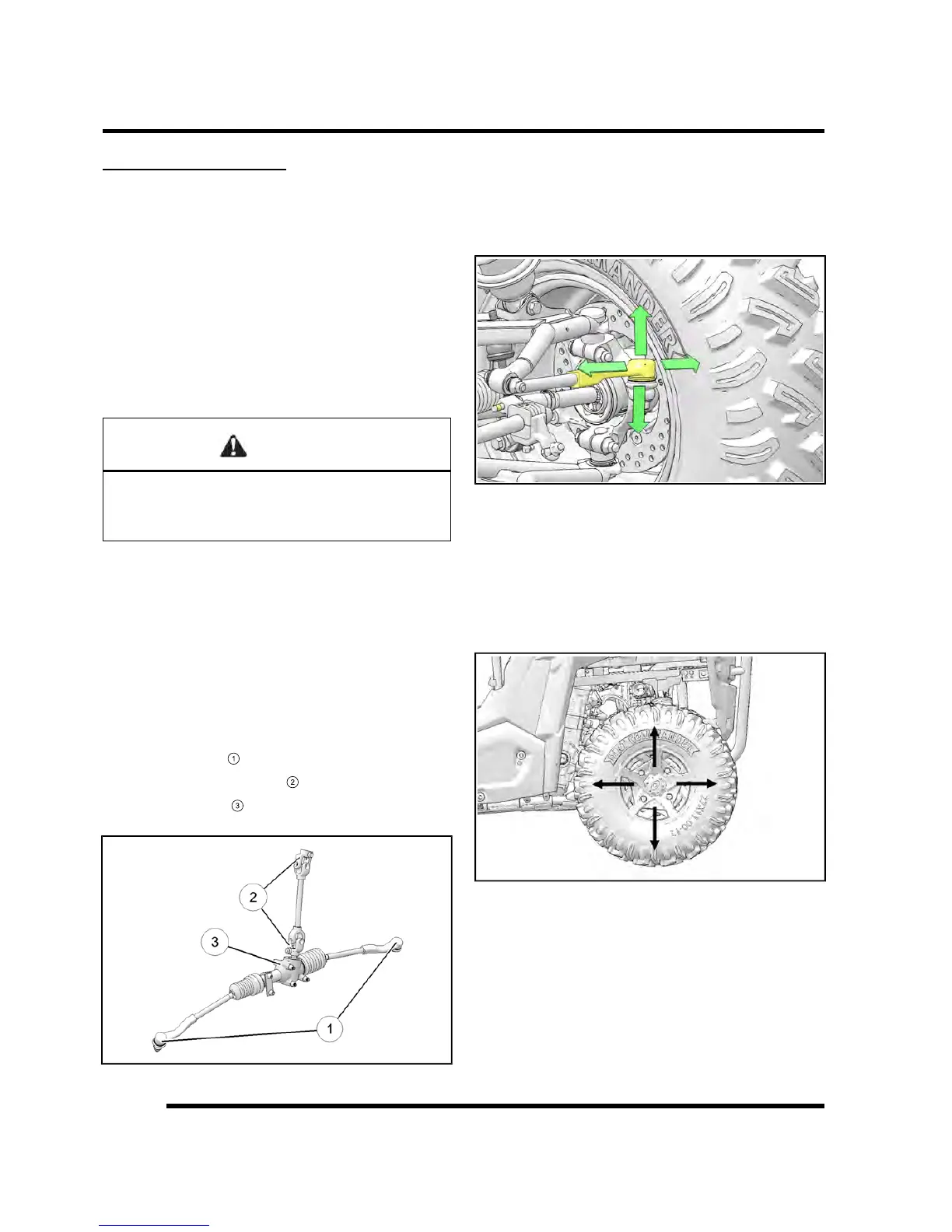

Steering Wheel Free-play
Check steering wheel for specified free-play and
operation.
1. Position the vehicle on level ground.
2. Lightly turn the steering wheel left and right.
3. There should be 0.8-1.0″ (20-25 mm) of free-play.
4. If there is excessive free-play or the steering feels
rough, inspect the following components.
• Tie Rod Ends
Tie Rod End / Wheel Hub Inspection
• To check for play in the tie rod end, grasp the
steering tie rod, pull in all directions feeling for
movement.
• Replace any worn steering components. Steering
should move freely through entire range of travel
without binding.
• Elevate front end of machine so front wheels are
off the ground. Check for any looseness in front
wheel/hub assembly by grasping the tire firmly at
top and bottom first, and then at front and rear. Try
to move the wheel and hub by pushing inward and
pulling outward.
• If abnormal movement is detected, inspect the hub
and wheel assembly to determine the cause (loose
wheel nuts or loose front hub nut).
• Refer to Chapter 7 “Final Drive” for front hub
service procedures.
MAINTENANCE
