Polaris 2015 RZR 900 Service Manual

2
2.35
9925723 R01 - 2015 RZR 900 Service Manual
© Copyright 2014 Polaris Industries Inc.
SUSPENSION SYSTEM

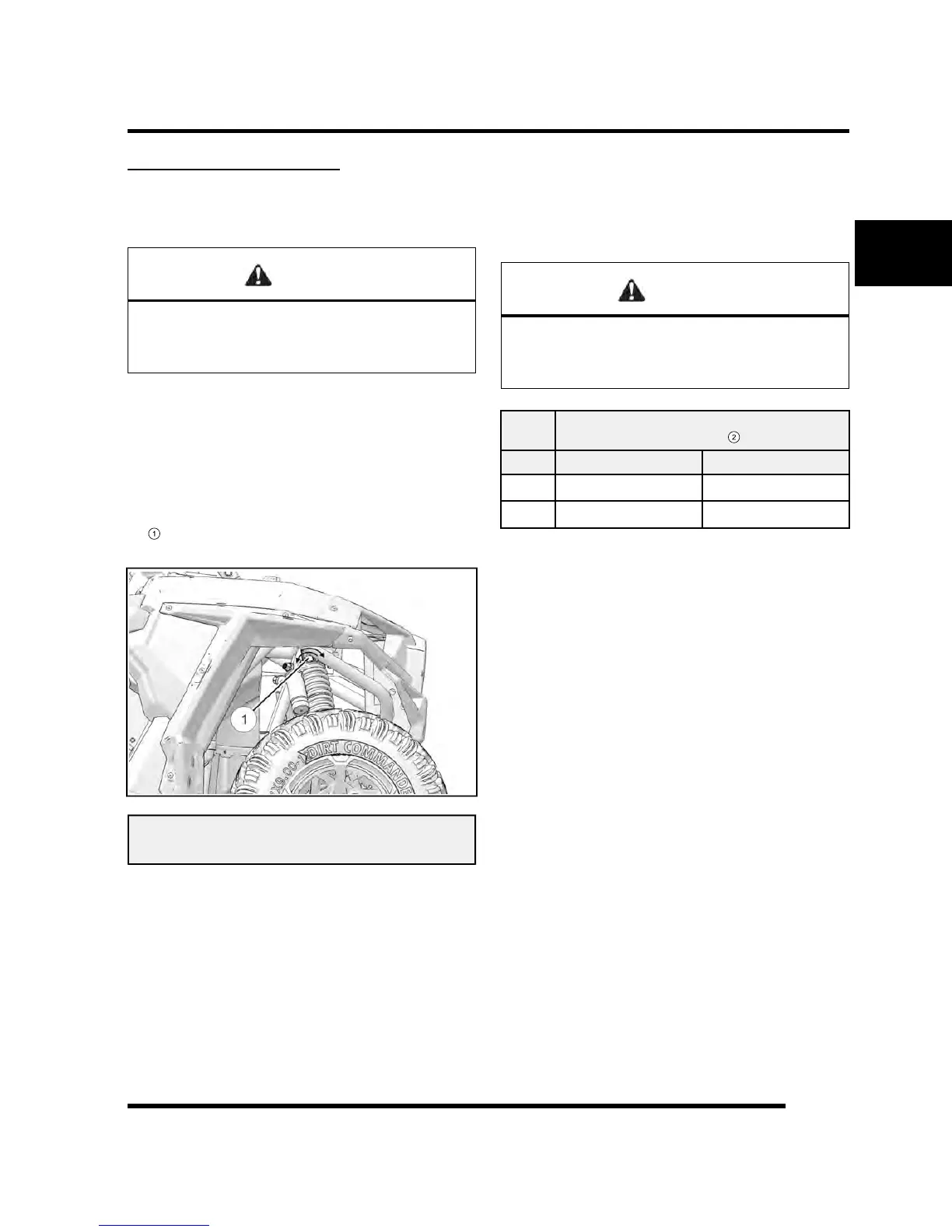

Spring Adjustment
The front and rear shock absorber springs are adjustable
by rotating the adjustment cam to change ride height.
WARNING
Uneven adjustment may cause poor handling of the
vehicle, which could result in an accident and serious
injury or death. Always adjust both the left and right
springs equally.
1. Position the vehicle on a level surface and stop the
engine.
2. Raise and safely support front or rear of vehicle off
the ground to allow the suspension to fully extend.
NOTE: The tires should not be touching the
ground.
3. To adjust the suspension, rotate the adjustment cam
1
clockwise to increase spring tension or counter-
clockwise to decrease spring tension.
Shock Spanner Wrench:
PN 2877408
4. Each notch of the adjustment will add 6% - 8% more
preload to the spring over the primary position.
Spring Adjustment (FOX)
The front and rear shocks have a spring adjustment.
Suspension springs may be adjusted to suit different
riding conditions or vehicle payloads.
WARNING
Uneven adjustment may cause poor handling of the
vehicle, which could result in an accident and serious
injury or death. Always adjust both the left and right
springs equally.
SPRING ADJUSTMENT - FACTORY
SETTING
2
Front Rear
XC
4.41″ (11.20 cm) 0.56″ (1.42 cm)
60″
7.39″ (18.77 cm) 2.80″ (7.11 cm)
NOTE: Refer to the shock illustrations within this
procedure for spring measurement location.
The factory setting is appropriate for nearly all riding
conditions. Since this vehicle is equipped with full skid
plates, adjustment is not necessary.
If desired, the spring setting may be adjusted to maintain
vehicle clearance height when carrying loads.
1. Raise and safely support the front or rear of the
vehicle off the ground to allow the suspension to fully
extend.
MAINTENANCE
