2.33

9925723 R01 - 2015 RZR 900 Service Manual

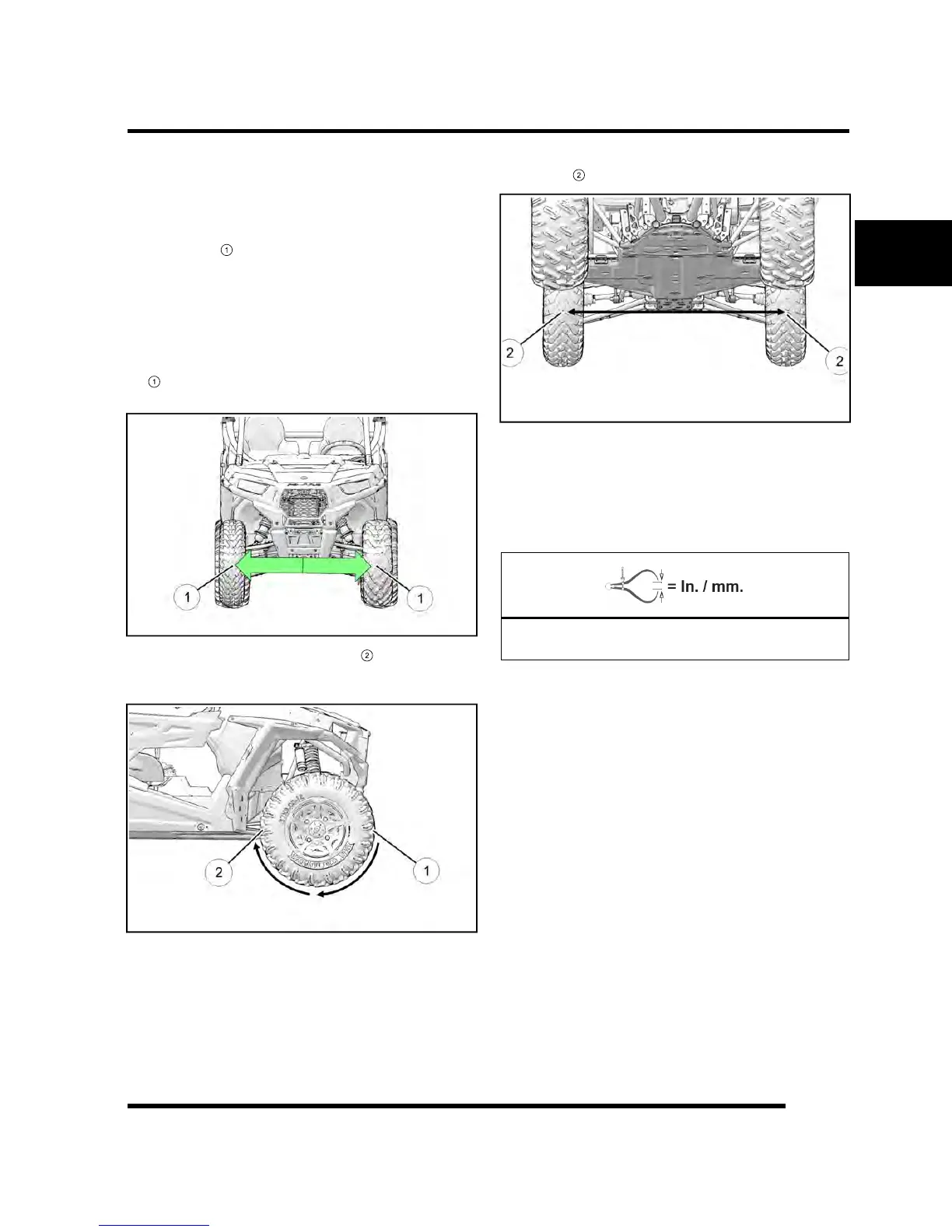

Wheel Toe Alignment Inspection

1. Place machine on a smooth level surface and set

steering wheel in a straight ahead position. Secure

the steering wheel in this position.

2. Place a chalk mark on the center line of the front tires

at position

approximately 10″ (25.4 cm) from the

floor or as close to the hub/axle center line as

possible.

NOTE: It is important the height of both marks be

equally positioned to get an accurate

measurement.

3. Measure the distance between the marks at position

and record the measurement. Call this

measurement A.

4. Rotate the tires 180° to position

by moving the

vehicle forward. Position chalk marks facing

rearward, even with the hub/axle center line.

5. Again measure the distance between the marks at

position

and record. Call this measurement B.

6. Subtract measurement B from measurement A. The

difference between measurements A and B is the ve-

hicle toe alignment. The recommended vehicle toe

tolerance is 1/8 to 3/16″ (3.2 to 4.8 mm) toe out. This

means the measurement at the front of the tire (A) is

1/8 to 3/16″ (3.2 to 4.8 mm) wider than the measure-

ment at the rear (B).

Wheel Toe-Out:

1/8 to 3/16" (3.2 to 4.8 mm)

MAINTENANCE
