Polaris 2015 RZR 900 Service Manual

11
11.13
9925723 R01 - 2015 RZR 900 Service Manual
© Copyright 2014 Polaris Industries Inc.

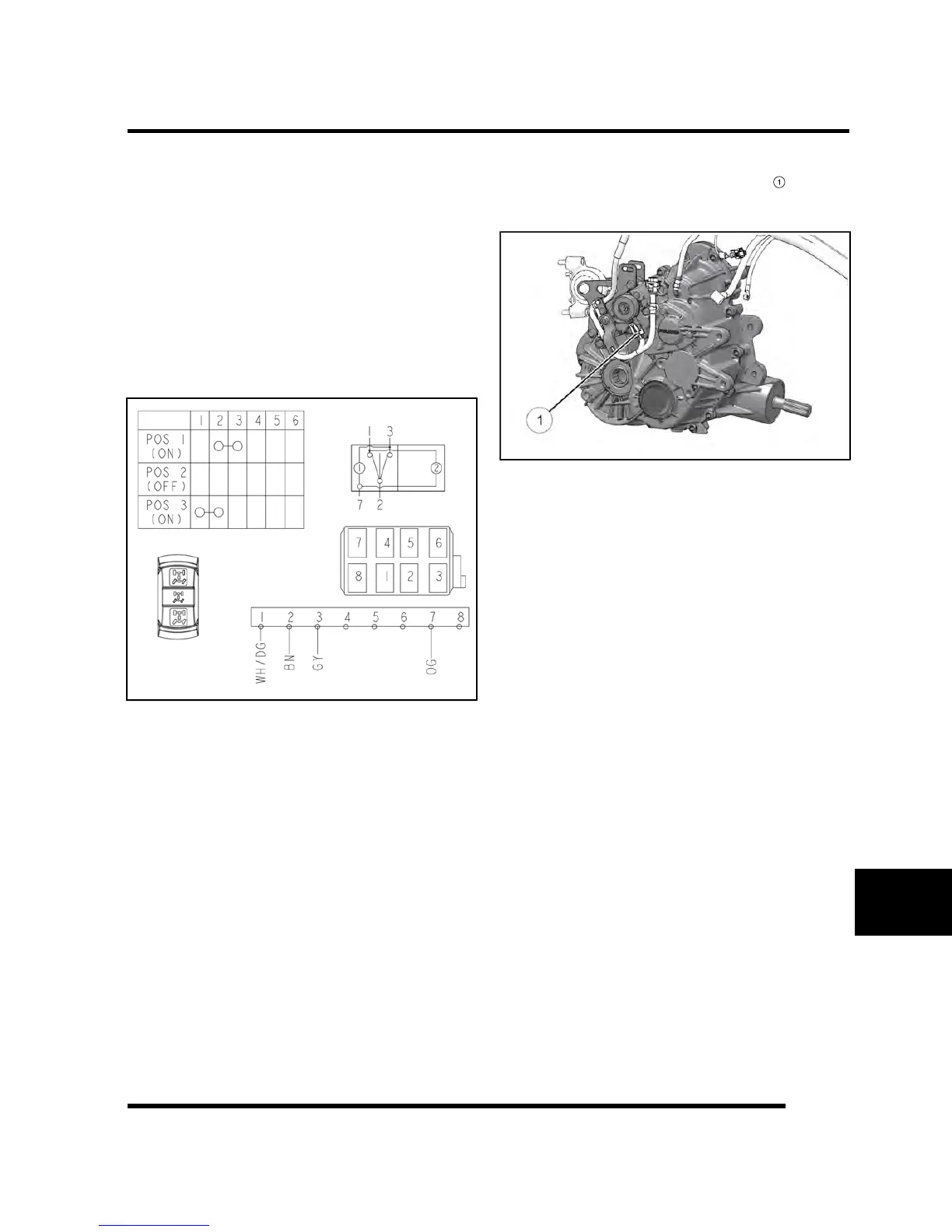

AWD/2WD/Turf Switch (models with Turf)
1. Disconnect the AWD/2WD/Turf switch harness by
depressing the connector locks and pulling on the
connector. Do not pull on the harness.
2. Test between the three sets of outputs (AWD / 2WD /
TURF). If any of the tests fail, replace the switch.
• Move the switch to AWD. There should be
continuity between switch pins 2 and 3; 5 and 6.
• Move the switch to 2WD. There should be no
continuity between any pins.
• Move the switch to TURF. There should be
continuity between switch pins 1 and 2; 4 and 5.
Transmission (Gear Position) Switch
1. The transmission (gear position) switch
1
is located
on the RH side of the transmission and can be
accessed through the RH wheel well area.
2. Disconnect the transmission switch harness by lifting
the connector lock and pulling on the connector. Do
not pull on the wiring.
ELECTRICAL
