9925723 R01 - 2015 RZR 900 Service Manual
© Copyright 2014 Polaris Industries Inc.

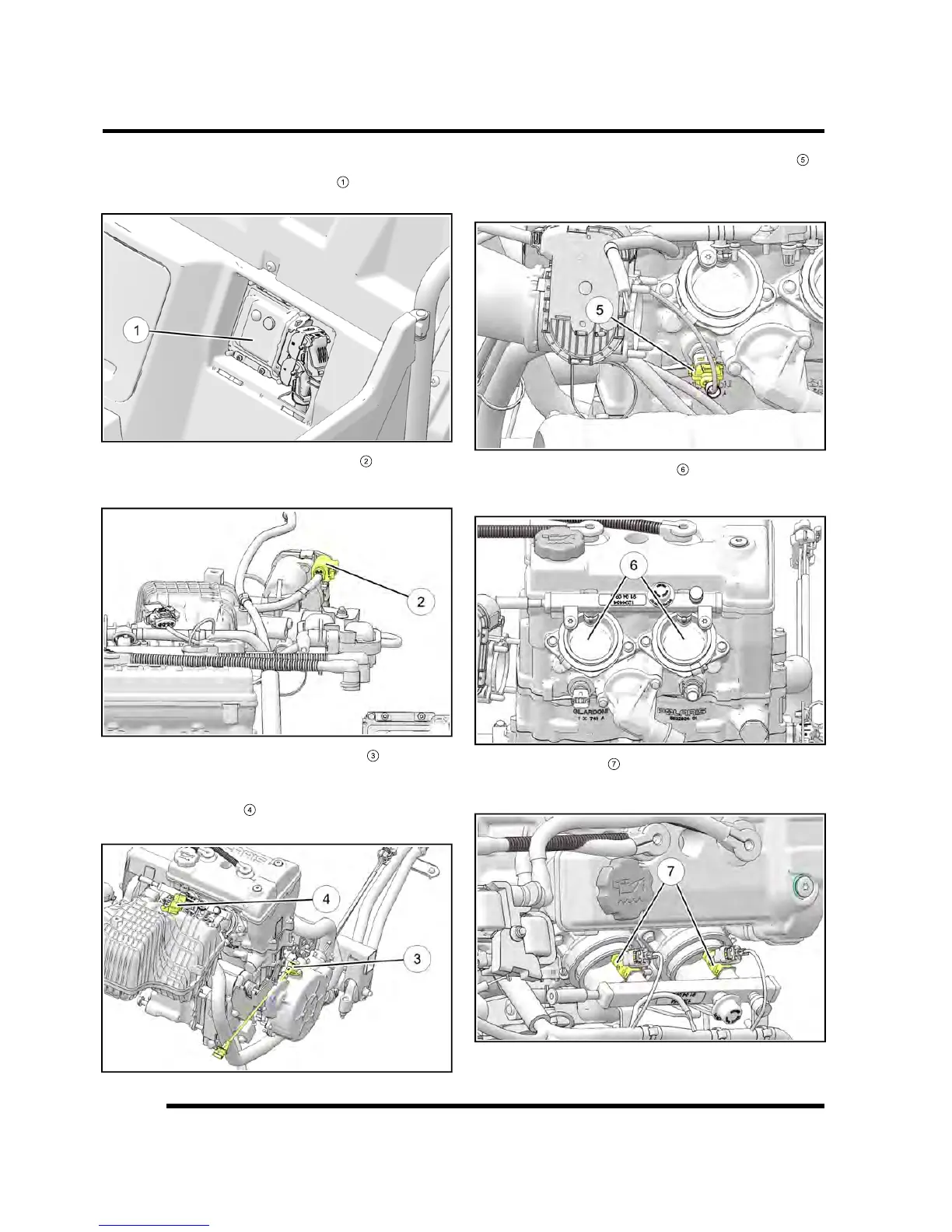

Fuel System Component Locations
Electronic Control Unit (ECU)
1
Located behind the driver’s seat
Electronic Throttle Control (ETC)
2
Located on the throttle body before the intake
manifold
Crankshaft Position Sensor (CPS)
3
Located on top of the stator cover
Temperature and Manifold Absolute Pressure
(TMAP) Sensor
4
Located on top of the intake manifold
Engine Coolant Temperature (ECT) Sensor
5
Located right by the thermostat housing. The
sensor can be accessed by removing the intake
manifold.
Throttle Body Assembly
6
Located between the intake duct and the intake
manifold.
Fuel Injectors
7
Located on the top of the intake manifold, retained
by the fuel rail.
FUEL SYSTEM
