8.14

9925723 R01 - 2015 RZR 900 Service Manual

Upper Steering Shaft Installation

NOTE: If steering wheel was removed, follow this

procedure to ensure the upper steering shaft is

properly positioned on the power steering stub

shaft.

CAUTION

Striking the steering wheel or steering shaft can

permanently damage the EPS unit and cause a Power

Steering Fault.

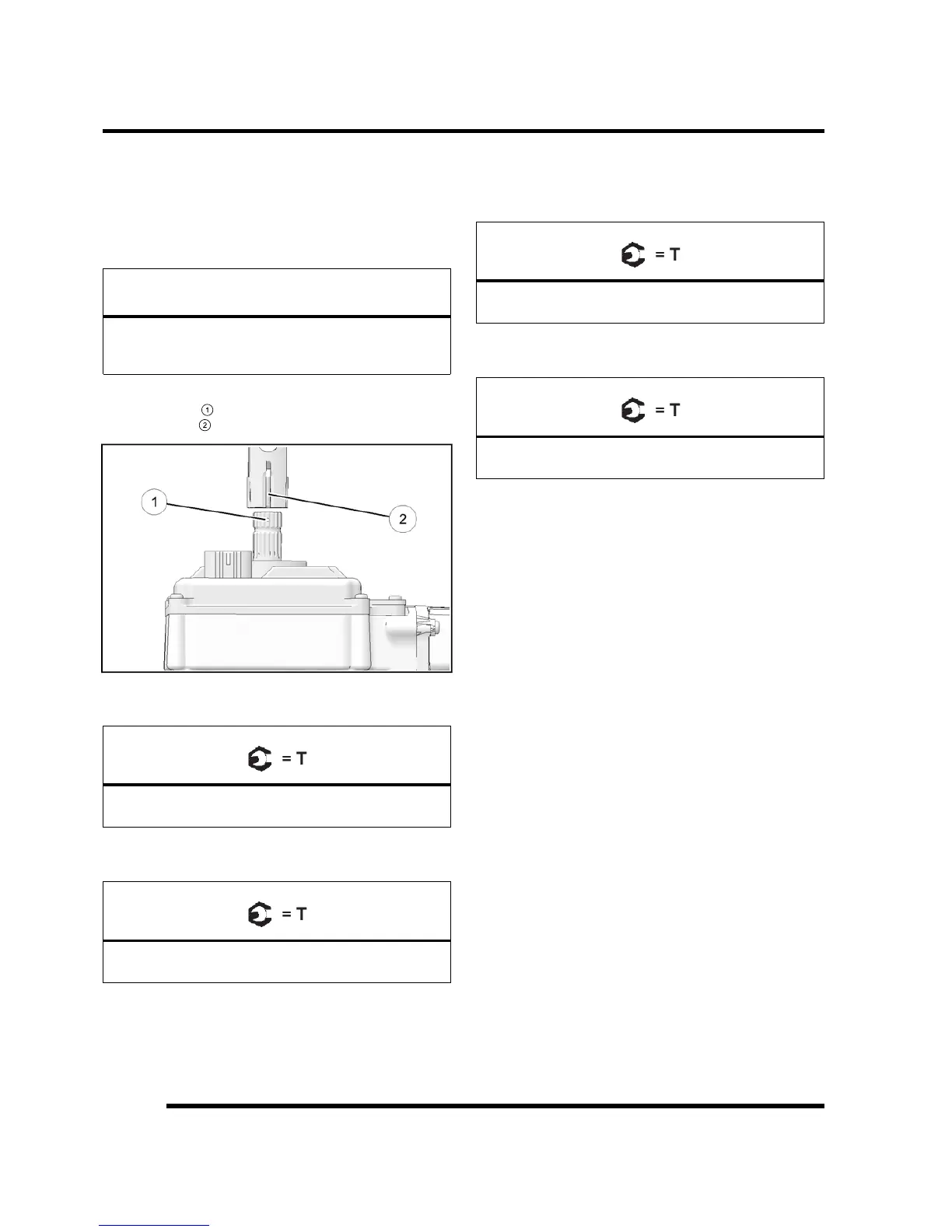

1. Install the upper steering shaft and align the skip-

tooth spline

on the power steering stub shaft with

the opening

in the upper steering shaft.

2. Install the pivot tube and torque fasteners to

specification.

Pivot Tube Fasteners:

40 ft-lb (54 Nm)

3. Install the tilt shock and torque fastener to

specification.

Tilt Shock Fastener:

7 ft-lb (10 Nm)

4. Be sure the front wheels are pointing straight ahead

and install the steering wheel and retaining nut.

Torque the nut to specification and reinstall the plastic

wheel cover.

Steering Wheel Nut:

65 ft-lbs (88 Nm)

5. Install a new upper steering shaft pinch bolt and nut.

Torque pinch bolt to specification.

Upper Steering Shaft Pinch Bolt:

15 ft-lbs (20 Nm)

6. Reconnect both electrical harnesses onto the power

steering unit. Be sure the connectors snap into place.

7. Reinstall the black plastic cover over the power

steering unit and install the two Torx fasteners.

8. Turn the key switch on and test EPS operation.

STEERING / SUSPENSION
