7.22
9925723 R01 - 2015 RZR 900 Service Manual
© Copyright 2014 Polaris Industries Inc.
FRONT GEARCASE / CENTRALIZED HILLIARD

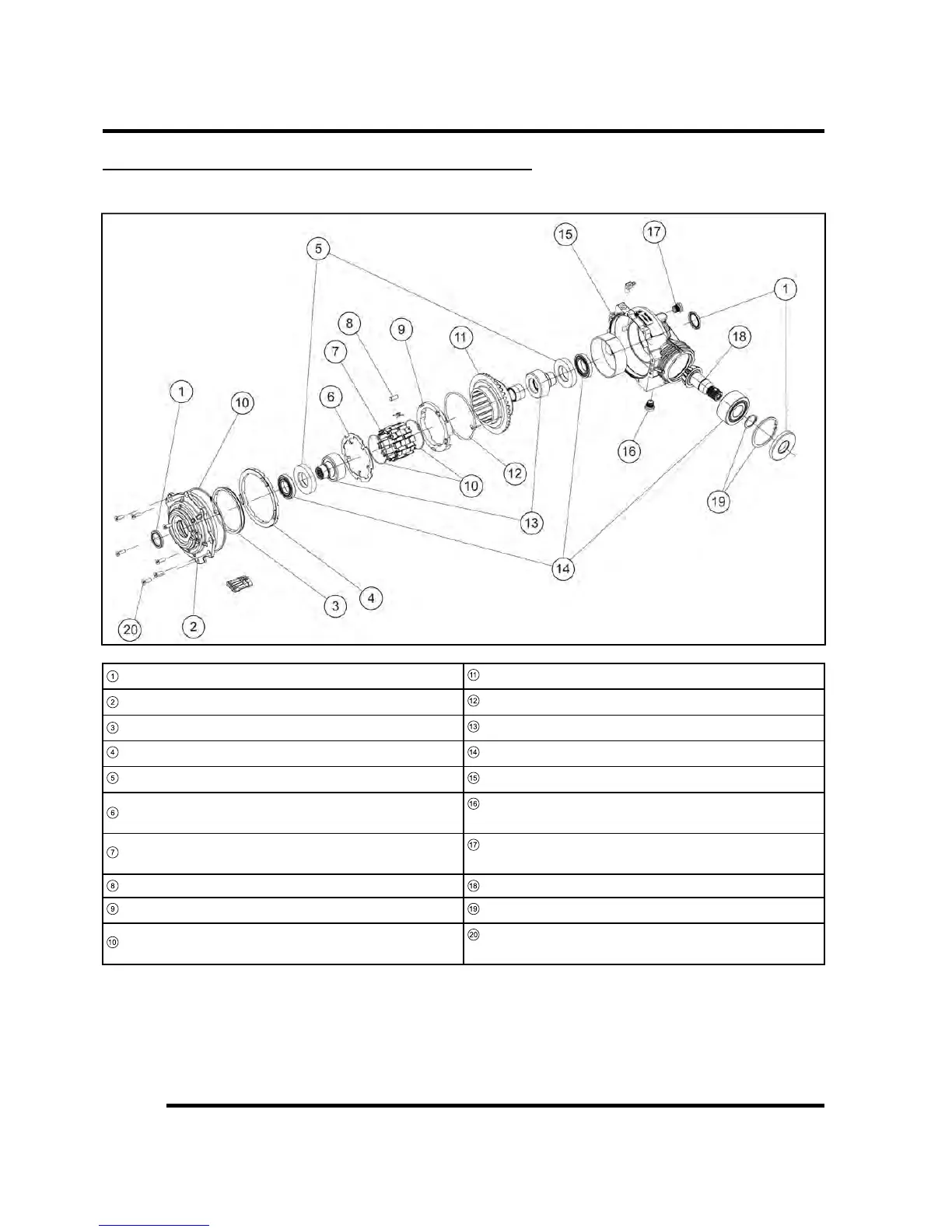

Front Gearcase Assembly View
1
Seal
11
Ring Gear
2
Cover Plate
12
Spring
3
AWD Coil
13
Output Hub
4
Backlash Spacer
14
Bearing
5
Nylon Spacer
15
Gearcase Housing
6
Armature Plate
16
Drain Plug
10 ft-lbs (14 Nm)
7
Roller Cage
17
Fill / Check Plug
10 ft-lbs (14 Nm)
8
Roller
18
Pinion Gear
9
Spring Retainer
19
Snap Ring
10
O-ring
20
Cover Plate Screws
11 ft-lbs (15 Nm)
