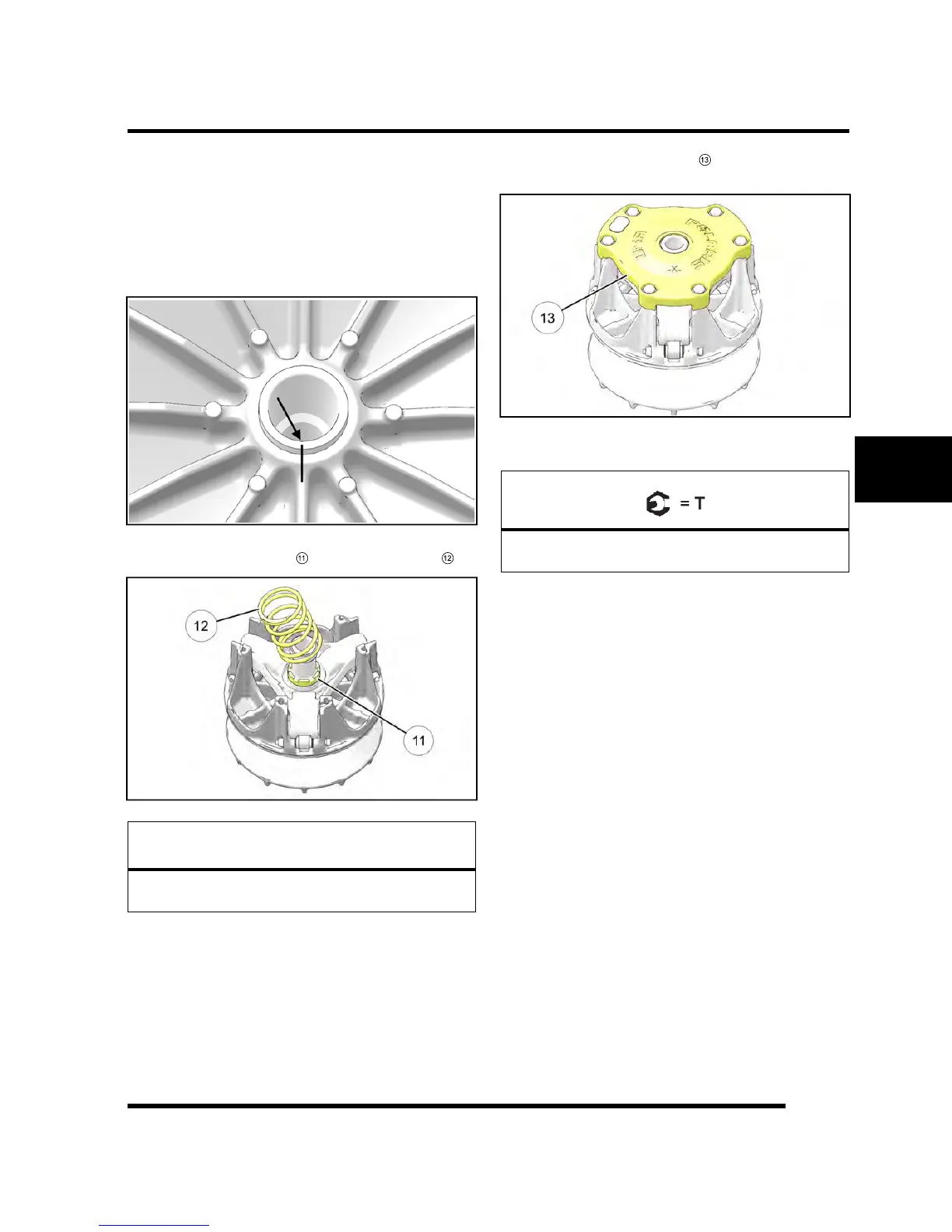

9. After the spider and jamb nut have been torqued,
remove the clutch assembly from the holding fixture
and inspect the alignment marks made during
disassembly.
NOTE: If the marks illustrated below are not in
alignment upon assembly, the clutch will not be in
balance and the drive clutch assembly must be
replaced.
10.Install the limiter spacer
11
and the clutch spring
12
.
CAUTION
DO NOT reassemble the drive clutch without the limiter
spacer. Belt life will be greatly reduced.
11. Install the drive clutch cover
13
. Be sure all alignment
marts are in alignment.
12.Install cover bolts and torque in a cross pattern
evenly to specification.
Drive Clutch Cover Bolts:
8 ft-lb (11 Nm)
