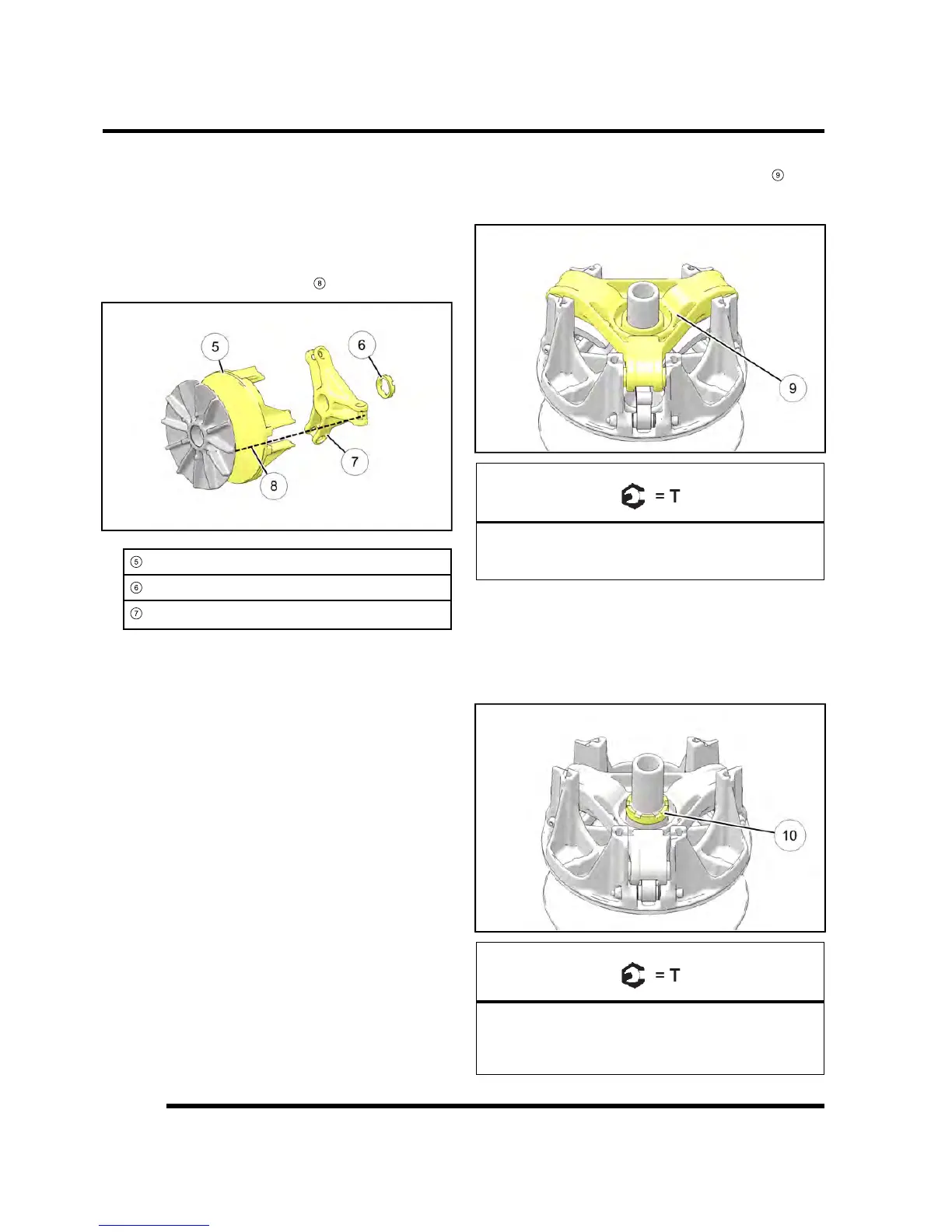

3. Install moveable sheave onto stationary sheave shaft.
Be sure the moveable sheave slides freely on the
spacer.
4. Apply 0.4 mL of Loctite® 620™ and 0.4 mL of
Loctite® 7088™ Primer in 90° apart in vertical stripes
to the shaft threads.
5. Install the spider assembly onto the shaft threads. Be
sure all of the alignment marks
8
are in alignment.
5
Moveable Sheave Asm
6
Jam Nut
7
Spider
6. Install clutch onto holding fixture (PN 2871358-A) and
secure in a bench vice. Tighten the spider
9
using
Clutch Spider Tool (PN 2870341). Torque spider to
specification.
Spider Assembly:
290 ft-lb (393 Nm)
(Apply 0.4 mL Loctite® 620™)
7. Apply 0.1mL of Loctite® 620™ and 0.1mL of Loctite®
7088™ Primer in 90° apart to the threads of the
spider jamb nut. Install spider jamb nut onto
stationary shaft threads.
8. Tighten the spider jam 10 nut using Clutch Spider Nut
Socket (PU-50578). Torque jam nut to specification.
Spider Jamb Nut:
250 ft-lb (339 Nm)
(Apply 0.1 mL Loctite® 620™) in 90° apart to the
threads of the spider jamb nut.
PVT SYSTEM
