Chapter 3: Configuring Your Library
Managing Connectivity
Quantum Scalar i6000 User’s Guide 175

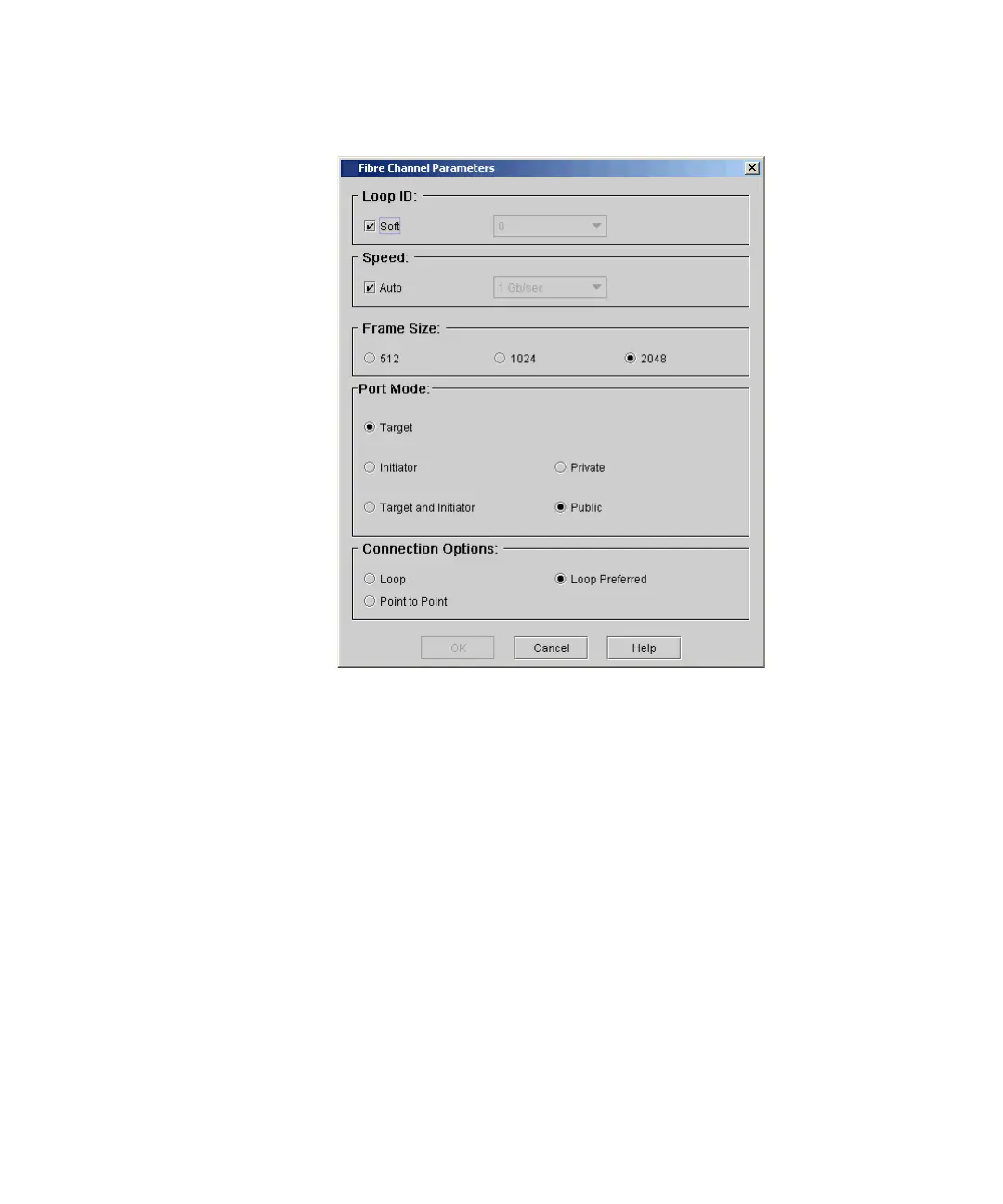

You can configure all settings for an I/O blade connection. The
figure above shows an FC port configured for target mode and a
loop preferred connection.
a In the Loop ID area of the Fibre Channel Parameters dialog
box, repeatedly selecting Soft acts as a toggle, checking and
clearing the box. If the box is not checked, you can click a hard
loop ID (within the range from 0 to 125) from the drop-down
list. Some operating systems require hard ID settings. Consult
your service representative before making changes to this
setting.
b Select Auto to automatically set the interface speed. To
configure the speed manually, uncheck the Auto check box and
use a setting from the drop-down list.
c FC Frame Size is specified by each receiving node and need not
match any other node. The frame size is typically set to 2048.
(You can use another frame size if it is required by a particular
software application.)
