Chapter 3: Configuring Your Library
Configuring Fibre Channel I/O Blades
216 Quantum Scalar i6000 User’s Guide

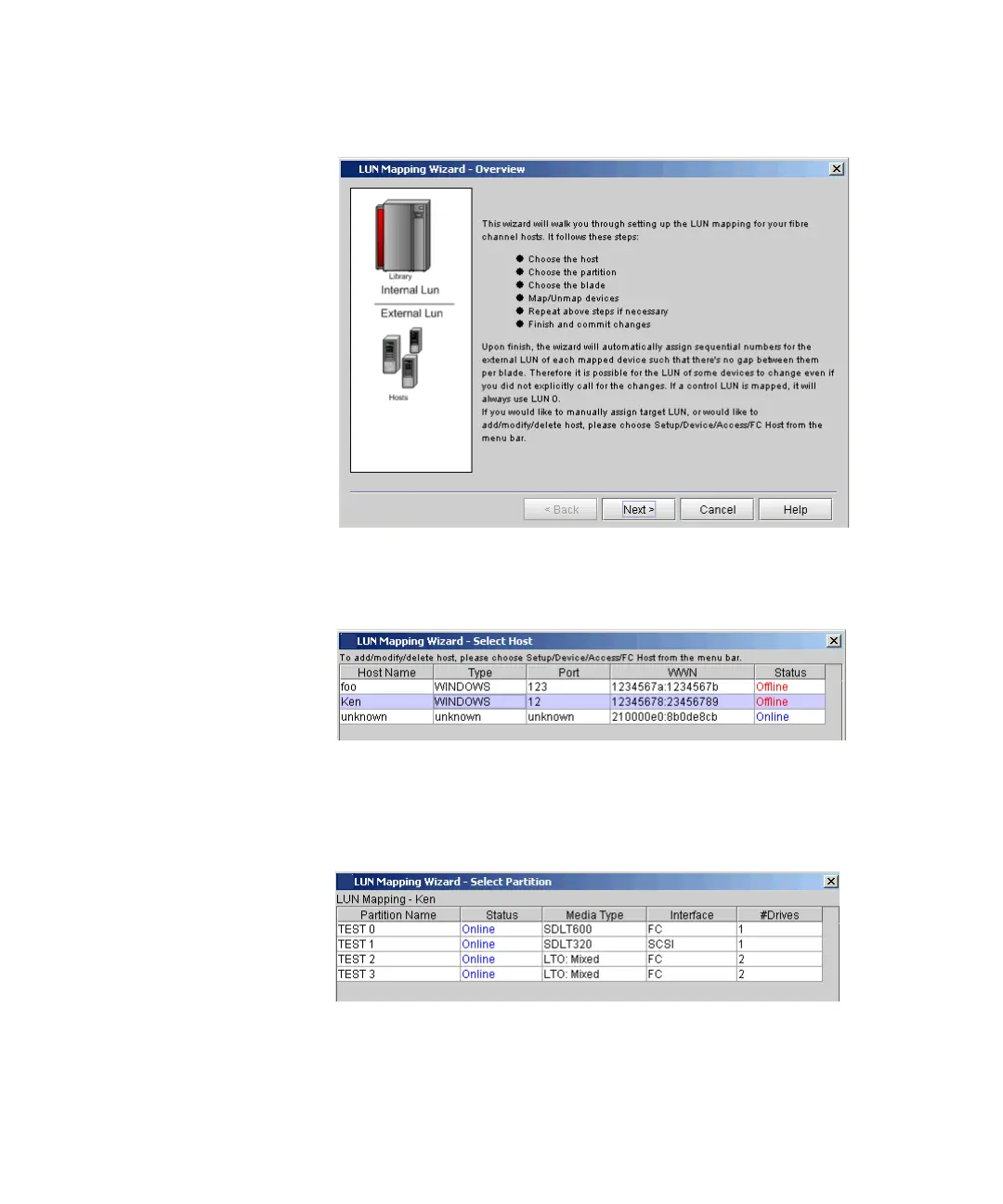

2 Review the LUN Mapping Wizard Overview, then click Next to
continue. The LUN Mapping Wizard – Select Host dialog box
appears. All available hosts are listed on this dialog box.
3 Select a host to configure and then click Next to continue. All
available partitions on the selected host are listed on this dialog
box. The LUN Mapping Wizard – Select Partition dialog box
appears.
4 Select a partition to configure and then click Next to continue. All
available blades on the selected partition are listed on this dialog
box. The LUN Mapping Wizard – Select Blade dialog box appears.
