RFL Electronics IMUX 2000 - Figure 5-2. PC Directly Connected to a Node Using an RS-232 Cable or an RJ-45 Ethernet Cable

Because RFL™ and Hubbell® have a policy of continuous product improvement, we reserve the right to change designs and specifications without notice.
PC
M-DACS
REMOTE
CONNECTOR
MA-235
Comms. I/O
RS-232 CABLE
a. Connectin
g
a PC to the MA-235 Remote Connector.
COM PORT (COM1 . . . . COM8)
NODE
b. Connecting a PC to the optional SAG module.
PC
MA-235
MA810
SAG
M-DACS
ETHERNET PORT
NODE
ETHERNET
NETWORK
RS232
CABLE
RS-232 CRAFT PORT
c. Connecting a PC to the optional NCM module.
PC
MA-235
MA402I
NCM
M-DACS
NODE
R
S
-2
3
2
C
ABLE
RS232
CABLE
d. Connecting a PC to the optional MA-490 with or without the NCM.
PC
MA-235
MA490
1.1
M-DACS
ETHERNET PORT
NODE
ETHERNET
NETWORK
RS232
CABLE
RS-232 CRAFT PORT

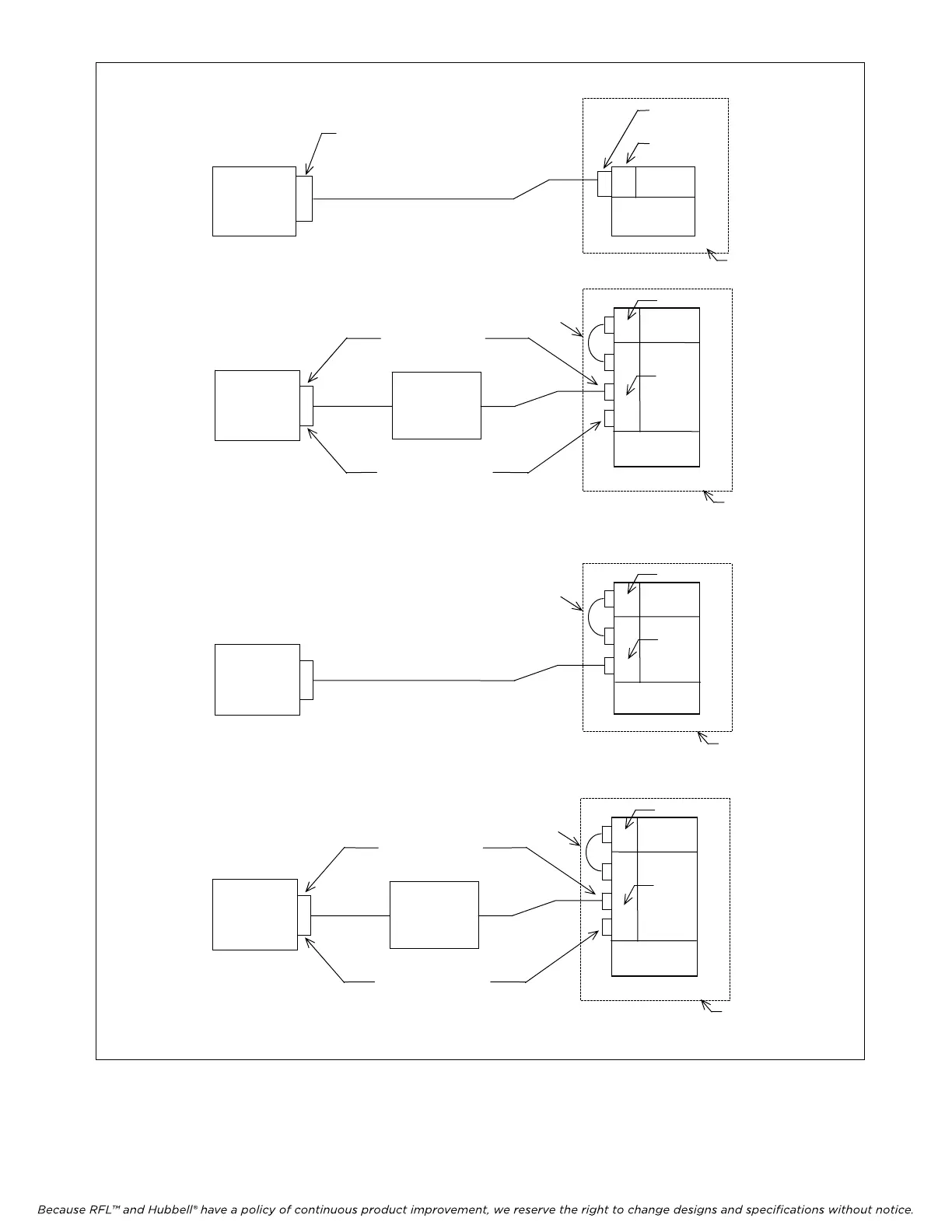

Figure 5-2. PC directly connected to a node using an RS-232 cable or an RJ-45 Ethernet cable
