5.5.3.7.8 CONFIGURATION AND STATUS WINDOW FOR THE VF5C
The Configuration and Status window for the VF5C is shown in Figure 5-28. This is where the user
can view or change VF5C settings. The user can change parameters by making selections in the control
boxes. The actual values appear immediately to the right of the control boxes.When finished with
either viewing or changing the VF5C settings, click on Exit to return to the Display/Change Node
window as shown in Figure 5-16. To view the settings of the VF16B card, first click on VF16B and
then click on V
iew. This will bring you to the View or Change a Card window for the VF16B card as
shown in Figure 5-29.

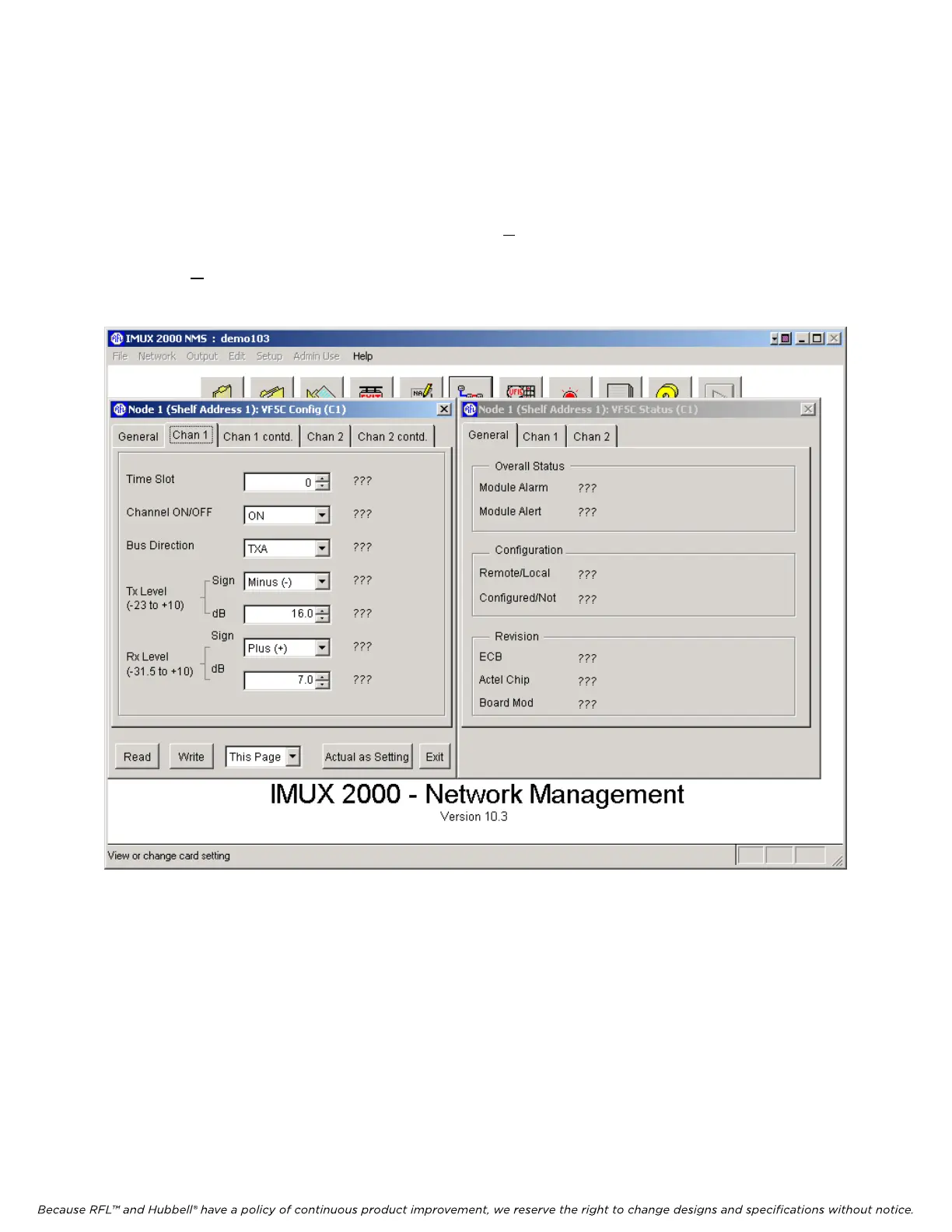

Figure 5-30. Configuration and Status window for the VF5C
