7.2.2.1 INDIVIDUAL CHASSIS
Each M-DACS chassis has two mounting ears, one on each side. Hole sizes and spacings conform with
EIA standards, so the M-DACS can be mounted in any standard 19-inch rack or cabinet. Complete
chassis dimensions are shown in Figure 7-2.
5.25 in.
13.3 cm
19.0 in.
(48.3 cm)
2.25 in.
(5.7cm)
1.5 in.
(3.8 cm)
NOTE: Allow 15 inches (38 cm) behind the rear panel for chassis and interconnect wiring.

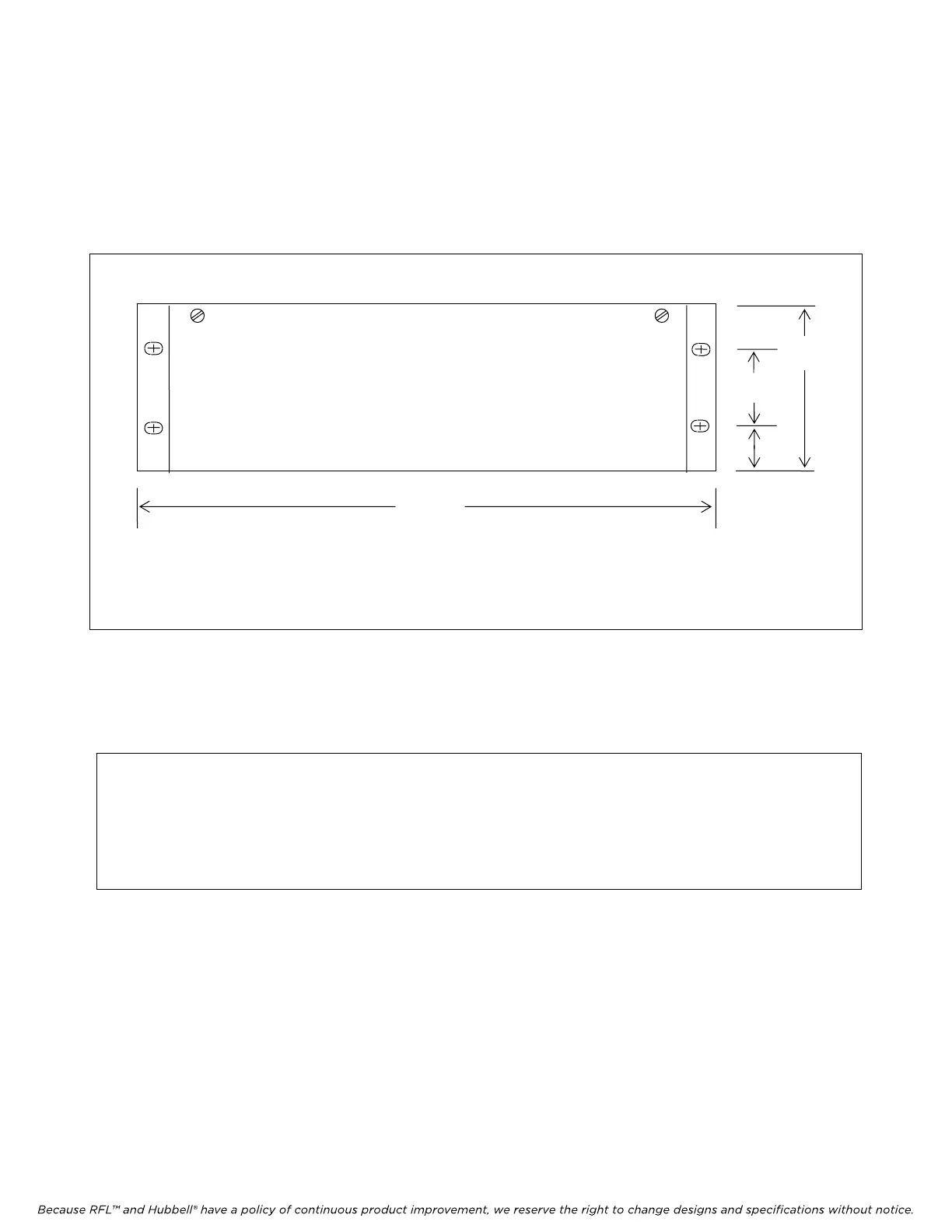

Figure 7-2. M-DACS chassis mounting dimensions
7.2.2.2 INTERCONNECTED CHASSIS INSTALLED IN RACK OR CABINET
CAUTION
M-DACS-T1 RFL Electronics Inc.
Any installation using an enclosed cabinet with a swing-out rack must be securely
fastened to the floor. This will prevent the cabinet from falling forward when the rack is
moved outward.
M-DACS equipment mounted in racks or cabinets at the factory are to be placed in position and then
bolted to the floor or wall, as appropriate, to secure the equipment in place.
The type of hardware used will depend upon the particular surface to which the rack or cabinet is being
mounted. Because of this, mounting hardware is not supplied with the rack or cabinet.
October 25, 2004 7-4 (973) 334-3100
