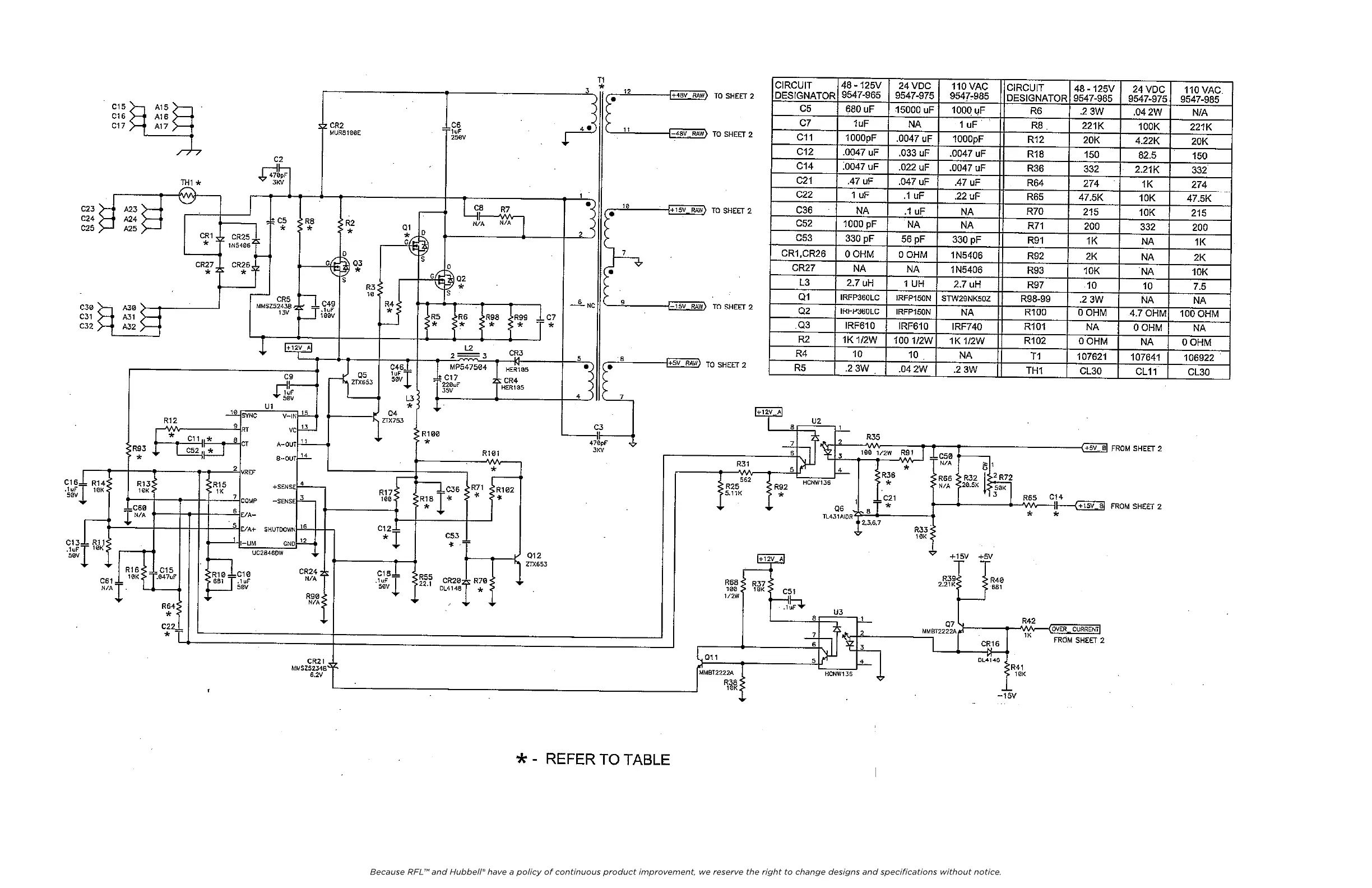

Figure 9-2. Schematic, IMUX 2000 Power Supply, 24Vdc 48/125 Vdc and 120 Vac High Power

(Drawing No. B-107454-4-H, Sheet 1 of 3)

M-DACS-E1 RFL Electronics Inc.

August 7, 2012 9-15 (10-16 Blank) (973) 334-3100
