2.4 M-DACS CHASSIS, FRONT-PANEL SWITCHES, INDICATORS, AND
JACKS
Figure 2-27 is a front view of the IMUX 2000 M-DACS with its front door open. The main power
supply module, The DACS module, and the CM4 common module are expanded to show the location
of all front panel switches, indicators, and jacks. Functional descriptions of these switches, indicators,
and jacks appear in Tables 2-14 through 2-23. The numbers in the Item columns of these tables refer to
the numbers in the boxes shown in Figure 2-27.
M-DACS-T1 RFL Electronics Inc.
IMUX 2000 M-DACS SHELF
CHANNEL
MODULES
CM4 COMMON MODULE
MAIN POWER
SUPPLY MODULE
POWER
NORMAL
ALERT
ALARM
POWER SUPPLY
MODULE FAIL LED
FRONT PANEL

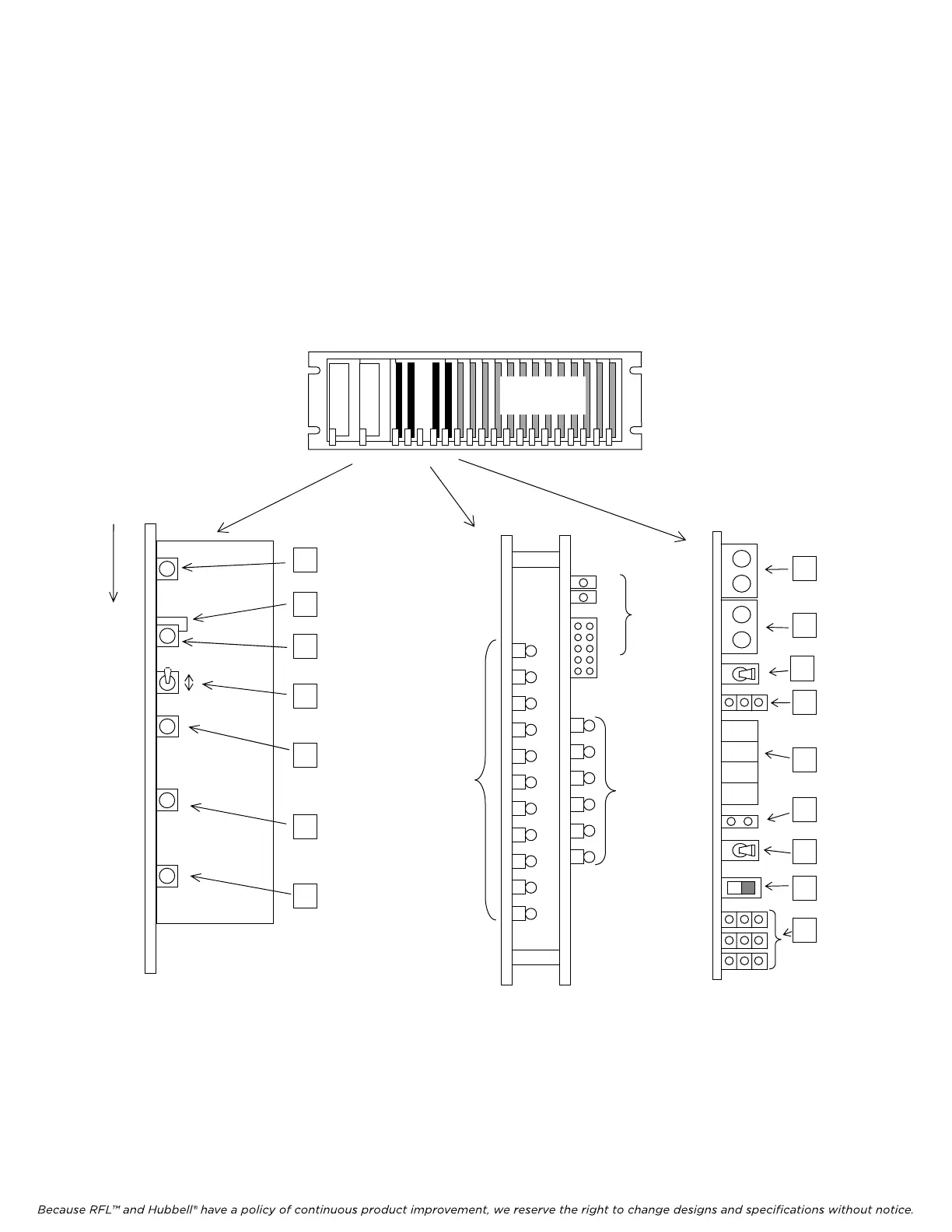

Figure 2-27. Multiplexer Front-panel switches,
indicators, and jacks
LABELS
1
POWER LED
(VISIBLE WITH
DOOR CLOSED)
NORMAL LED
(VISIBLE WITH
DOOR CLOSED)
ALERT LED
(VISIBLE WITH
DOOR CLOSED)
FAIL LED
(VISIBLE WITH
DOOR CLOSED)
4
6
5
7
3
ALARM CUT-OFF
SWITCH (ACO SWITCH)
DIS
EN
8
9
11
12
13
14
15
16
Equip Mon Equip Mon Group CONFIG FUNCTION ON SET R-MAIN EXT ERR FRM T1 Out T1 In BRD OK OFF NEXT C-AUTO INT LPBK BPV ACTIVE L-SLAVE LOOP TX RX
M
O
DE
T1 OUTPUT
TEST JACKS
T1 INPUT
TEST JACKS
GROUP SWITCH
ACTIVITY
INDICATORS
4-CHARACTER
FUNCTION
DISPLAY
ON/OFF LED
INDICATOR
SET/NEXT
SWITCH
3-POSITION
MODE SLIDE
SWITCH
FRONT PANEL
LED INDICATORS
PROCESSOR
TEST
POINTS
See Table
2-8
FRAMER
TEST
POINTS
See
Table
2-9
DS1
DS2
J3
2
J2 JUMPER
SWITCH
See
Table 2-8
10
DACS MODULE
FRAMER
