8.2.5 TYPICAL CM4 LOOPBACK PROCEDURE
The following example shows how to use the loopbacks built into the CM4 to isolate a failure on a
point-to-point T1 system (Figure 8-2).
a. Testing from Location 1 to Location 2.
b. Testing from Location 2 to Location 1.
T1
CIRCUIT
LOCATION 2
CM4
D/I-A or B
VOICE
AND
DATA
CIRCUITS
CM4
EQUIPMENT
LOOPBACK
DSX-1
MANUAL
LOOPBACK
(PATCHCORD
OR JUMPER
CONNECTOR)
DACS
Module
LOCATION 1
CM4
D/I-A or B
VOICE
AND
DATA
CIRCUITS
CM4
LINE
LOOPBACK
DSX-1
MANUAL
LOOPBACK
(PATCHCORD)
DACS
Module
CM4
PAYLOAD
LOOPBACK
T1
CIRCUIT
LOCATION 2
CM4
D/I-A or B
VOICE
AND
DATA
CIRCUITS
CM4
LINE
LOOPBACK
DSX-1
MANUAL
LOOPBACK
(PATCHCORD)
DACS
Module
CM4
PAYLOAD
LOOPBACK
MANUAL
LOOPBACK
(PATCHCORD
OR JUMPER
CONNECTOR)
CM4
EQUIPMENT
LOOPBACK
VOICE
AND
DATA
CIRCUITS
LOCATION 1
CM4
D/I-A or B
DACS
Module
DSX-1

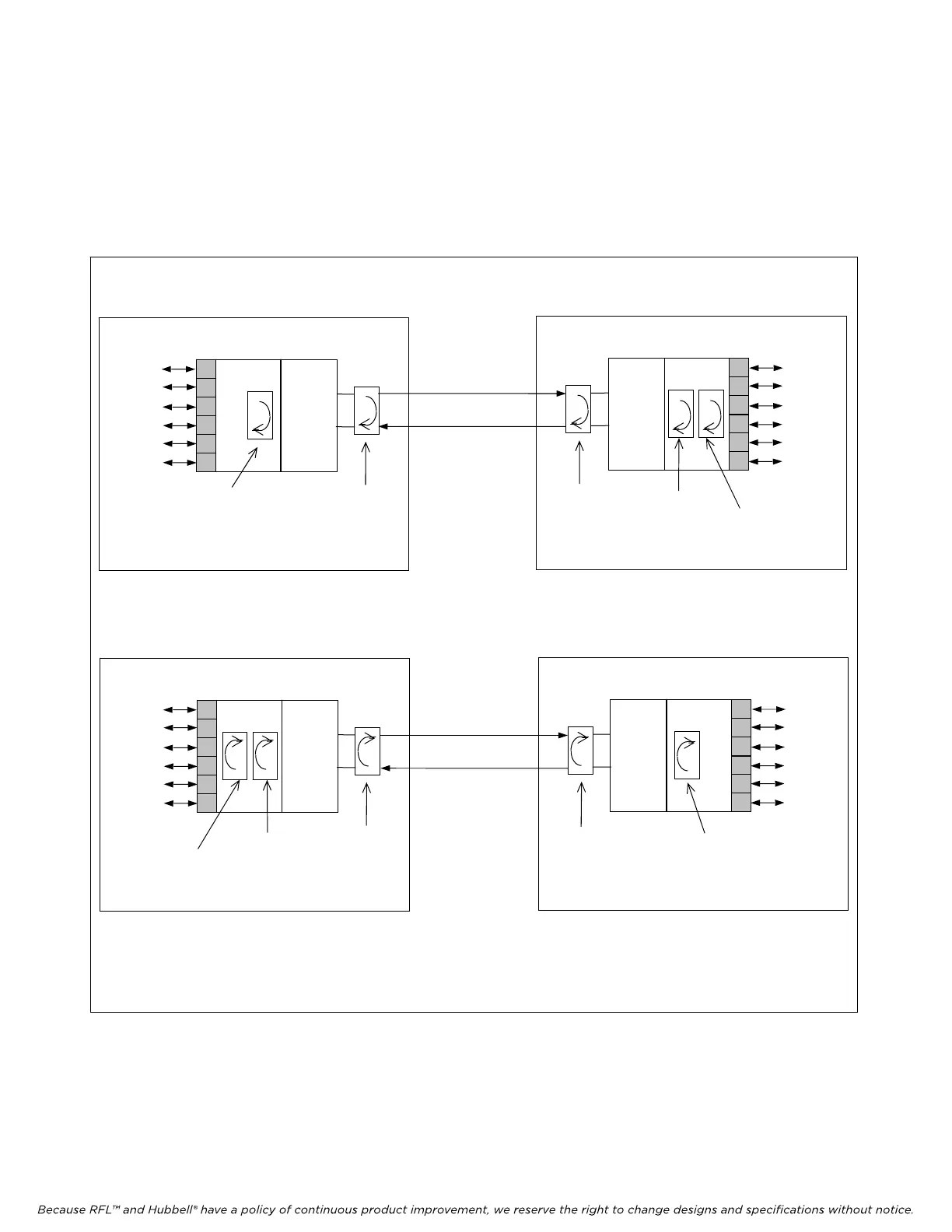

Figure 8-2. Using IMUX 2000 M-DACS T1 loopbacks
